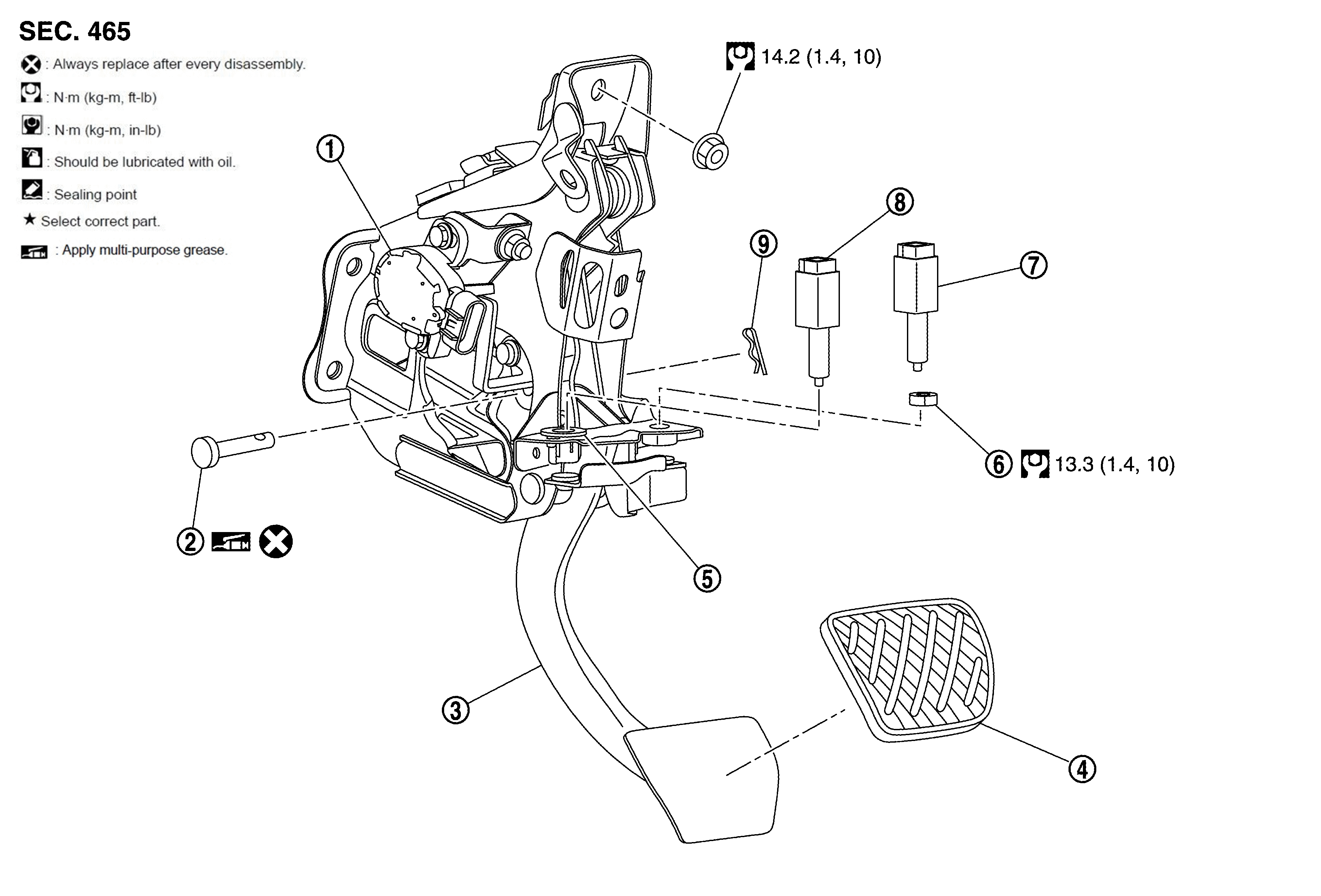

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|

|
Stroke sensor (With pre-crash seat belt)
|

|
Clevis pin
|

|
Brake pedal assembly
|
|

|
Brake pedal pad
|

|
Clip
|

|
Lock nut
|
|

|
Brake pedal position switch
|

|
Stop lamp switch
|

|
Snap pin
|
|
: Apply multi-purpose grease.
|
|
: N.m (kg-m, ft-lb)
|
|
: Always replace after every disassembly.
|
