System Diagram

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

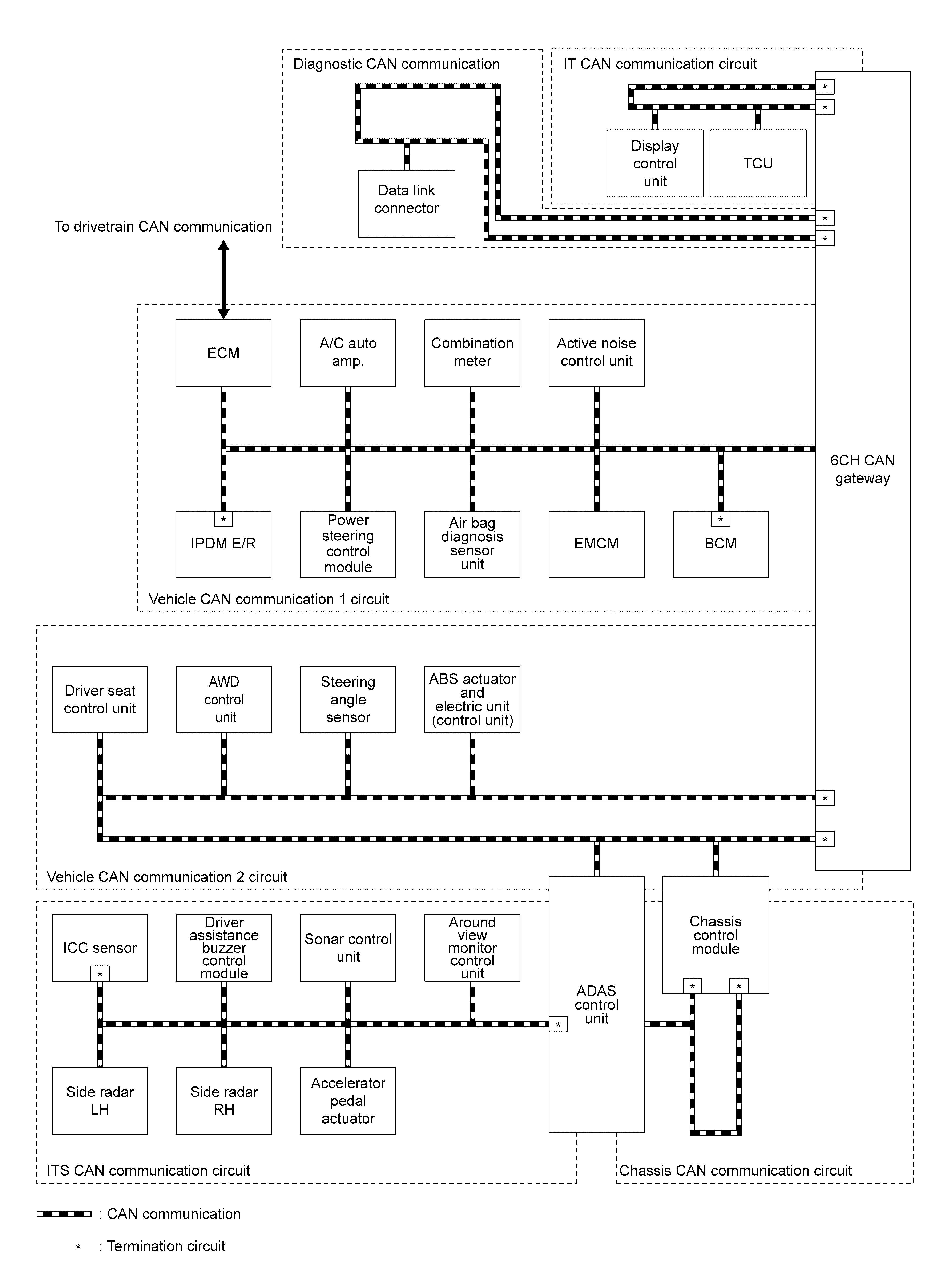

2.0L turbo gasoline engine with blind spot warning

GNSILL0190789-789

Courtesy of NISSAN NORTH AMERICA, INC.

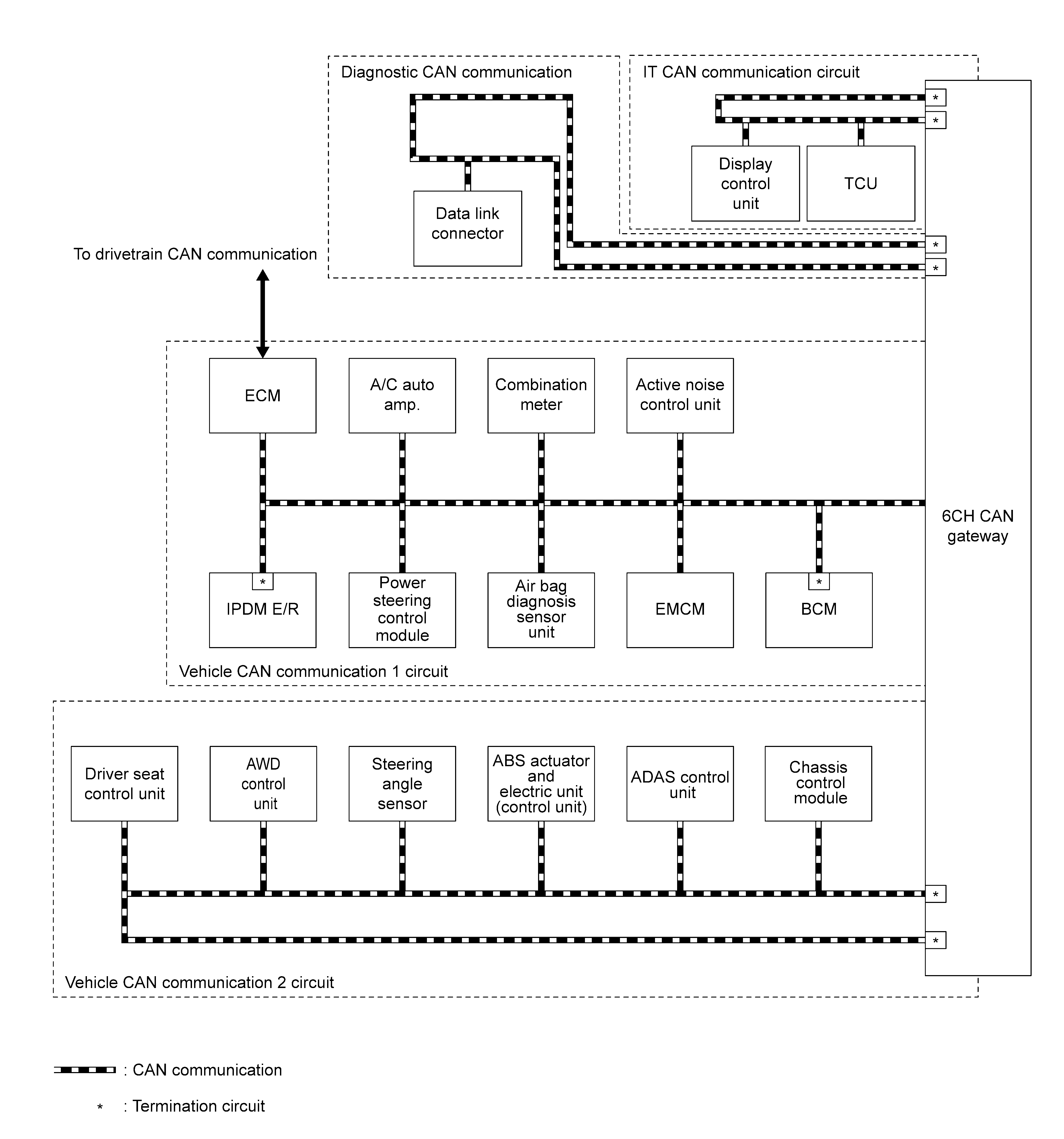

2.0L turbo gasoline engine without blind spot warning

GNSILL0190790-790

Courtesy of NISSAN NORTH AMERICA, INC.

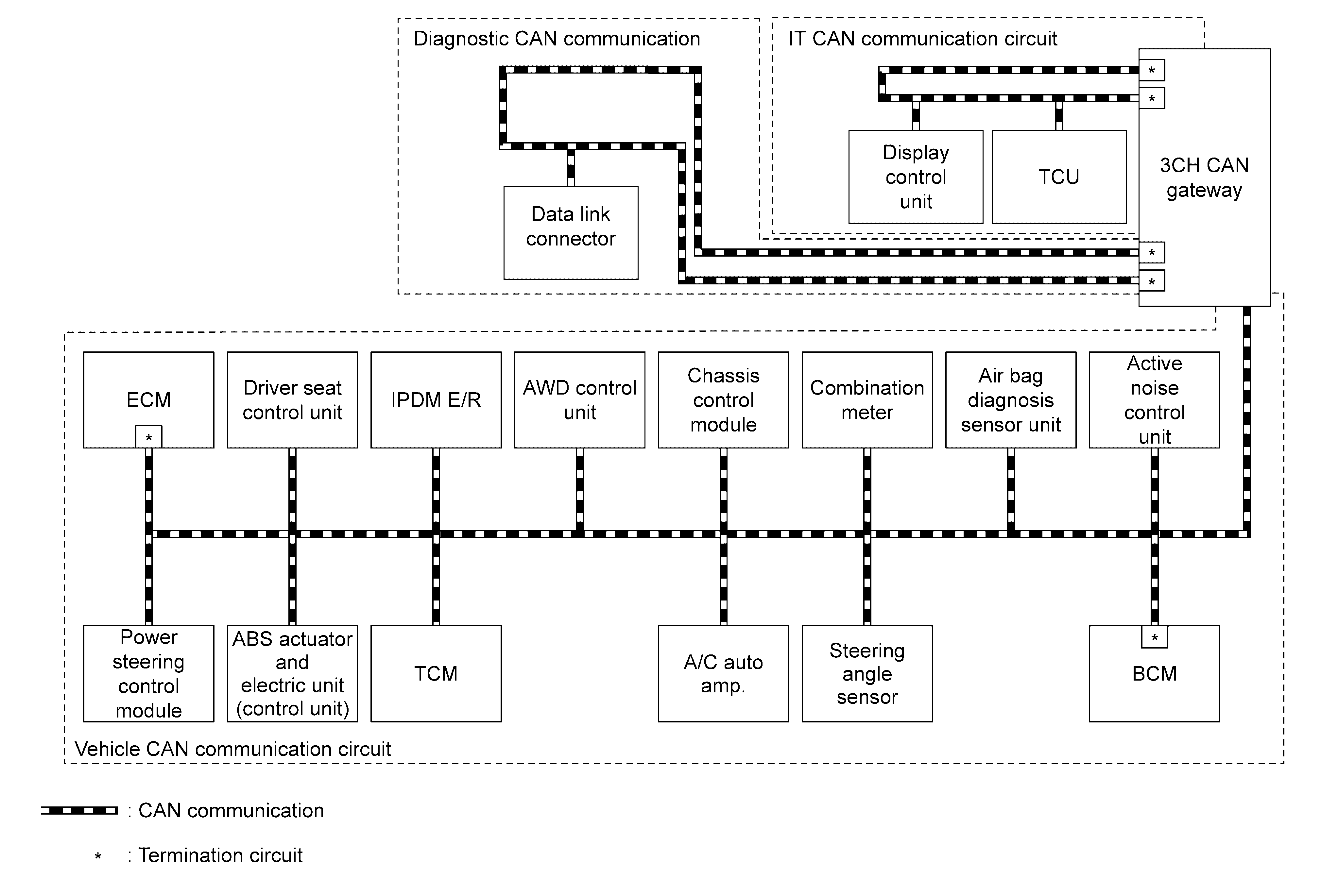

VR30DDTT engine without around view monitor system except with navigation system for Mexico

GNSILL0119782-782

Courtesy of NISSAN NORTH AMERICA, INC.

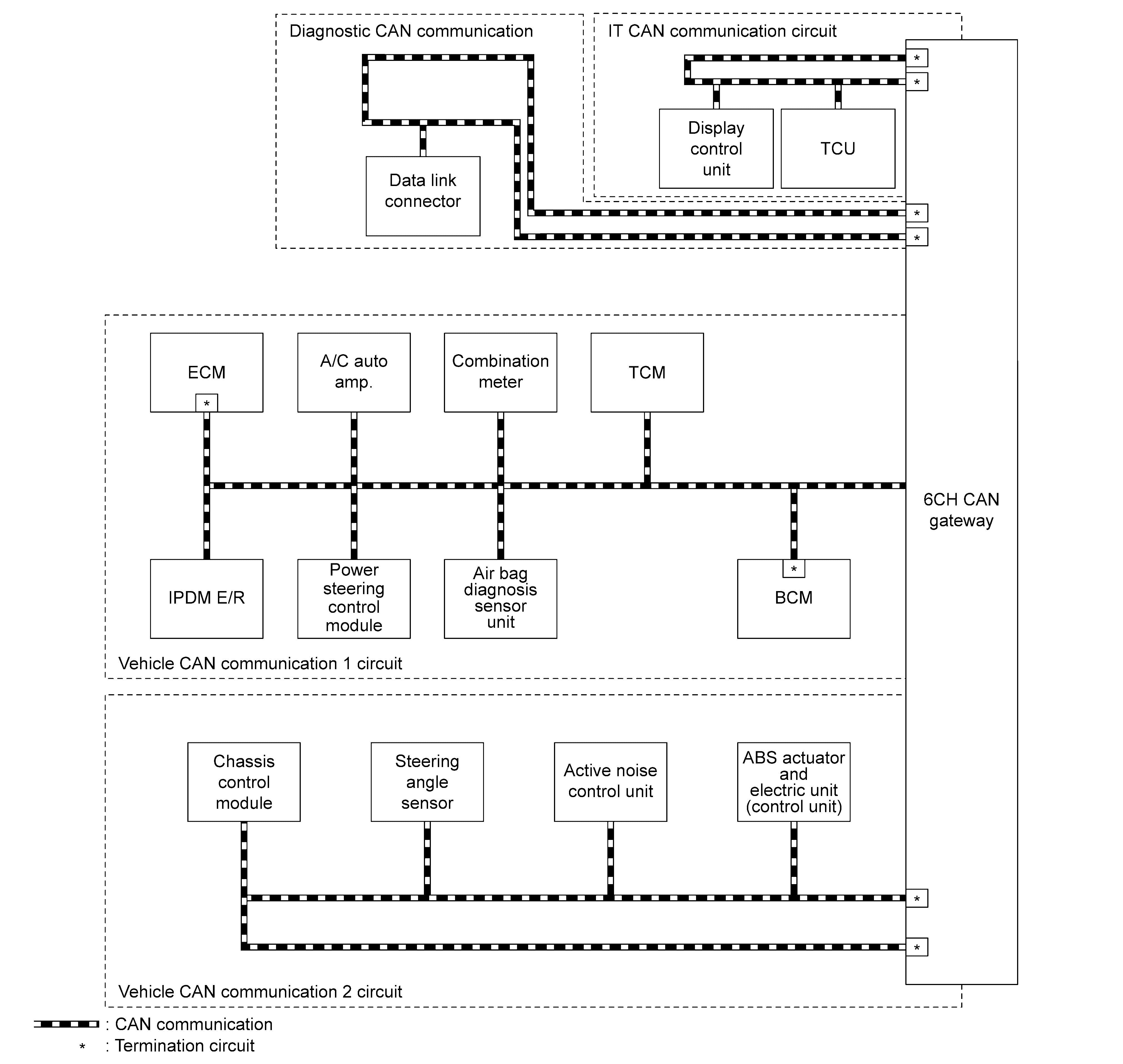

VR30DDTT engine without around view monitor system with navigation system for Mexico

GNSILL0190791-791

Courtesy of NISSAN NORTH AMERICA, INC.

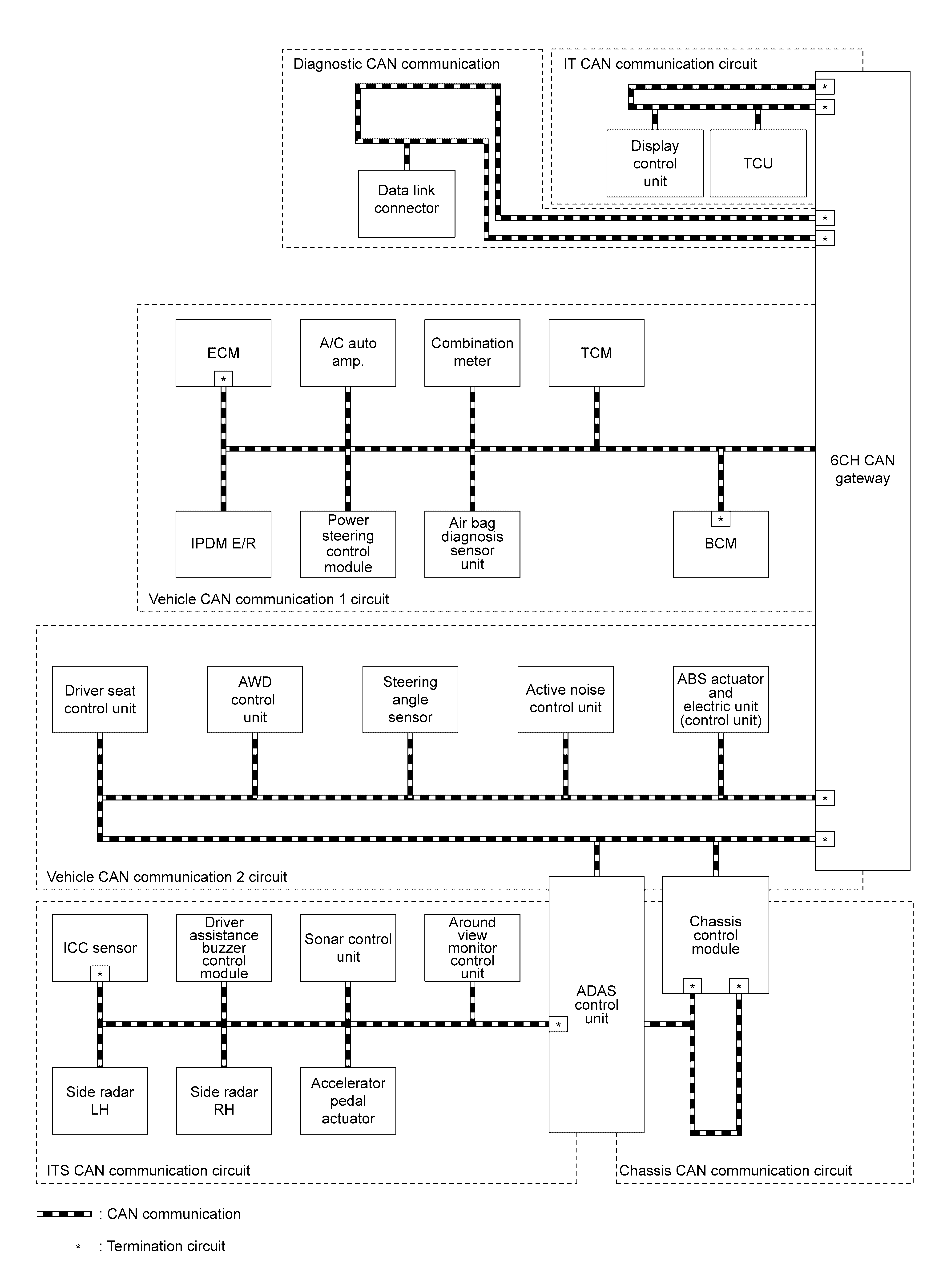

VR30DDTT engine with around view monitor system, without direct adaptive steering system

GNSILL0119783-783

Courtesy of NISSAN NORTH AMERICA, INC.

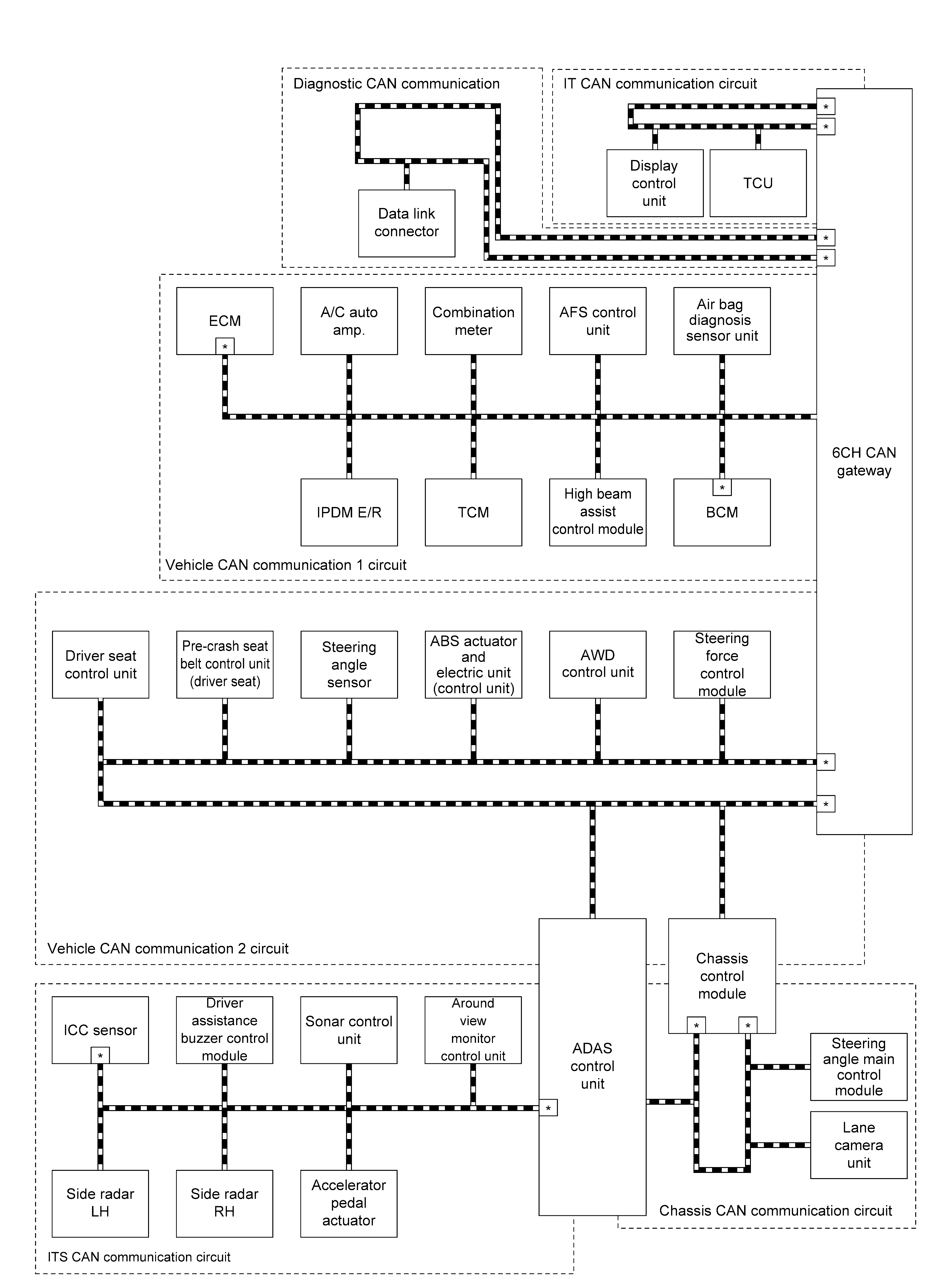

VR30DDTT engine with around view monitor system and direct adaptive steering system (with telematics system or high beam assist system)

GNSILL0190792-792

Courtesy of NISSAN NORTH AMERICA, INC.

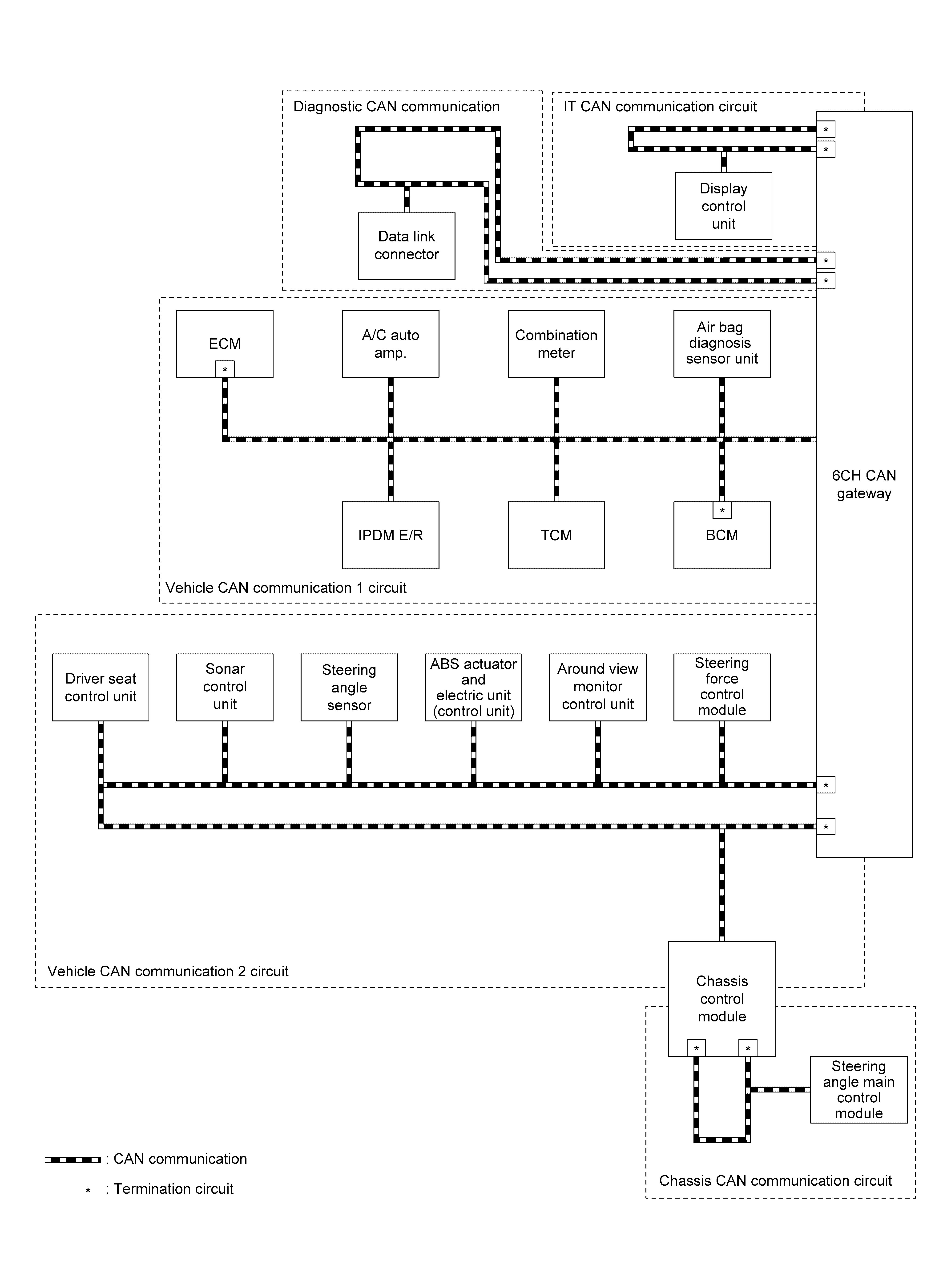

VR30DDTT engine with around view monitor system and direct adaptive steering system (without telematics system and high beam assist system)

GNSILL0190793-793
