Exploded View: Disassembly
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|

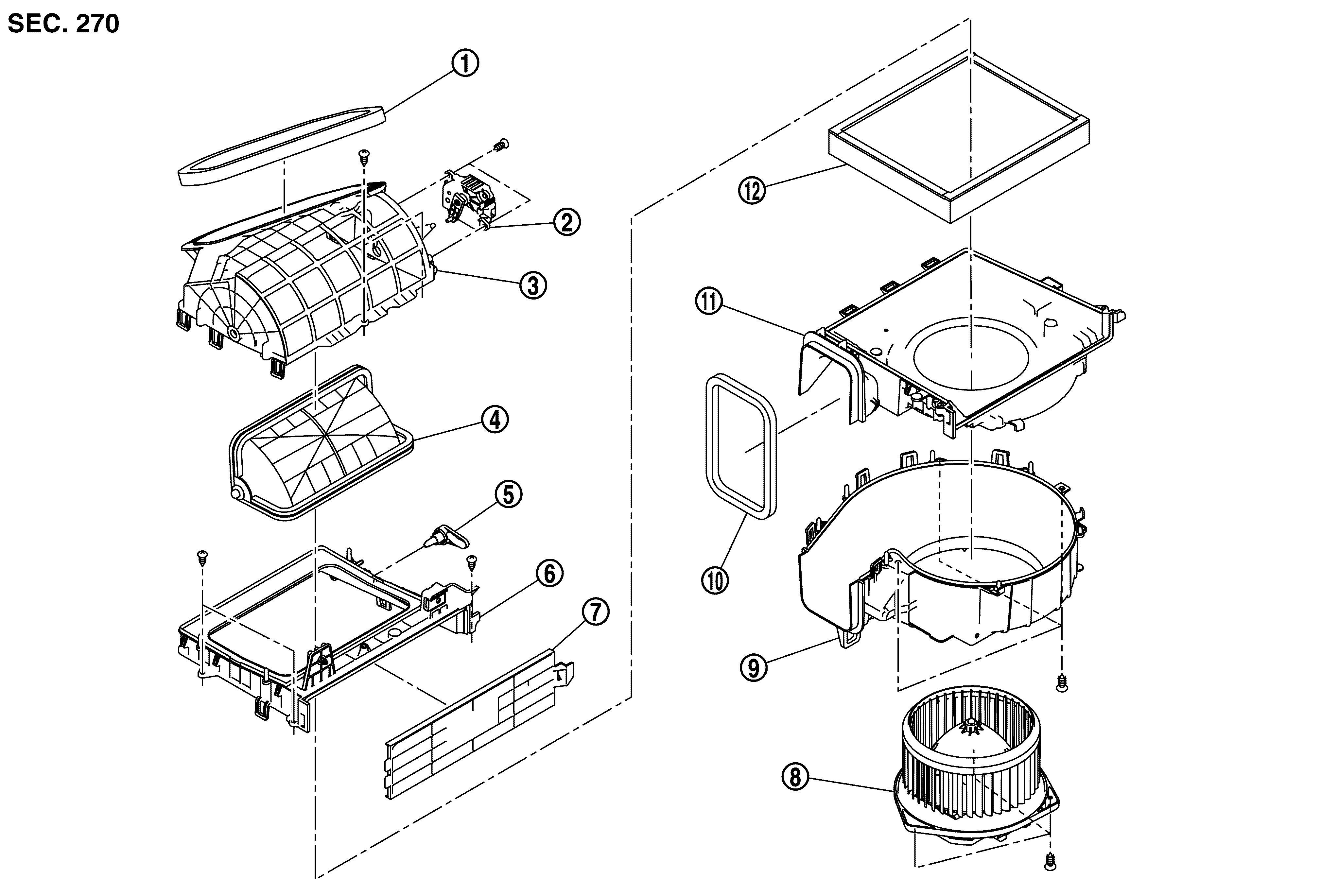

Intake seal
|
|
Intake door motor
|
|
Shutter box upper case
|
|
|
Intake door
|
|
Intake door lever
|
|
Shutter box lower case
|
|
|
Filter cover
|
|
Blower motor
|
|
Intake lower case
|
|
|
Outlet seal
|
|
Intake upper case
|
|
In-cabin microfilter *1
Air conditioner filter *2
|
*1: For North America
*2: For Mexico
