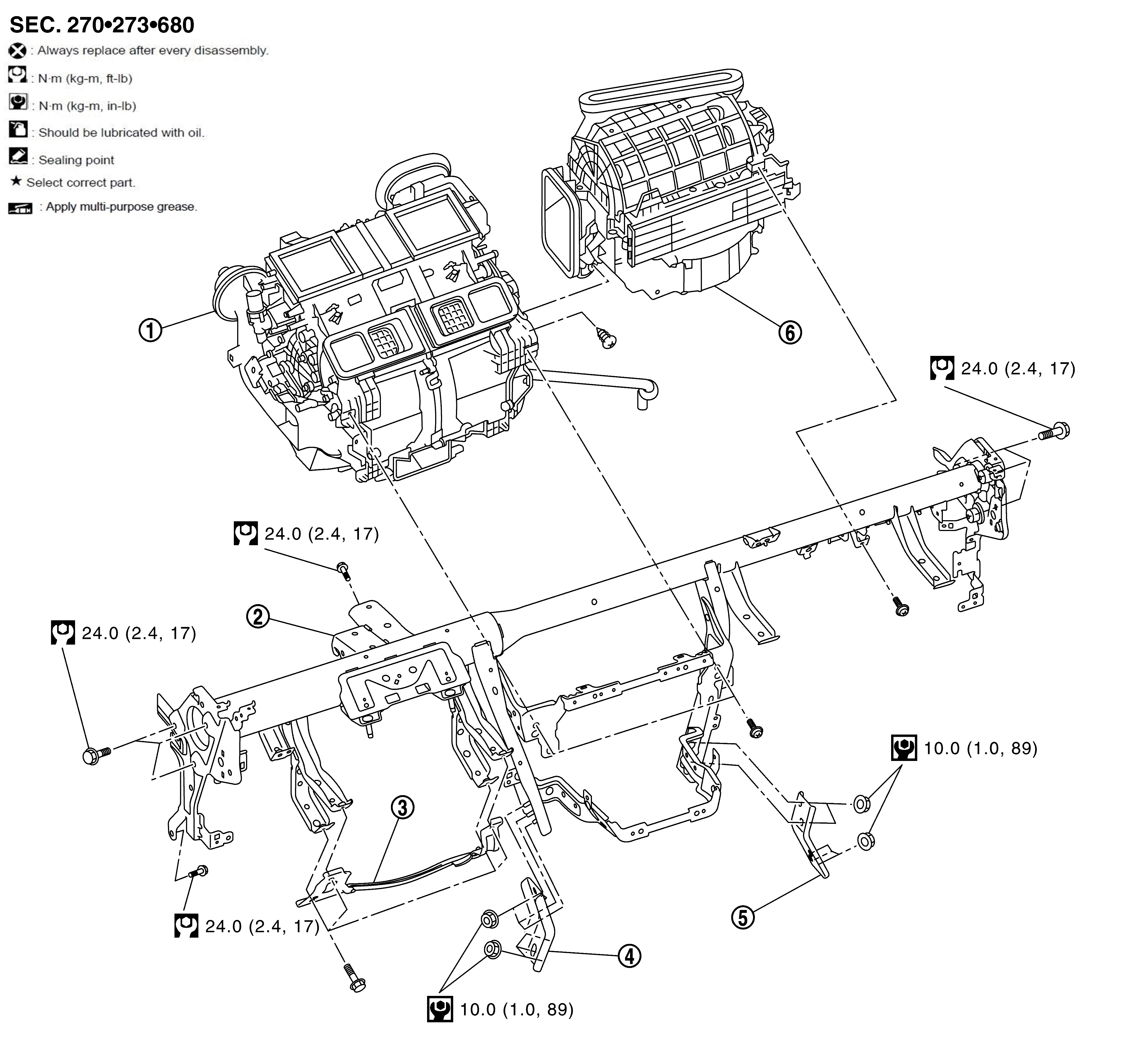

Exploded View: Removal
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Heater & cooling unit assembly
|
|
Steering member
|
|
Knee protector
|
|
|
Instrument stay LH
|
|
Instrument stay RH
|
|
Blower unit assembly
|
|
|
: N.m (kg-m, ft-lb)
|
|
|
: N.m (kg-m, in-lb)
|
