Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove grove box. Refer to Removal and Installation .
  2. Remove steering force control module mounting bolts and move steering force control module to obtain space for work. Refer to Removal and Installation .

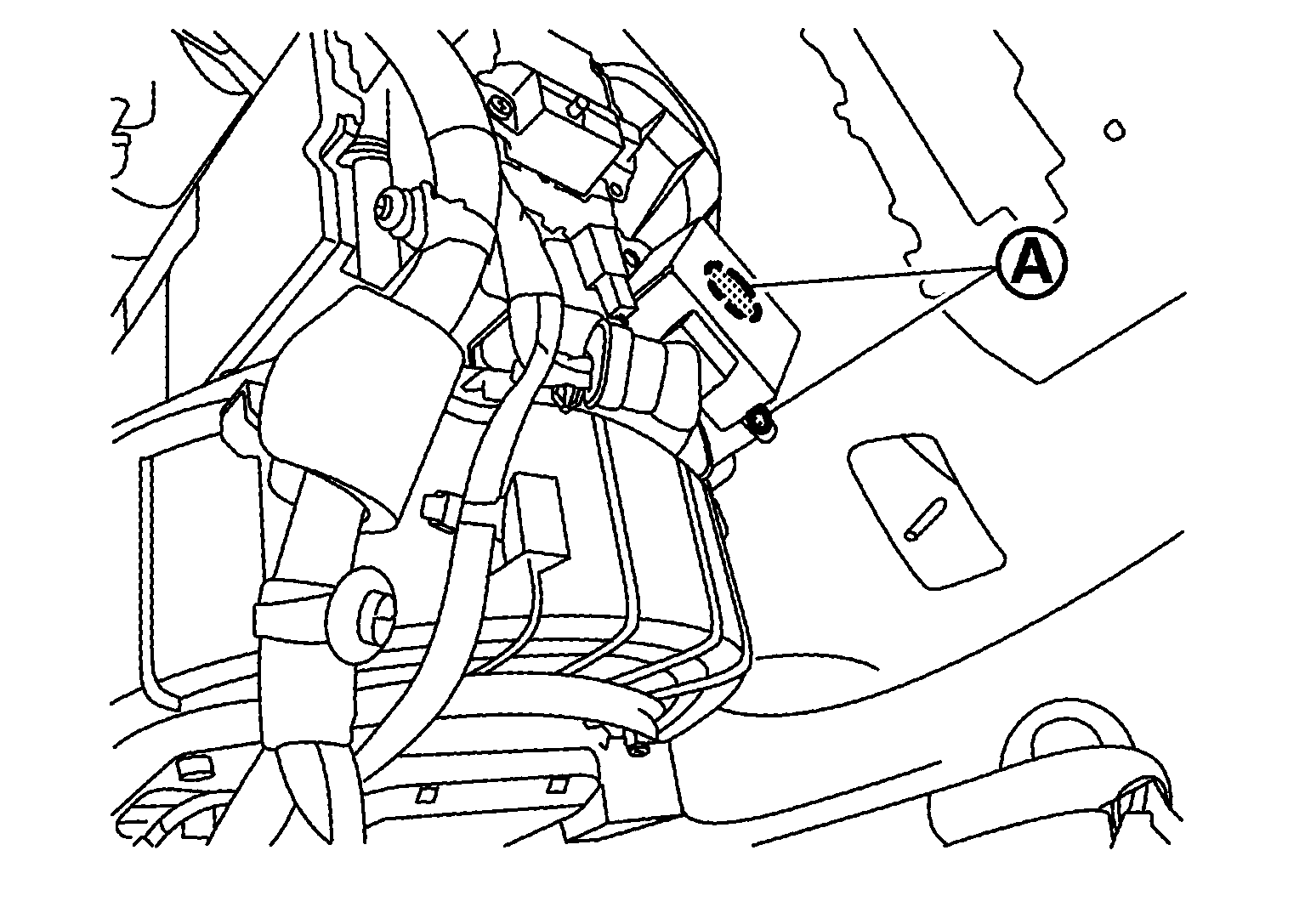

  3. Remove driver assistance buzzer control module mounting screw SYMBOL .
    GNSJSOIA0943Z-943Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect harness connector from the driver assistance buzzer control module.
  5. Remove driver assistance buzzer control module.
