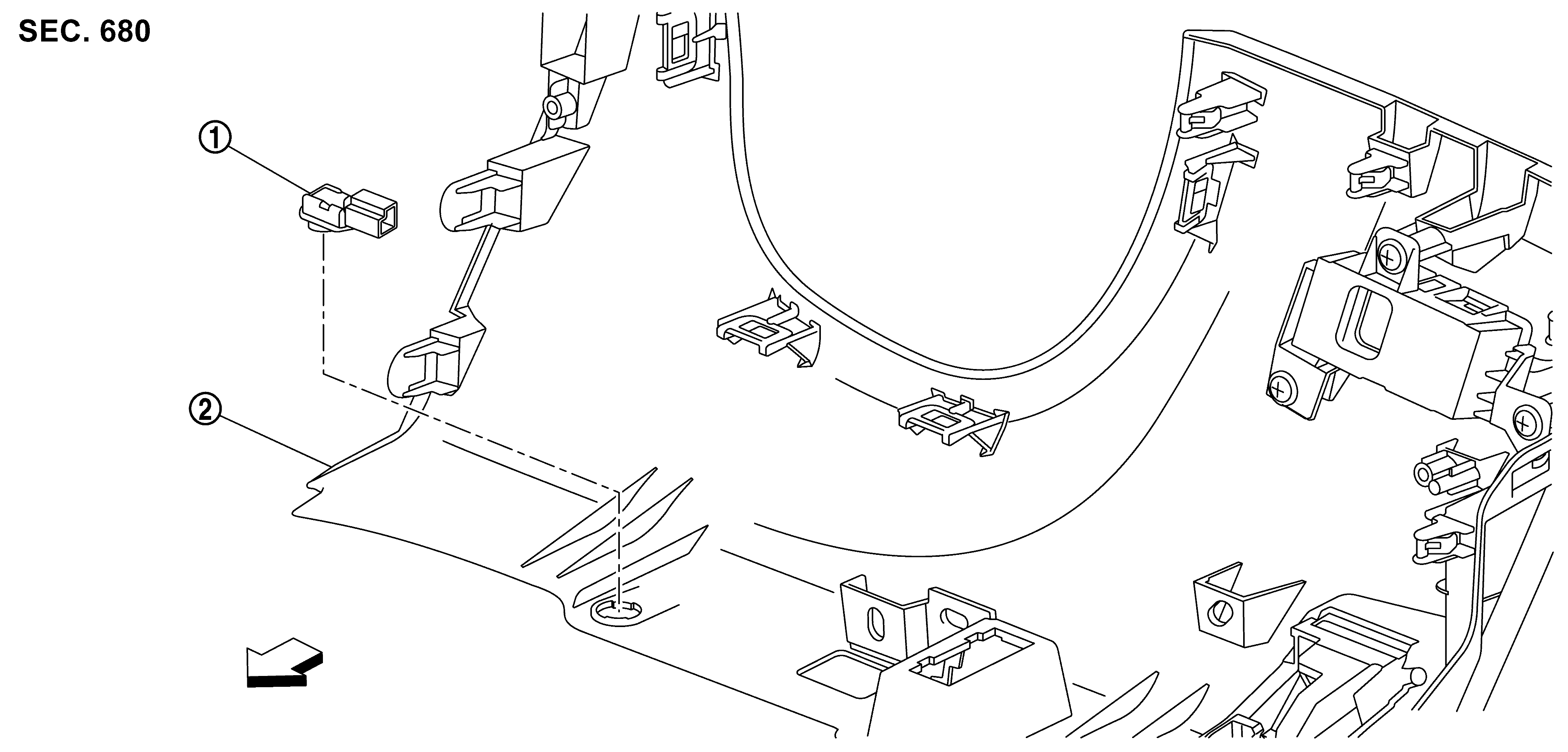

Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

	Foot lamp		Instrument lower panel LH
	: Vehicle front
