Circuit Diagram

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

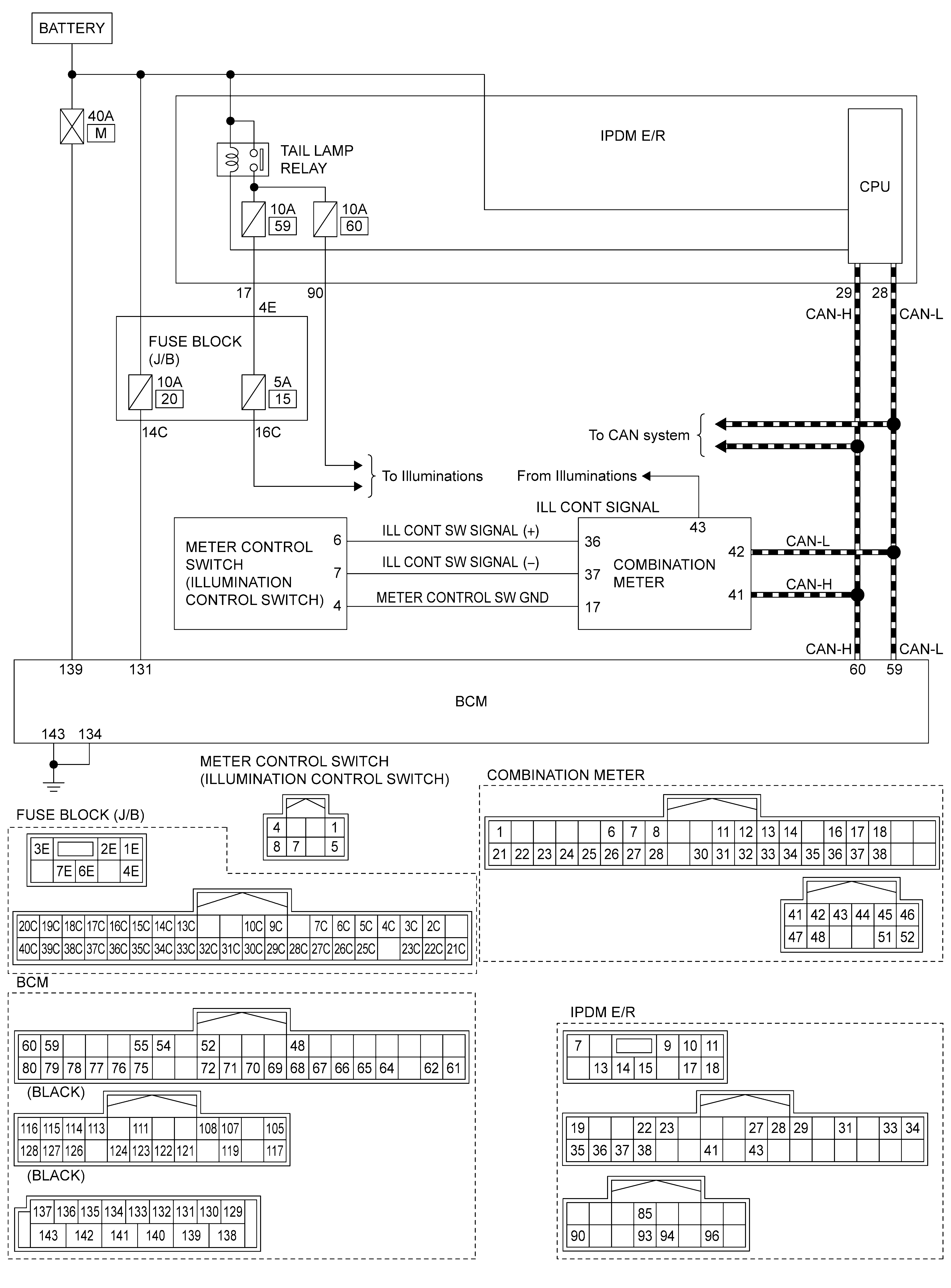

With VR engine

Courtesy of NISSAN NORTH AMERICA, INC.

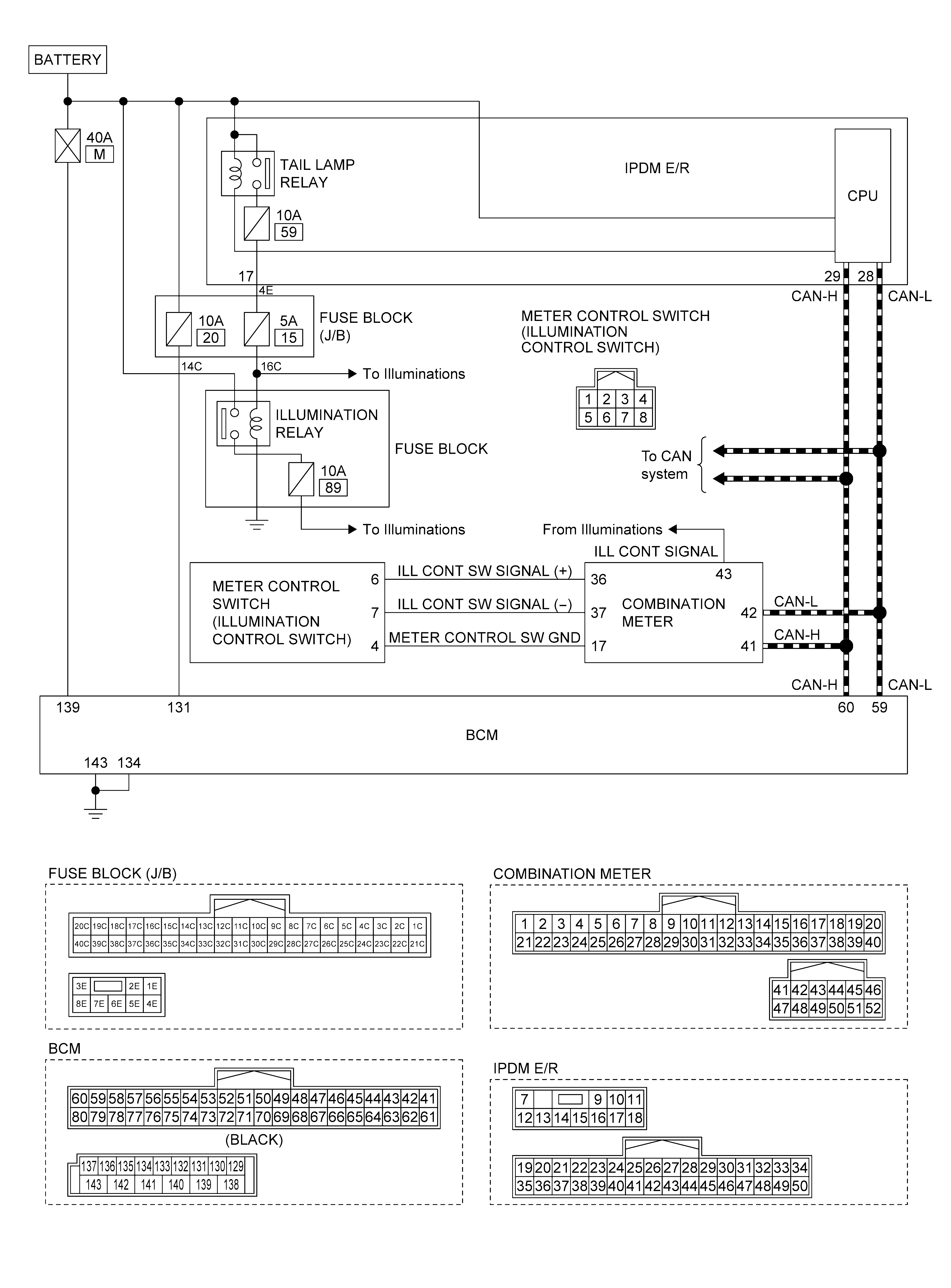

With 2.0L turbo gasoline engine

Courtesy of NISSAN NORTH AMERICA, INC.
