For VR30DDTT Engine Models

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

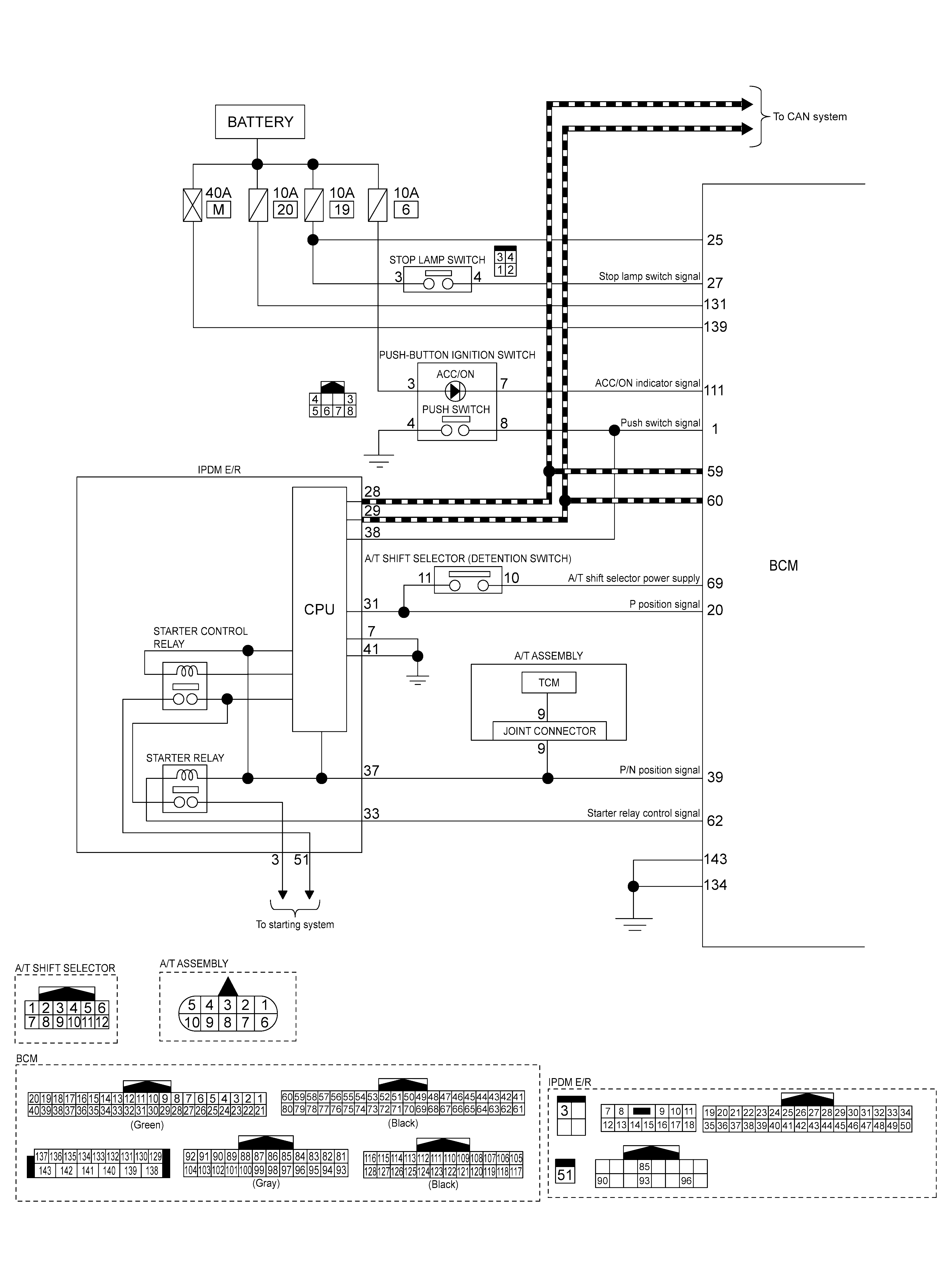

GNSJMKIB7505GB-505Courtesy of NISSAN NORTH AMERICA, INC.

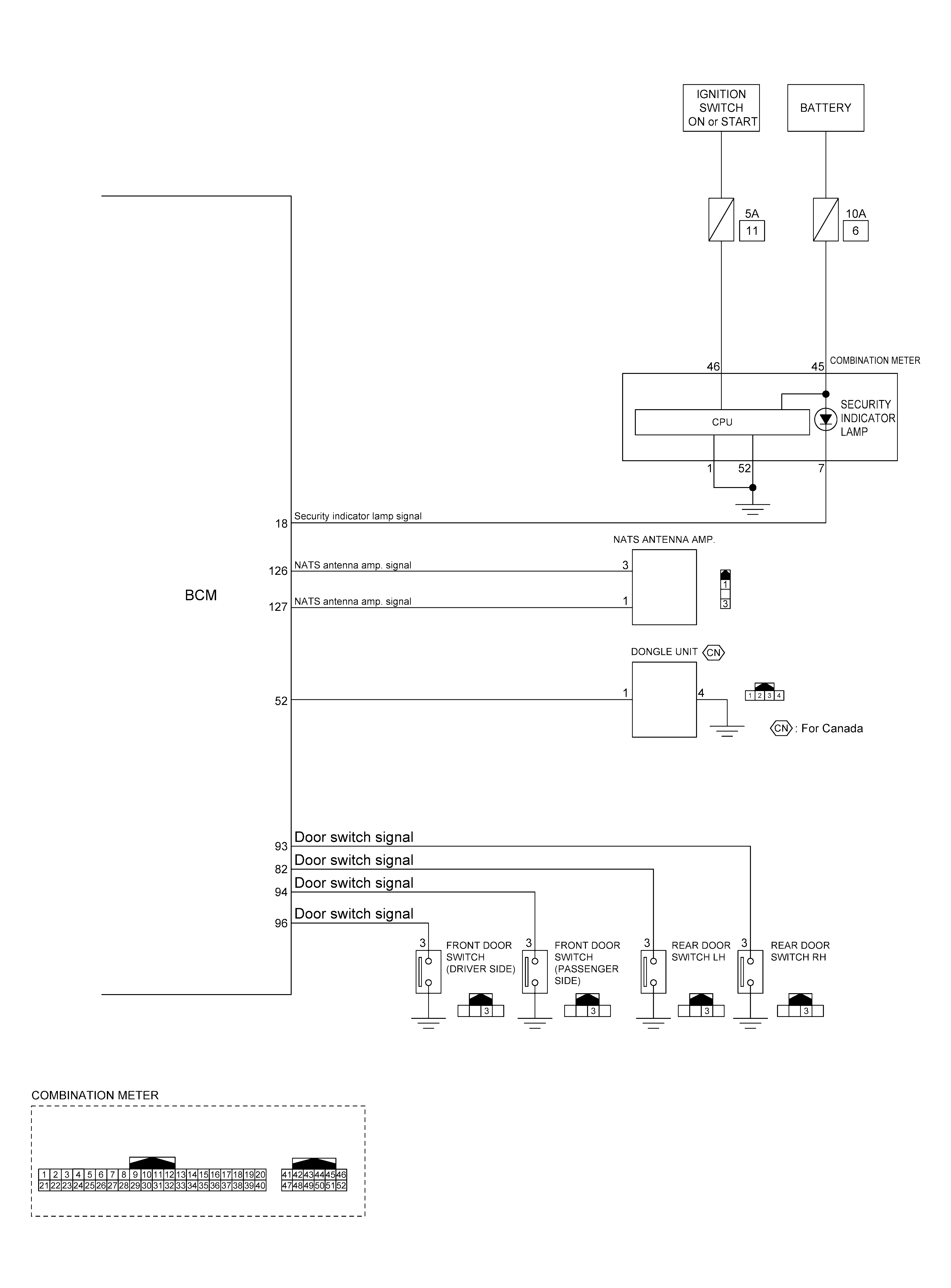

GNSJMKIB7506GB-506Courtesy of NISSAN NORTH AMERICA, INC.
