For VR30DDTT Engine Models (Except For MEXICO)

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

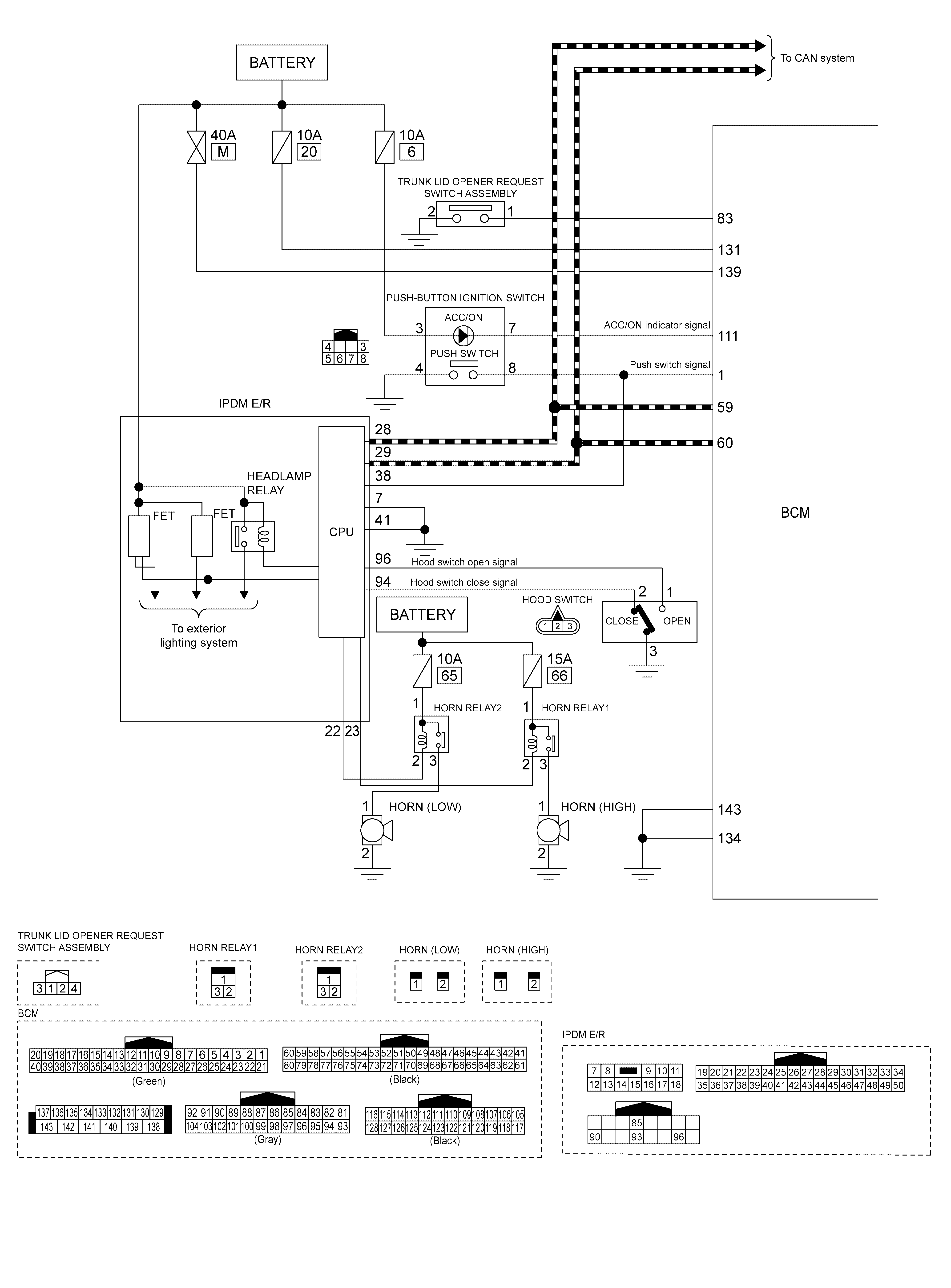

GNSILL0112550-550Courtesy of NISSAN NORTH AMERICA, INC.

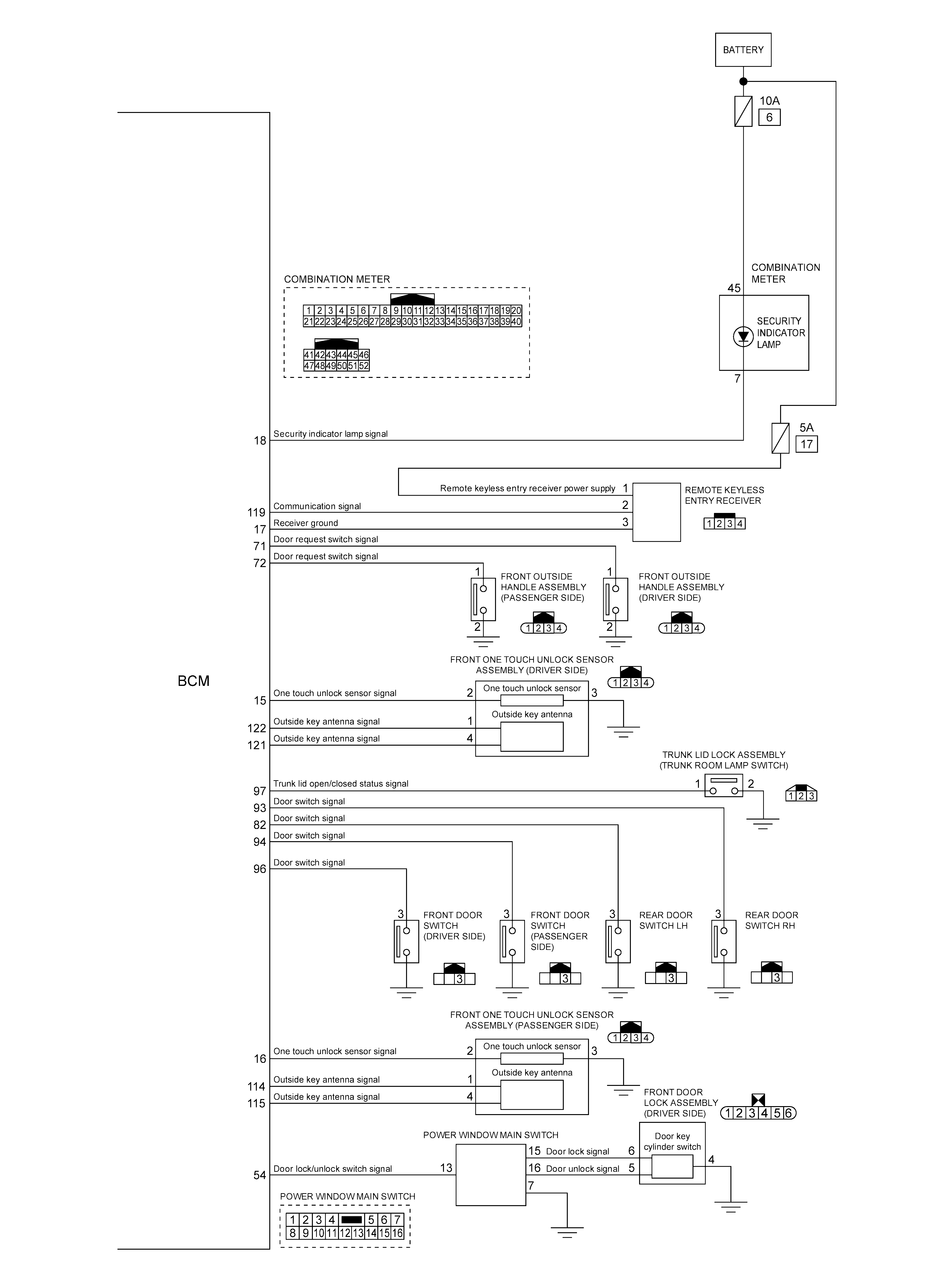

GNSJMKIB8730GB-730Courtesy of NISSAN NORTH AMERICA, INC.
