Section 2 (Transfer Case)
›
Removal And Installation
›
AWD Control Unit
›

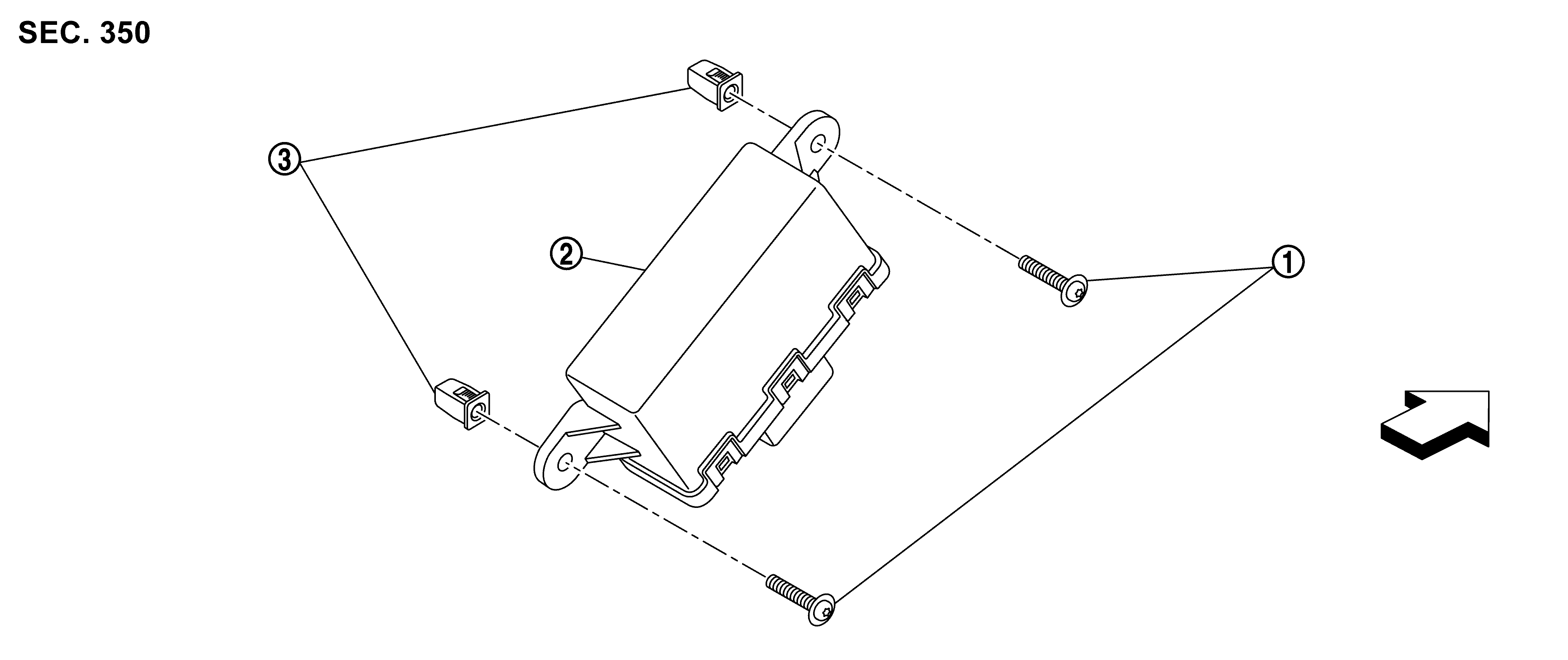

Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
Combination screw
AWD control unit
Spreader nut
: Vehicle front
Courtesy of NISSAN NORTH AMERICA, INC.
: Vehicle front
