Power Transfer Components

WARNING: This page is about a different variant/trim than selected.

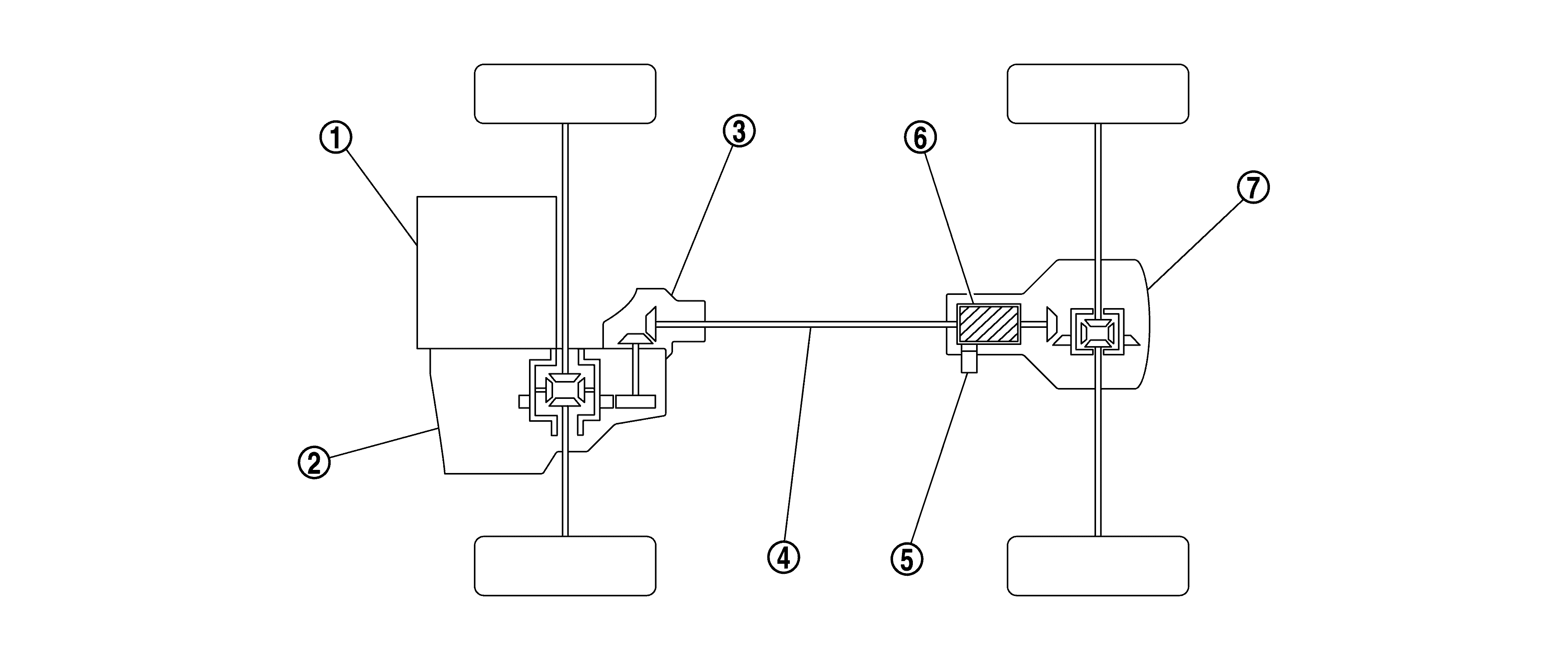

GNSJSDIA8815Z-815Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Engine

SYMBOL

Transaxle

SYMBOL

Transfer

SYMBOL

Propeller shaft

SYMBOL

AWD solenoid

SYMBOL

Multiple disk clutch

SYMBOL

Rear final drive
