Exploded View: Removal

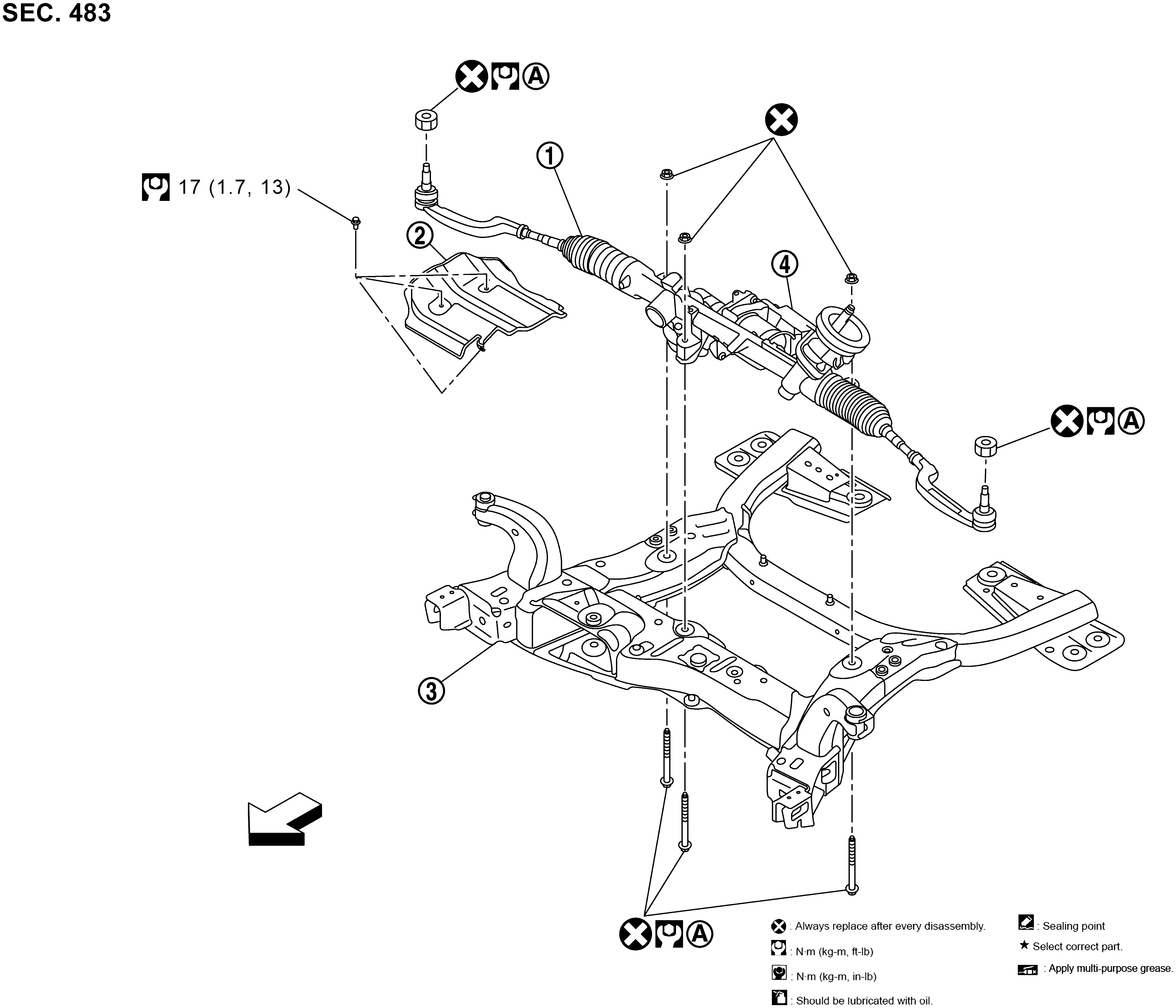

Fig 1: Steering Gear And Linkage Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Steering gear assembly	Heat insulator	Front suspension member
	EPS control unit
: Tightening must be done following the installation procedure. Refer to Removal and Installation .
: Vehicle front
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
