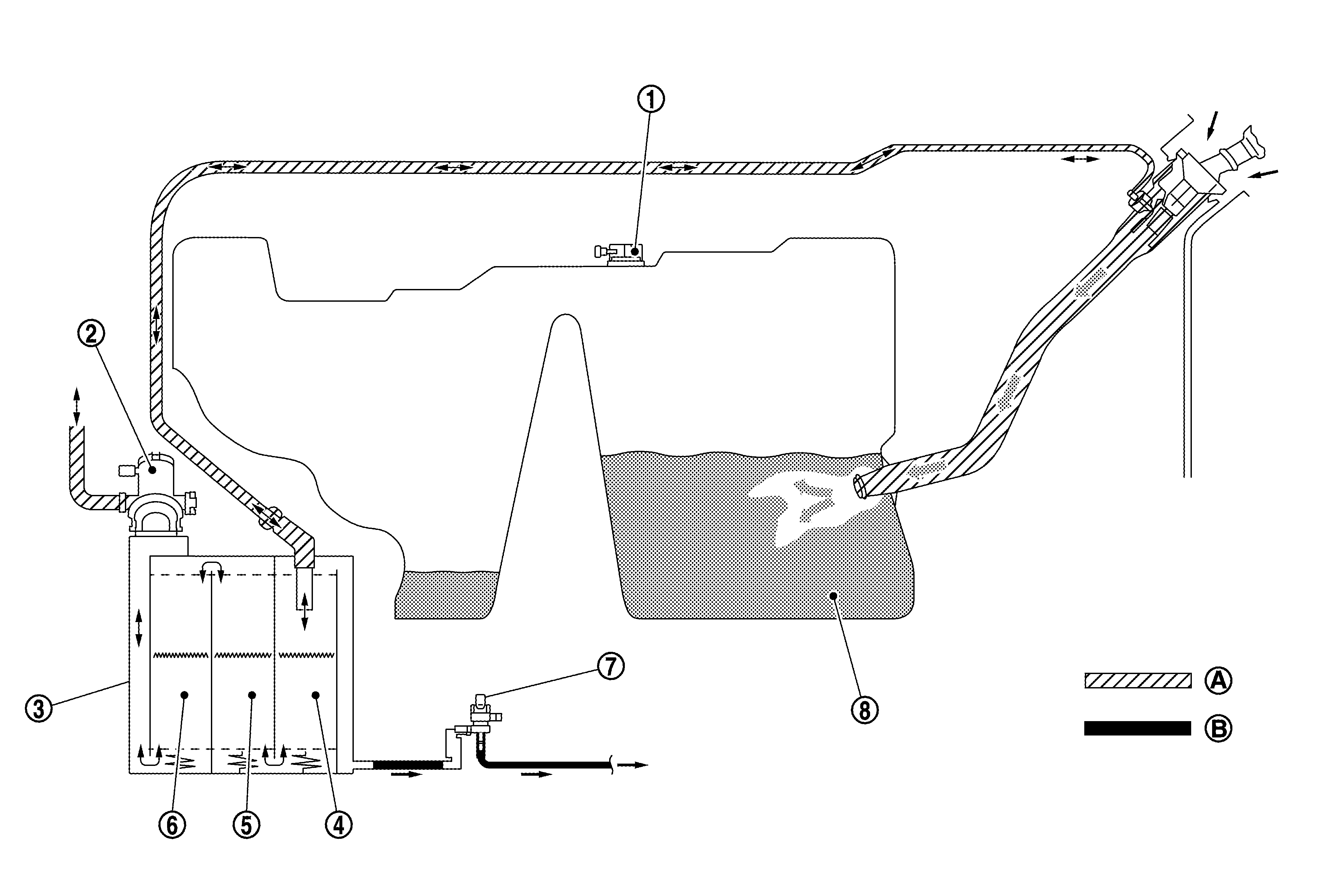

Fuel tank pressure sensor
EVAP canister vent control valve
EVAP canister
Activated EVAP canister chamber 1
Activated EVAP canister chamber 2
Activated EVAP canister chamber 3
EVAP purge control valve
Fuel tank
Aeration and vent line
Purge line
