Exploded View

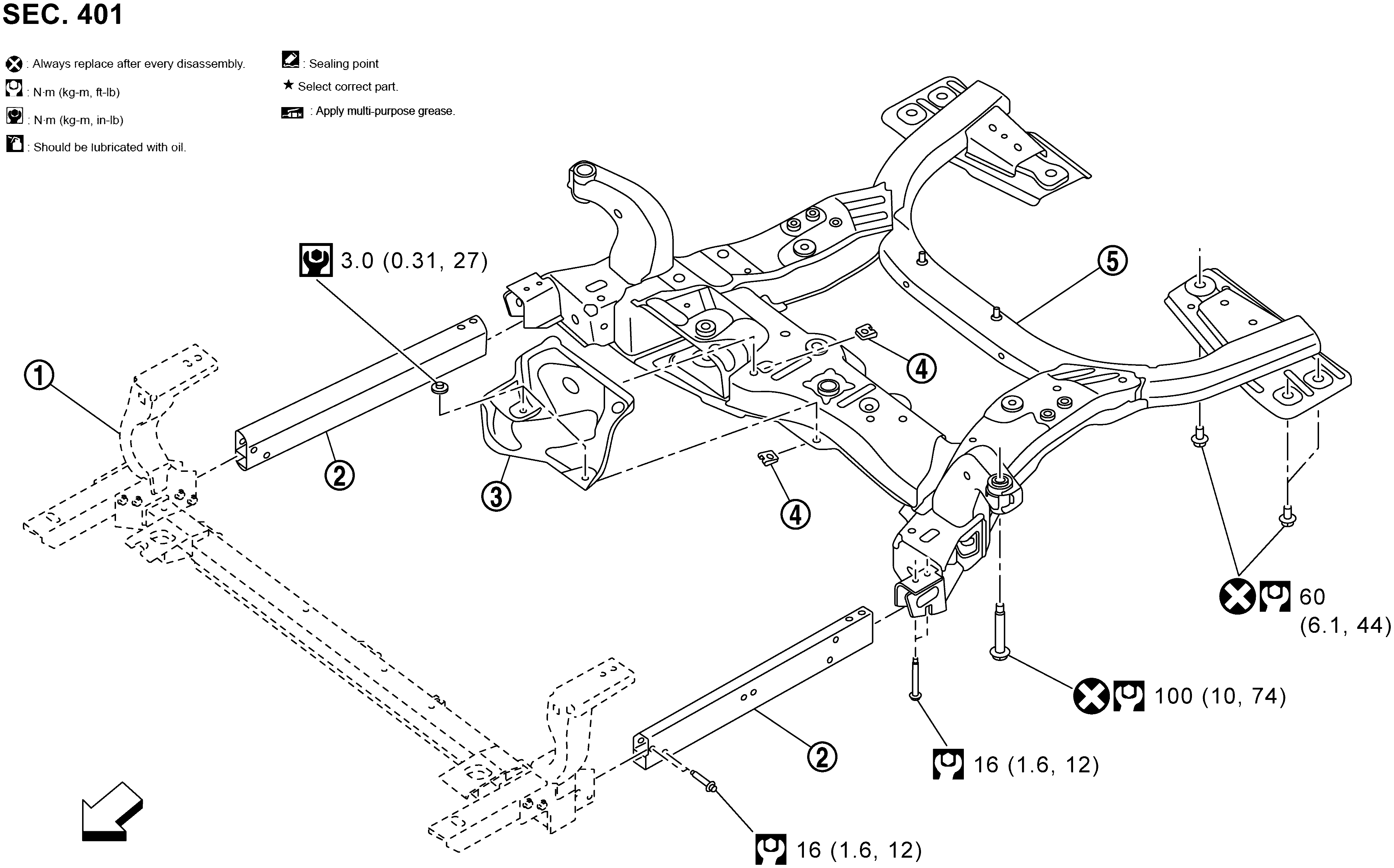

Fig 1: Front Suspension Member Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Radiator core support lower	Crossbar	Heat insulator
	Grommet	Front suspension member
: Vehicle front
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
