Exploded View

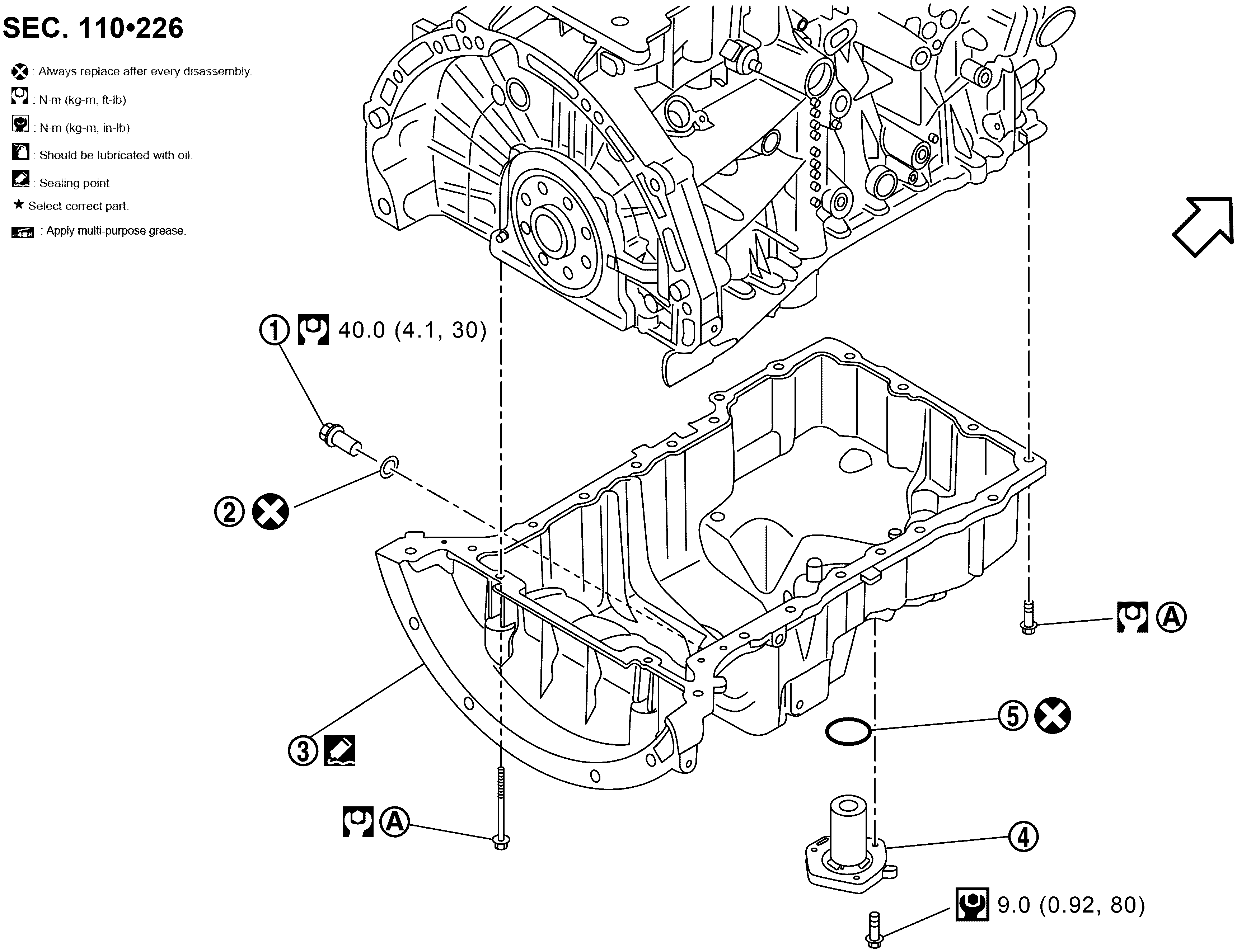

Fig 1: Oil Pan Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Oil drain screw	Oil drain screw washer	Oil pan
Engine oil level switch	O-ring
Comply with the installation procedure when tightening. Refer to Removal and Installation
: Engine front
: Always replace after every disassembly.
: N.m (kg-m, in-lb)
: N.m (kg-m, ft-lb)
: Sealing point
