Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
- Disengage cluster lid A fixing pawls. Refer to Removal and Installation .
- Disconnect push-button ignition switch connector and NATS antenna amp. connector.

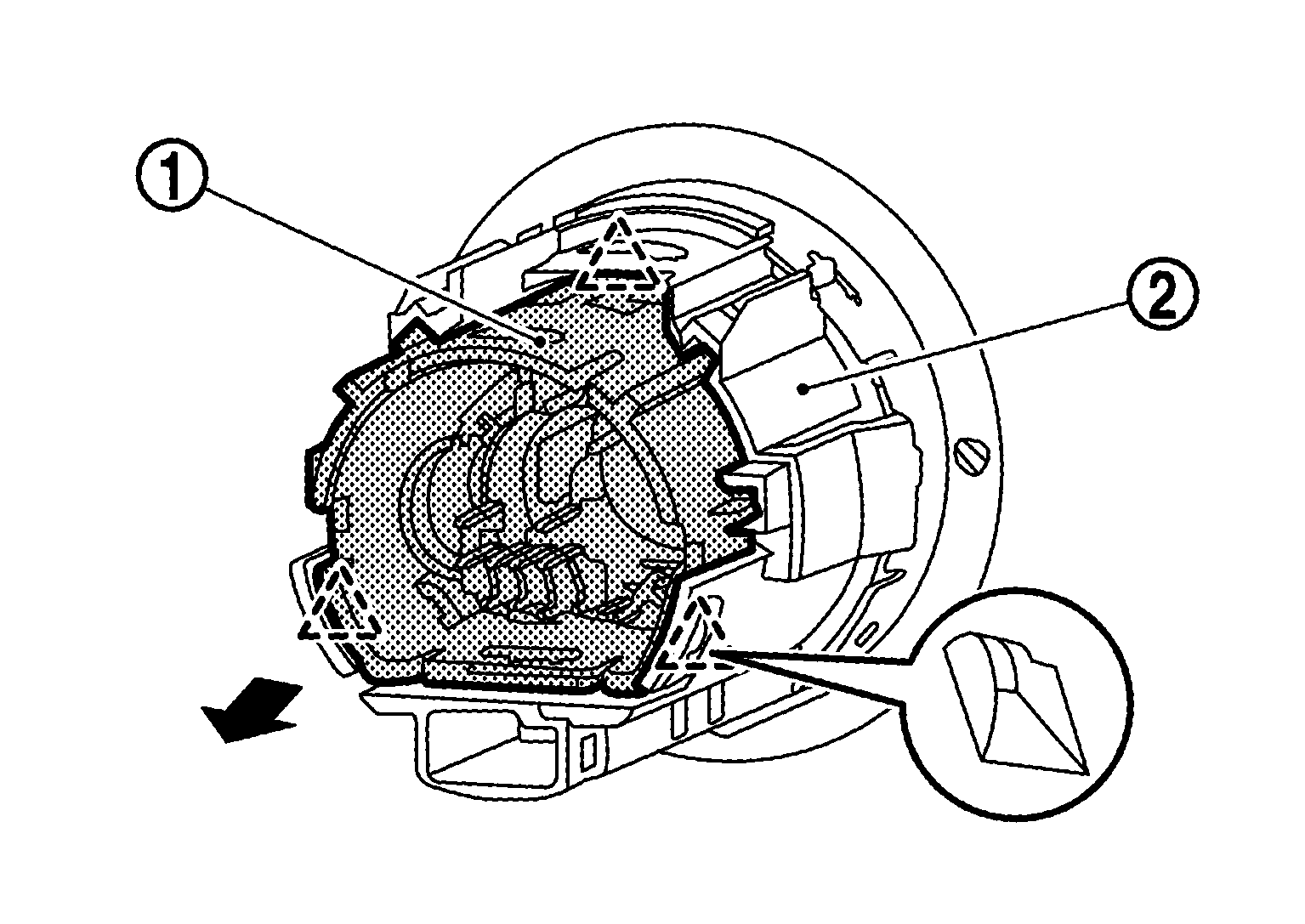

- Disengage NATS antenna amp. fixing pawls and then remove NATS antenna amp.
and push-button ignition switch
as a set from cluster lid A
.
: Pawl

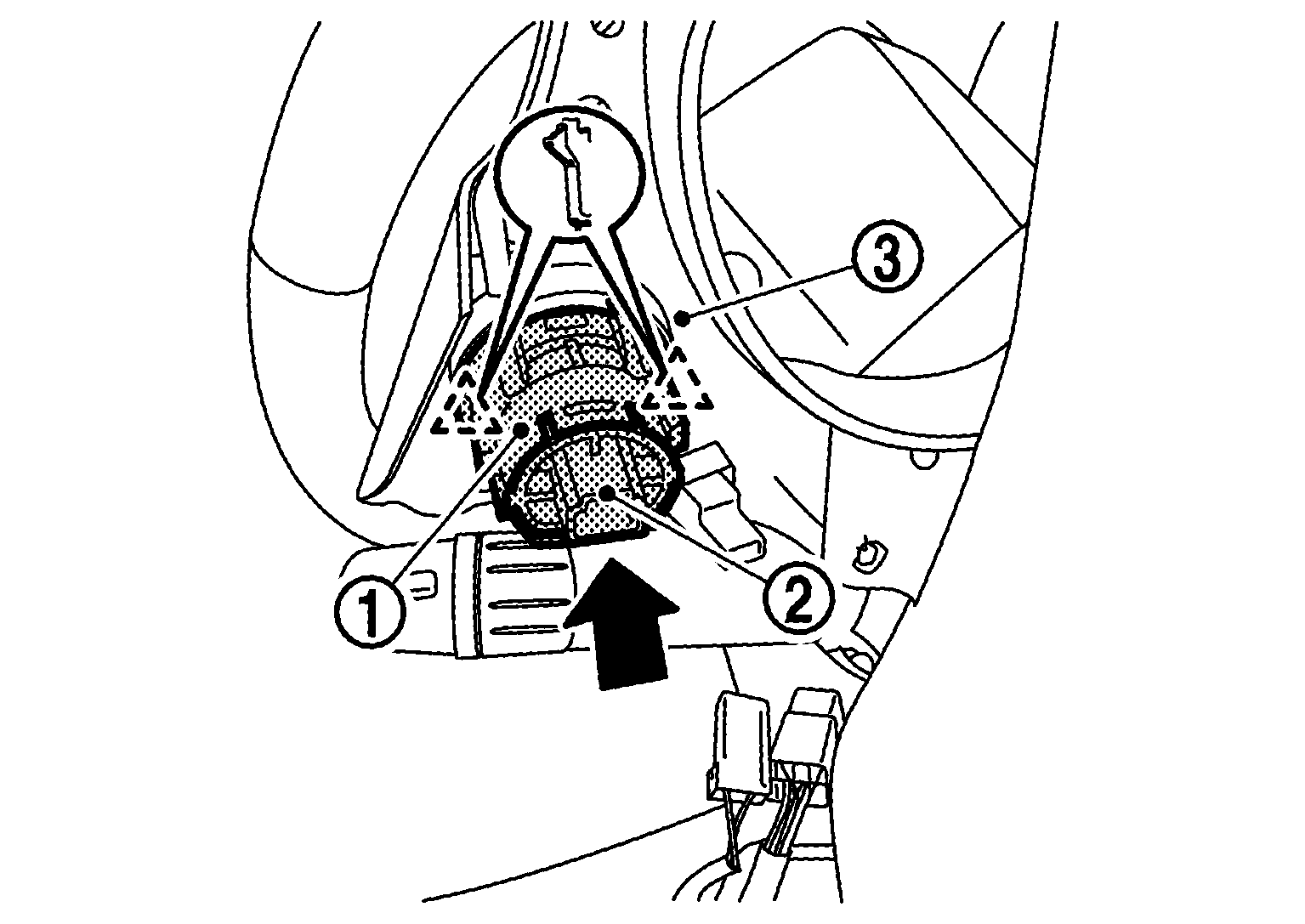

- Disengage push-button ignition switch fixing pawl and then remove push-button ignition switch
: Pawl
