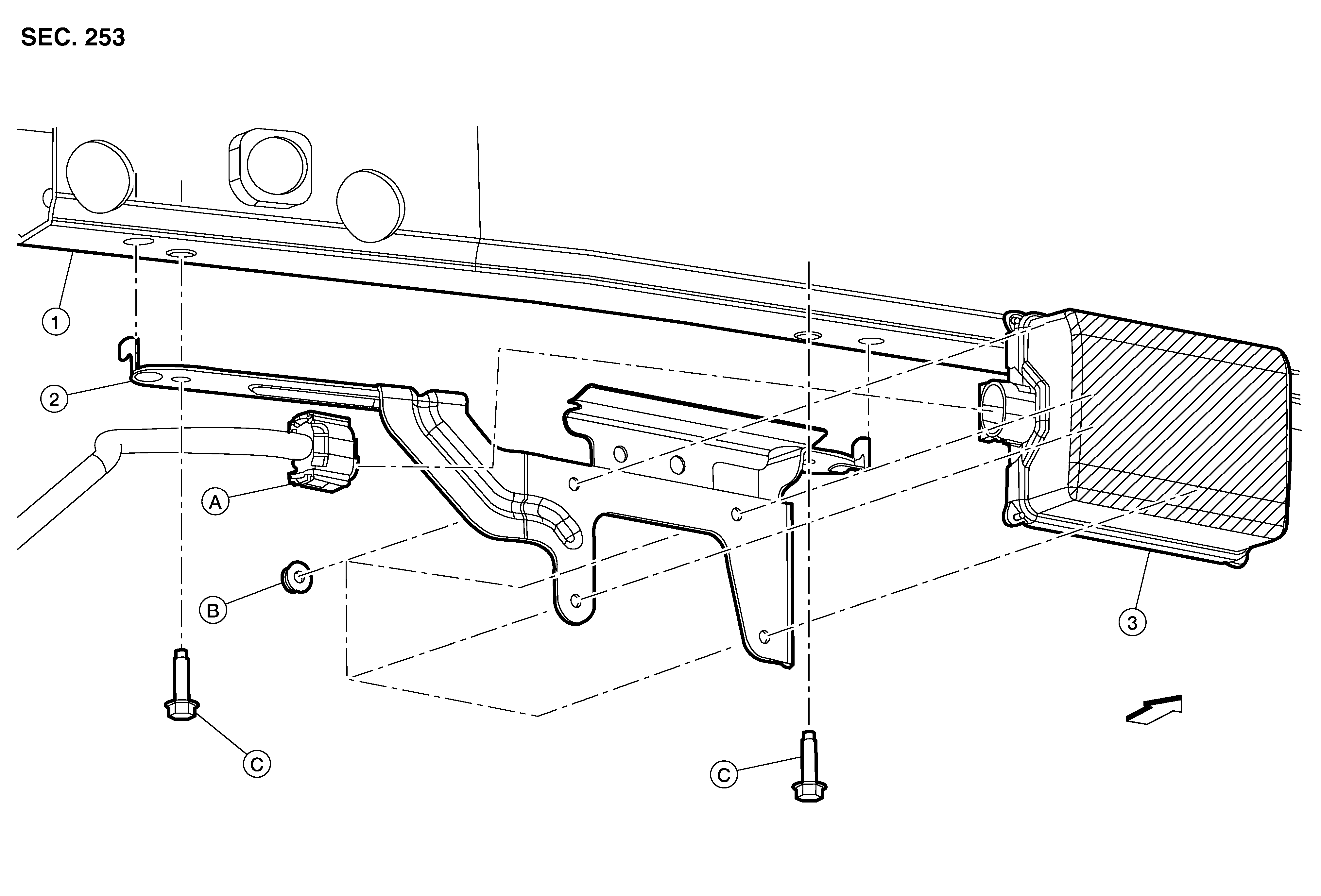

Exploded View
|
1. |
Front bumper reinforcement |
2. |
ICC sensor bracket |
3. |
ICC sensor |
|
A. |
ICC sensor harness connector |
B. |
Refer to INSTALLATION . |
C. |
Refer to INSTALLATION . |
|
|
Front |
