Removal and Installation: Removal

  1. Remove the instrument lower panel LH. Refer to Removal and Installation .

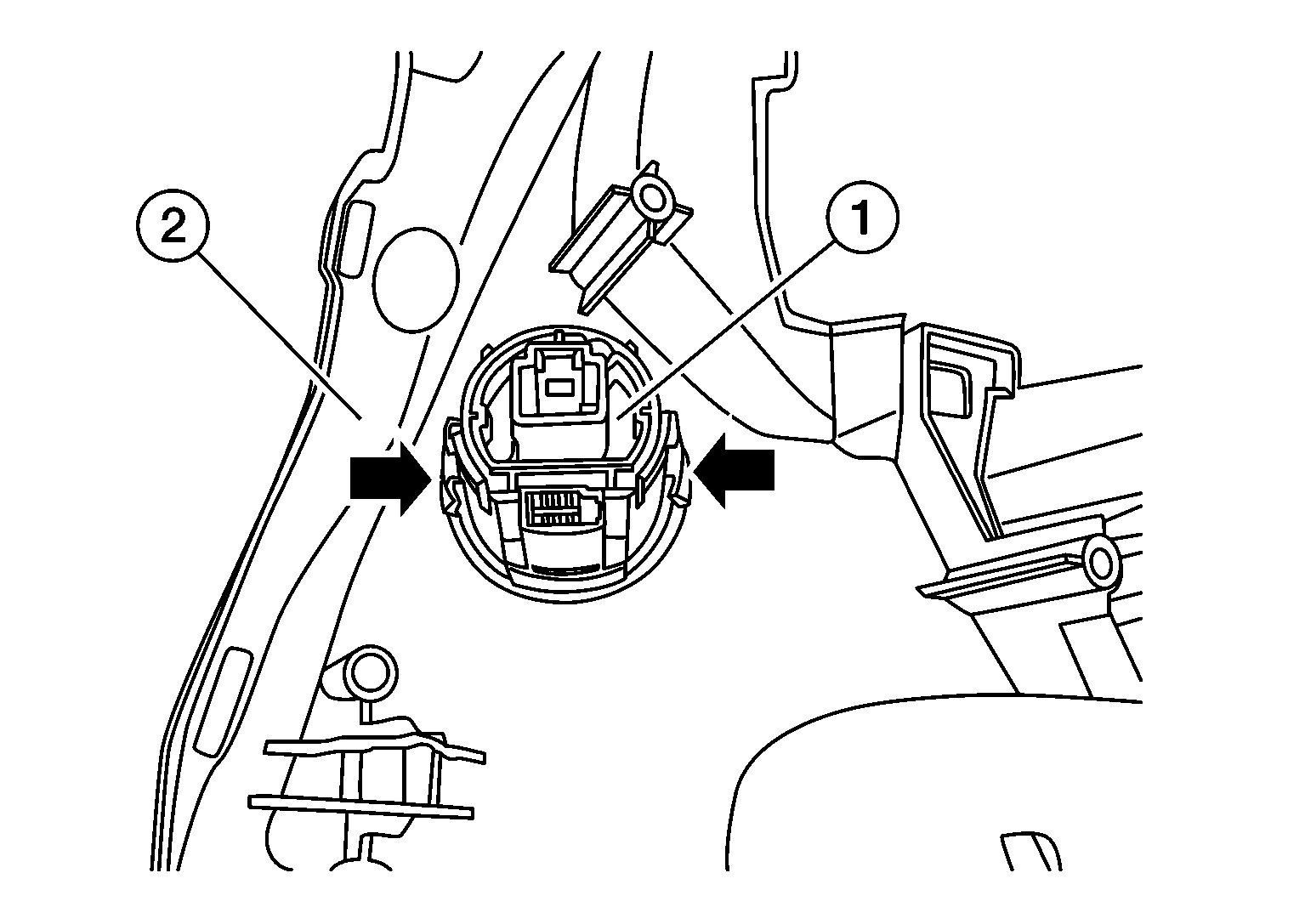

  2. Release the pawl (SYMBOL ) on each side of NATS antenna amp (1) and remove from the instrument pad (LH) (2).
    GNSDB120628Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the pawl on each side and remove the push-button ignition switch from the NATS antenna amp.
