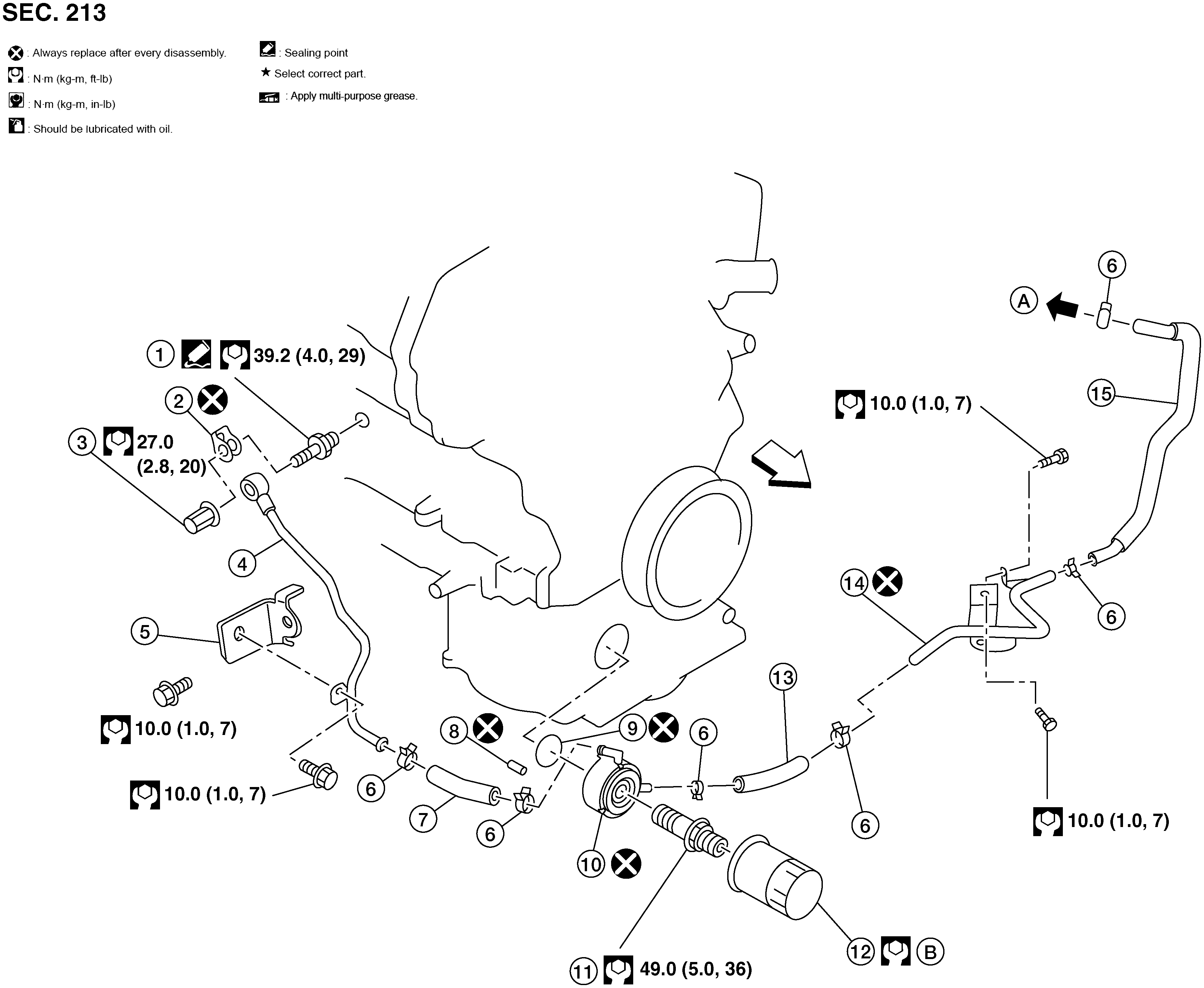

Exploded View
|
1. |
Connector Bolt |
2. |
Copper Gasket |
3. |
Water Drain Plug |
|
4. |
Water Pipe |
5. |
Bracket |
6. |
Clamp |
|
7. |
Water Hose |
8. |
Relief Valve |
9. |
Oil Cooler O-Ring |
|
10. |
Oil Cooler |
11. |
Connector Bolt |
12. |
Oil Filter |
|
13. |
Water Hose |
14. |
Water Pipe |
15. |
Water Hose |
|
A. |
To water connector. Refer to Exploded View . |
B. |
Refer to Removal and Installation |
|
Engine front |
|
|
Sealing point |
