Removal and Installation: Installation

Installation is in the reverse order of removal.

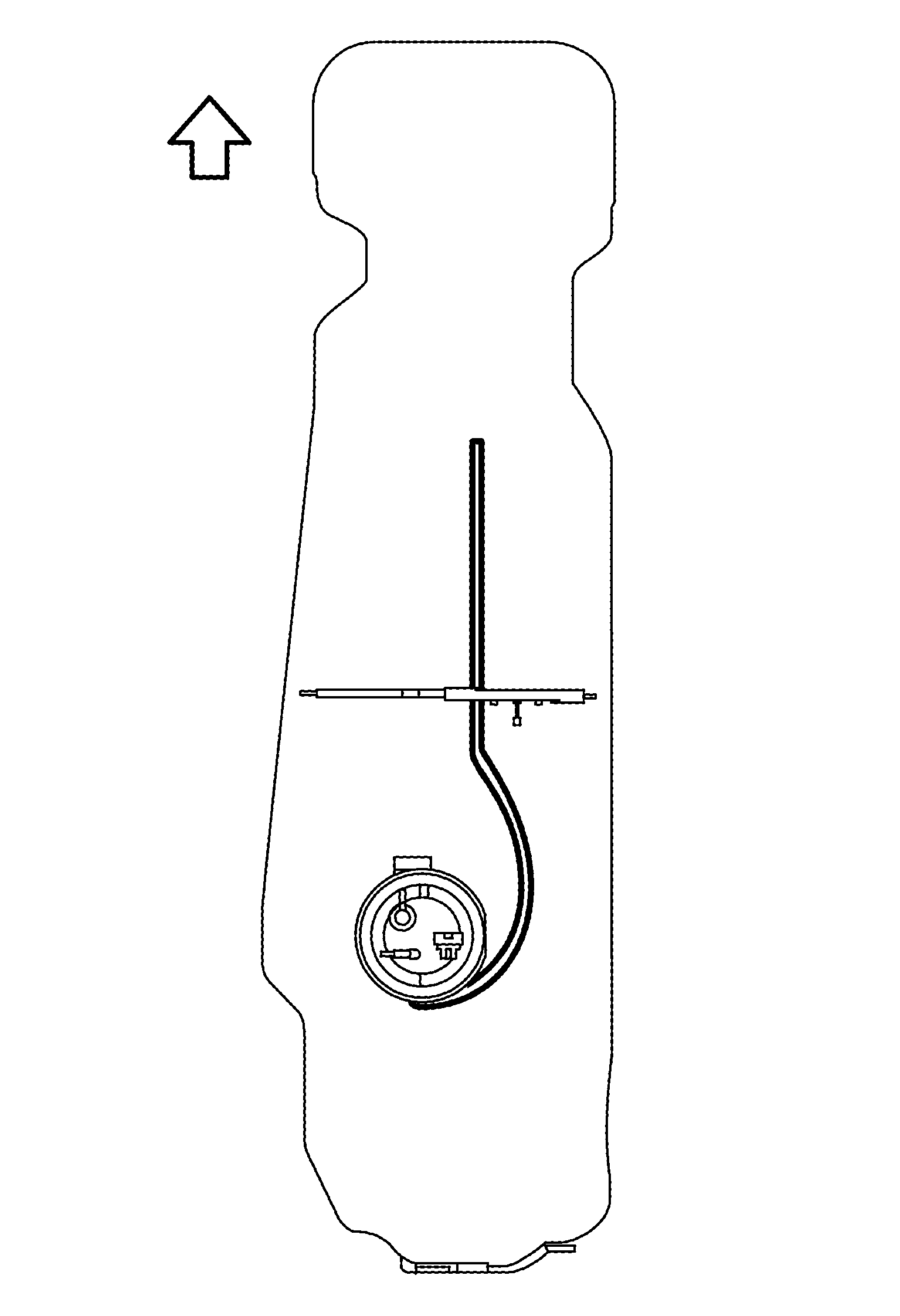

• If fuel tank has been replaced, connect the transfer hose connector to the fuel level sensor, fuel filter, and fuel pump assembly. Inspect through the opening of the fuel tank and make sure that the transfer hose is routed as shown, below.

  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION:

  • Make sure that the transfer hose does not interfere with the float arm assembly.
  • If the fuel level sensor unit, fuel filter and fuel pump assembly is removed refer to INSTALLATION. Refer to Removal and Installation .

  : Front

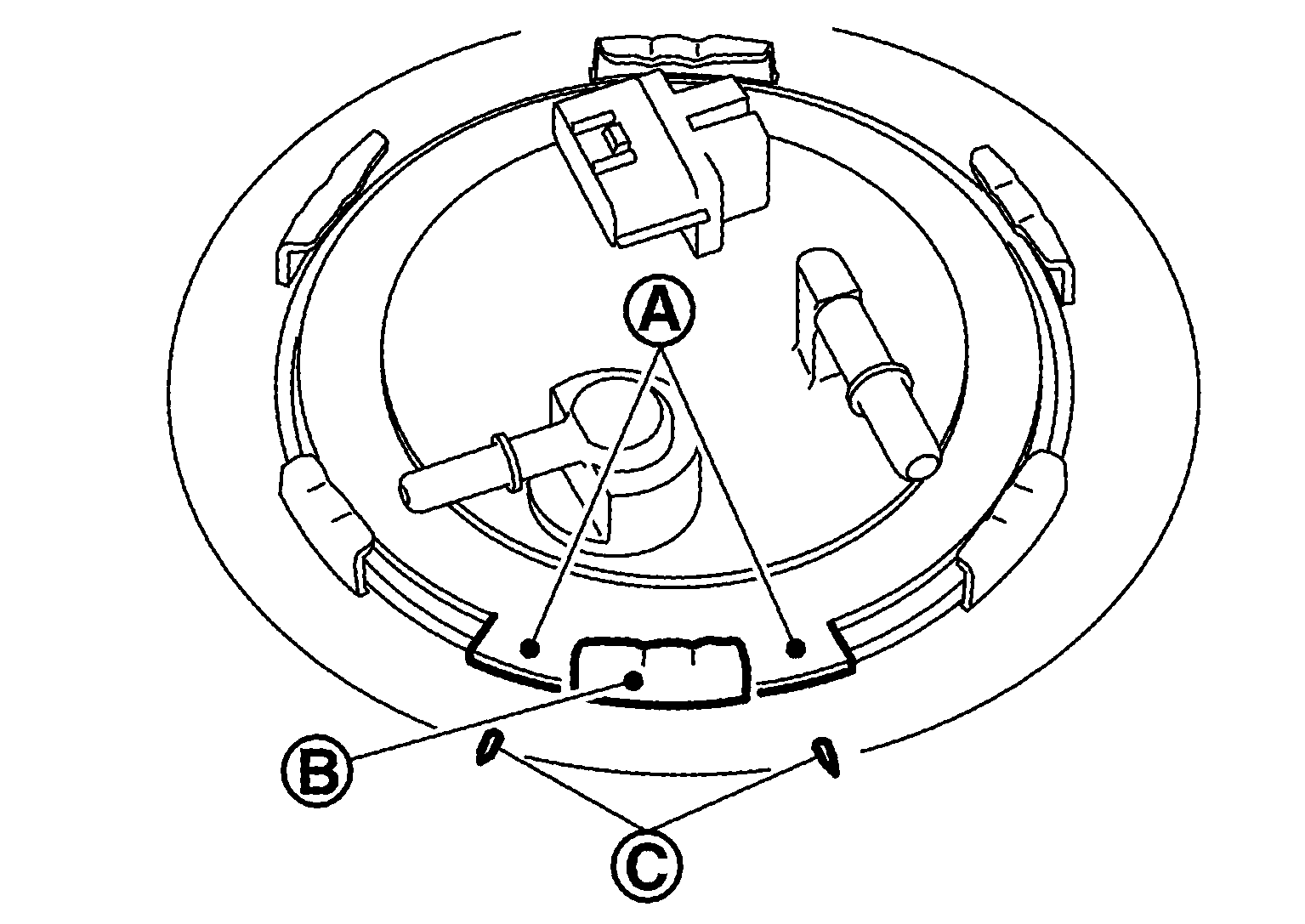

• If fuel tank has been replaced, align the tabs (A) of the fuel level sensor, fuel filter, and fuel pump assembly to the matching marks (C) of the fuel tank for proper installation.

  Courtesy of NISSAN NORTH AMERICA, INC.

  (B)	: Retainer pawl

• Connect the quick connector as follows:

  Courtesy of NISSAN NORTH AMERICA, INC.

  1. Check the connection for damage or any foreign materials.
  2. Align the connector with the tube, then insert the connector straight into the tube until a click is heard.
• Before tightening the fuel tank mounting straps, temporarily install the filler hose and the recirculation hose. Tighten all fuel tank mounting strap bolts to specification, then tighten the hose clamps.

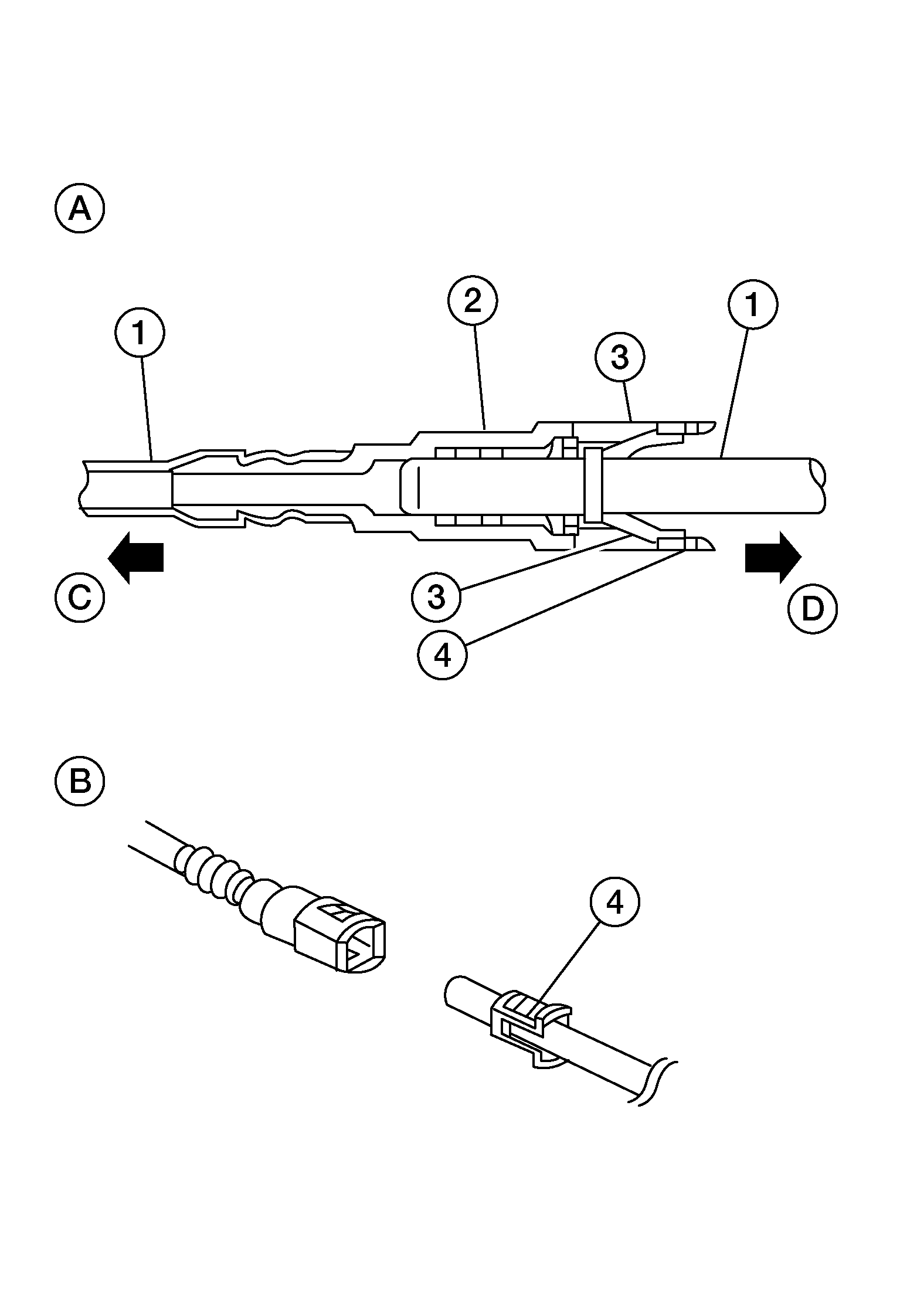

• After the tube is connected, make sure the connection is secure by performing the following checks:
  • Pull on the tube and the connector to make sure they are securely connected.
  • Visually confirm that the two retainer tabs (3) are connected to the quick connector (2).

    Courtesy of NISSAN NORTH AMERICA, INC.

    (1) : Resin tube

    (4) : Retainer

    (A) : Connector (cross section)

    (B) : Disconnection

    (C) : To under floor fuel line

    (D) : To fuel tank
