Front Suspension Member
›
Exploded View
Exploded View

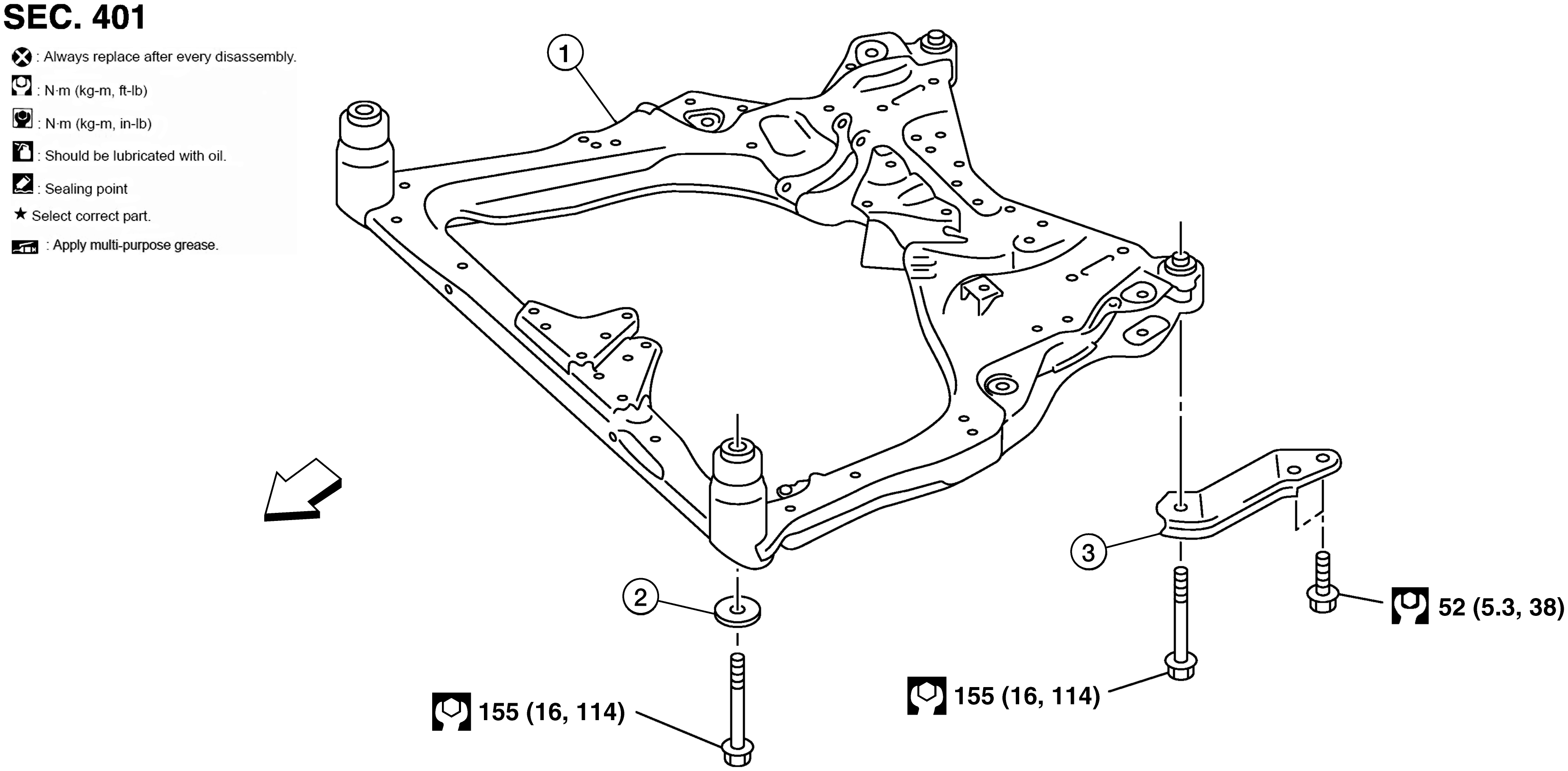

Fig 1: Front Suspension Member With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Front suspension member
2.
Rebound stopper
3.
Front suspension member stay
Front
