Removal and Installation: Installation

Installation is in the reverse order of removal.

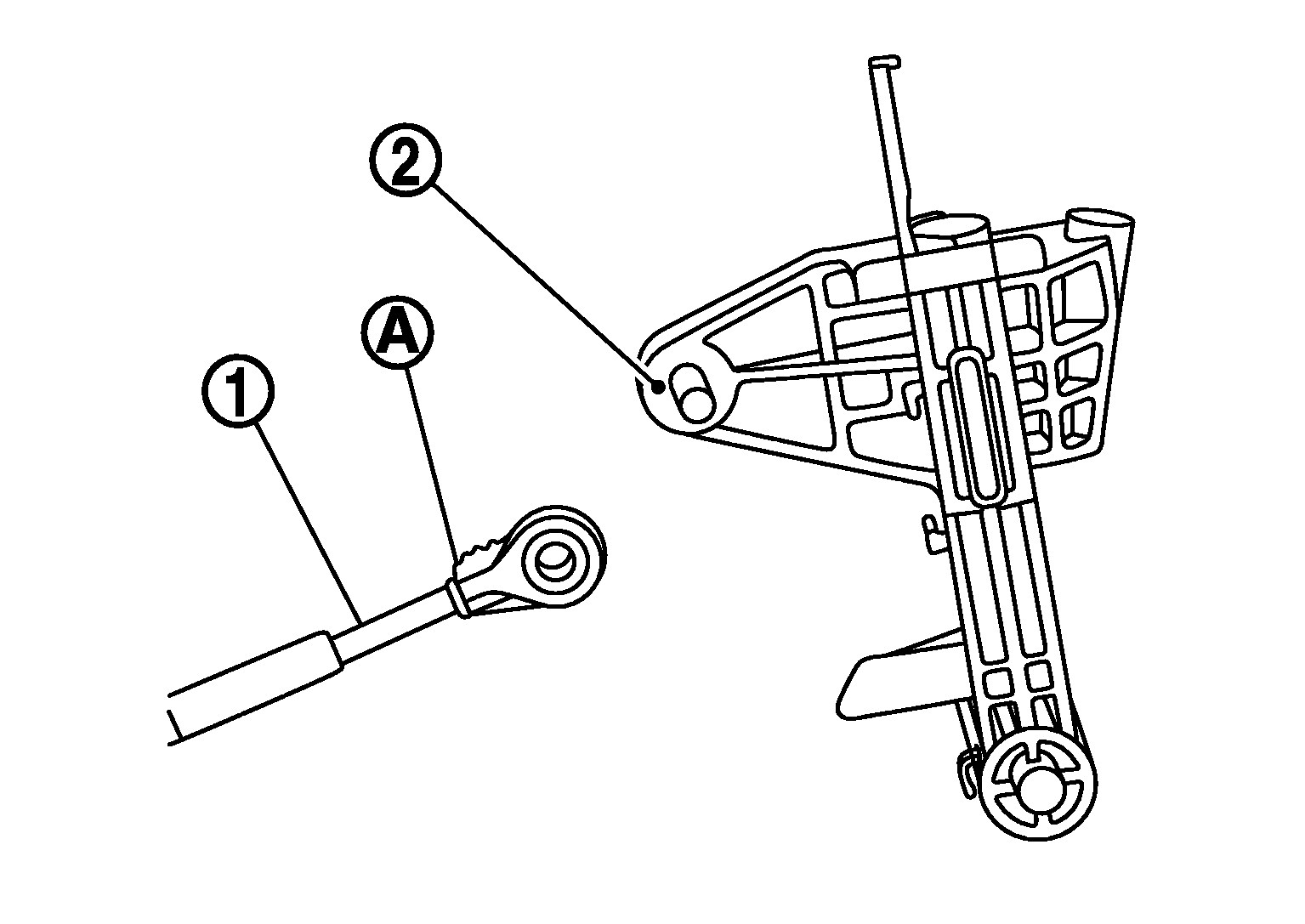

• When installing control cable (1) to shift selector assembly (2), make sure that control cable is fully pressed in with the ribbed surface (A) facing upward.

  Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE: Apply multi-purpose grease to control cable before assembly.

• Adjust control cable as necessary. Refer to Inspection and Adjustment .
