Removal and Installation: Removal

  1. Apply the parking brake.
    CAUTION: Make sure the vehicle cannot move with the parking brake applied.
  2. Remove the front air duct, air cleaner cases (upper and lower) with mass air flow sensor and air duct assembly. Refer to REMOVAL AND INSTALLATION .

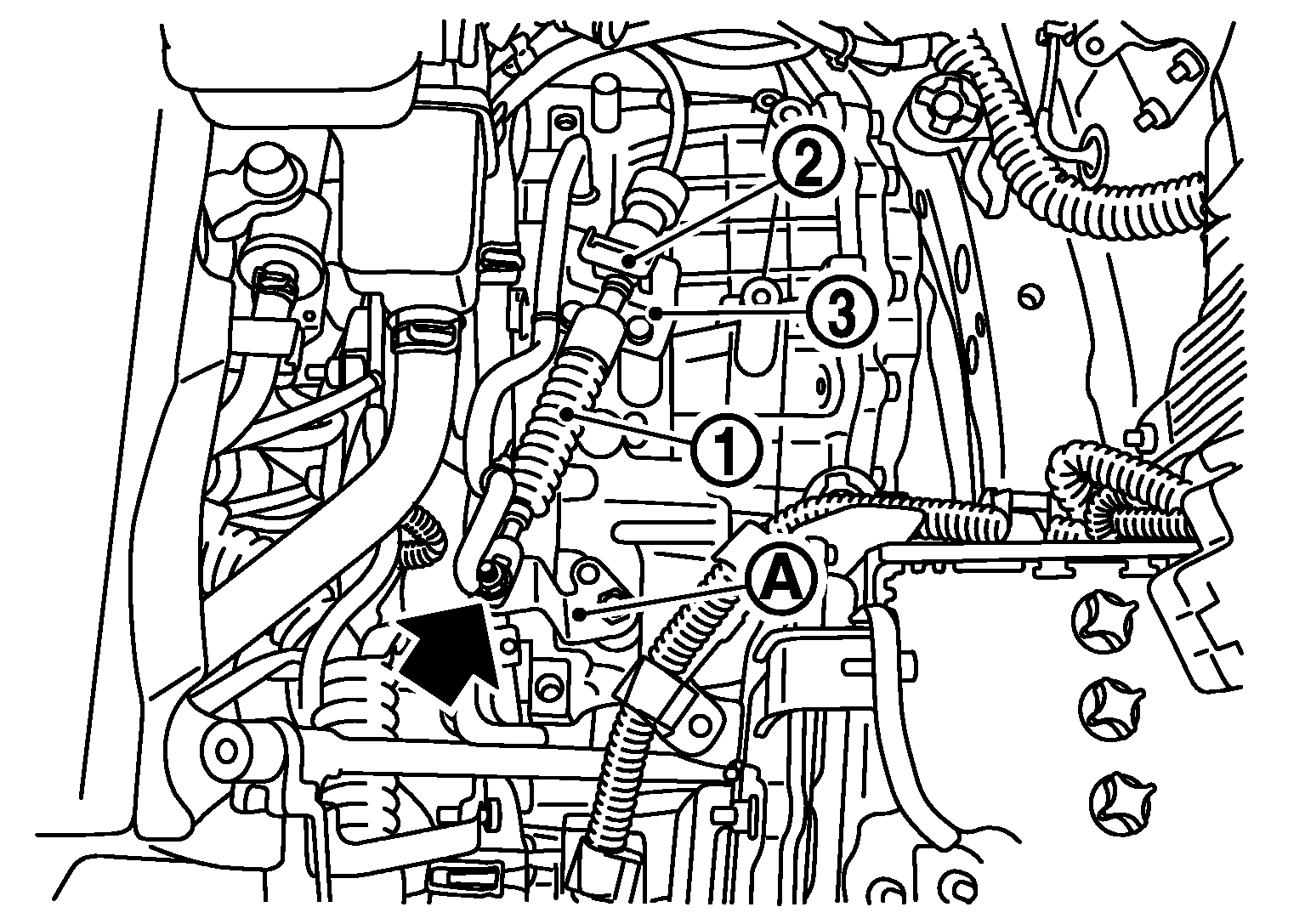

  3. Remove control cable nut (SYMBOL ), using suitable tool.
    GNSJPDIA0601Z-601Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove control cable (1) from manual lever (A).
  5. Remove lock plate (2) from control cable (1).
  6. Remove control cable (1) from bracket (3).
  7. Remove center console upper side finisher (LH). Refer to Exploded View .

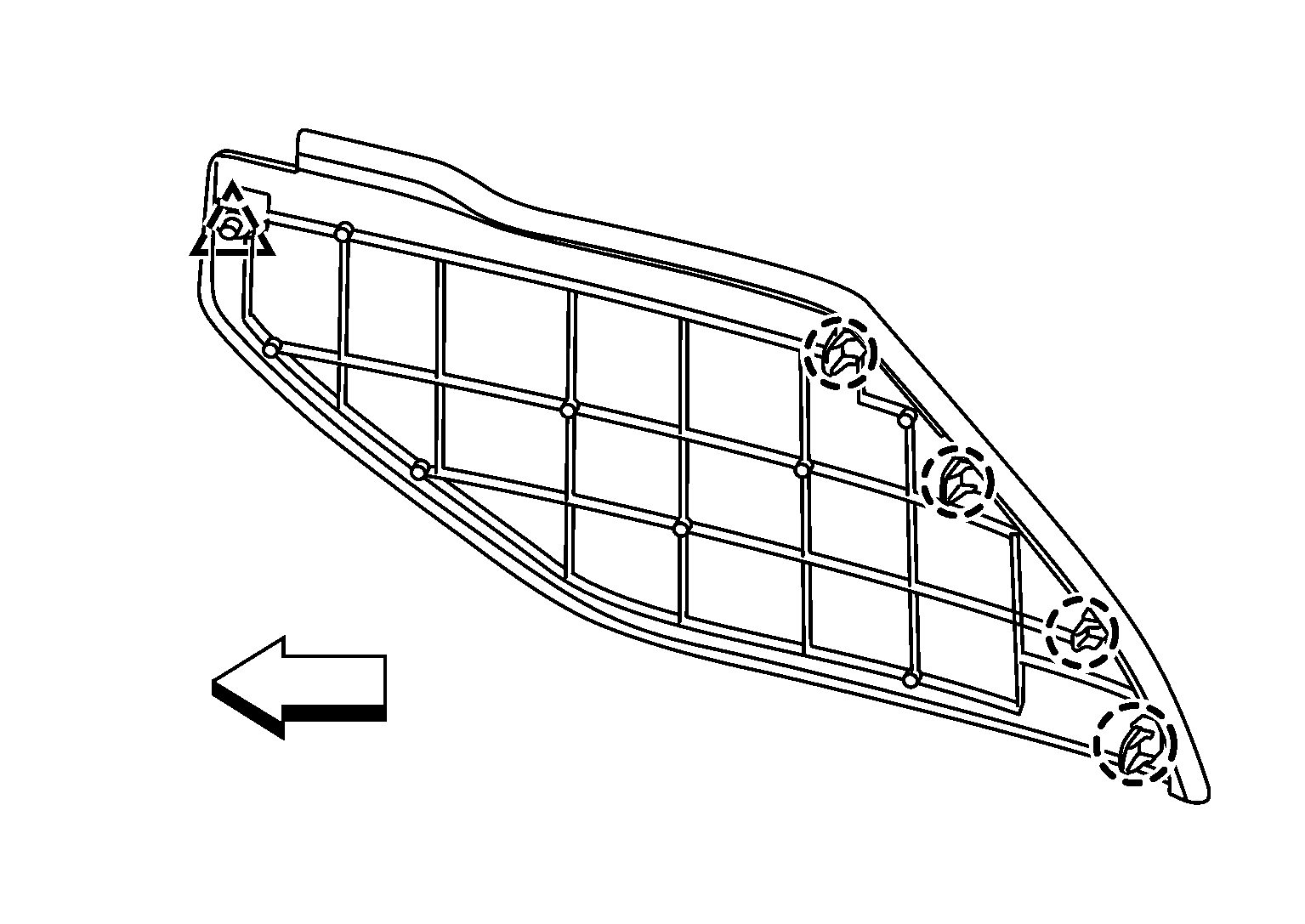

  8. Release center console side finisher (LH/RH) clip and pawls using a suitable tool and remove.
    GNSDB120153Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Clip

    SYMBOL : Pawl

    SYMBOL : Front

  9. Release shift selector finisher clips and pawls using a suitable tool, disconnect the harness connectors and remove. Refer to Exploded View .
  10. Remove control cable (1) from shift selector assembly (2).
    GNSJPDIA0609Z-609Courtesy of NISSAN NORTH AMERICA, INC.
    • (A): Ribbed surface

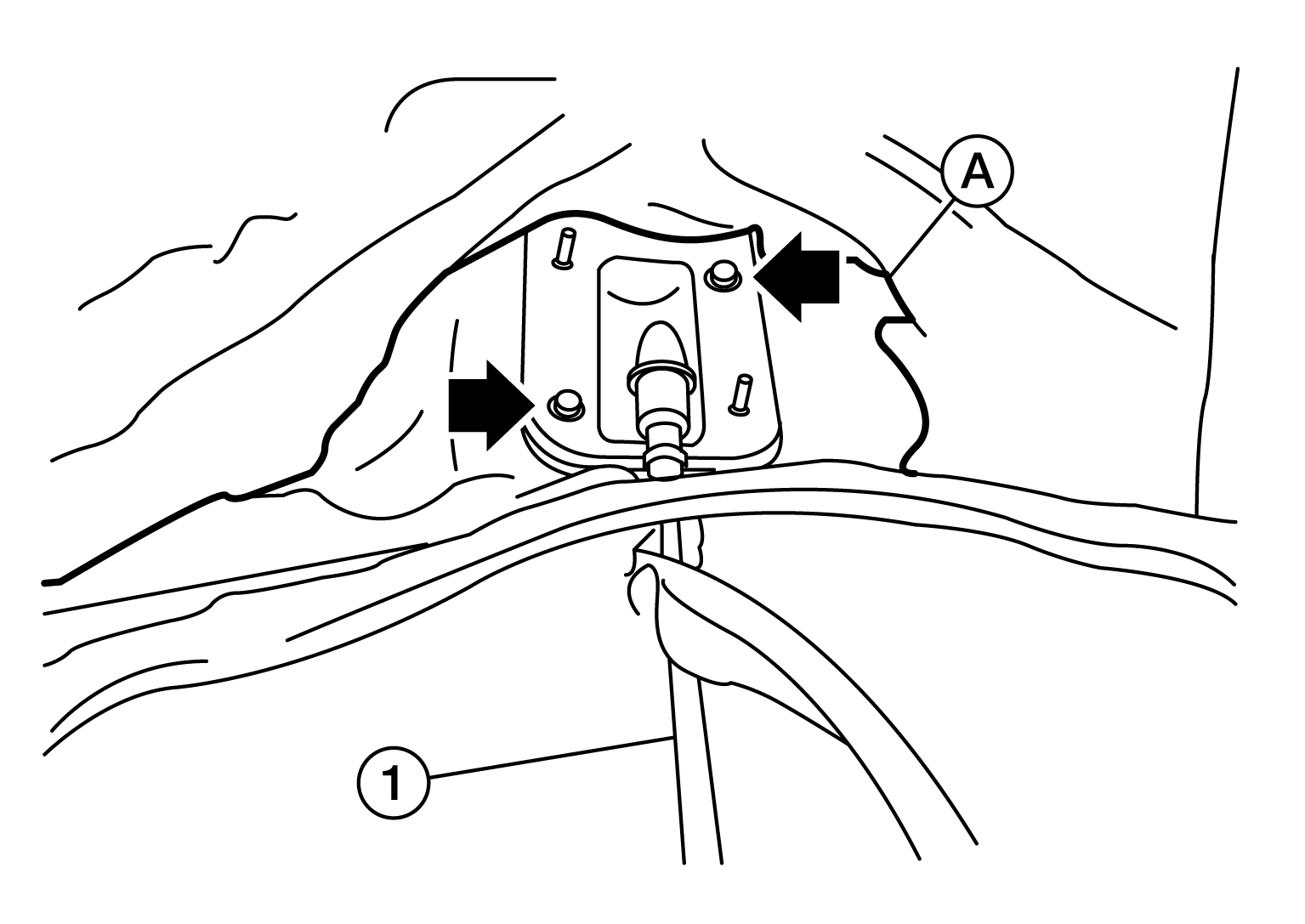

  11. Pull back dash trim (A) and remove bolts (SYMBOL ), using suitable tool.
    GNSAWDIA0976Z-976Courtesy of NISSAN NORTH AMERICA, INC.
  12. Remove the control cable (1) from the vehicle.
