EVAP Control System Pressure Sensor
›

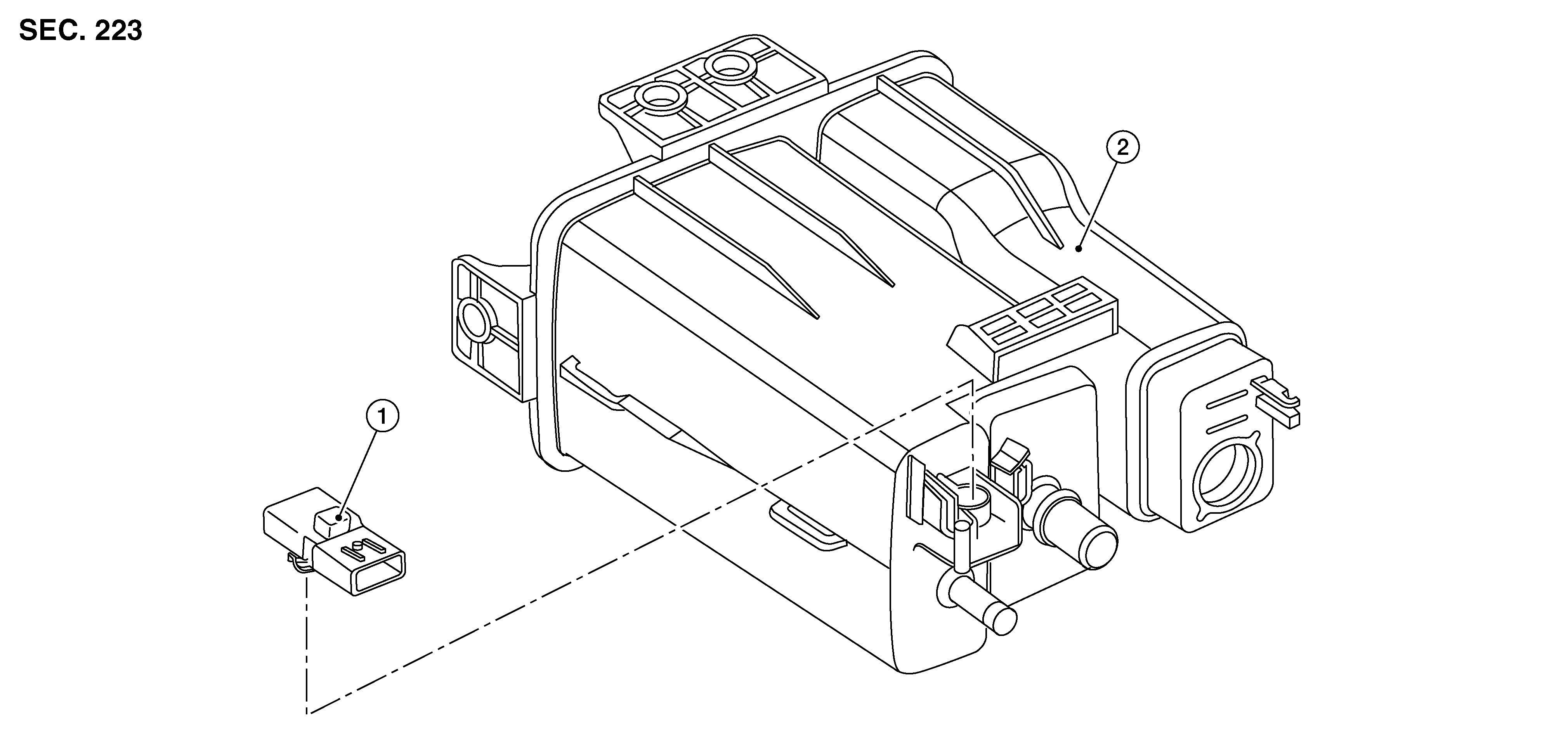

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
EVAP canister control pressure sensor (with O-ring)
2.
EVAP canister
