Work Procedure
WARNING: This page is about a different variant/trim than selected.
- UNIT CHARACTERISTICS WRITING
With CONSULT

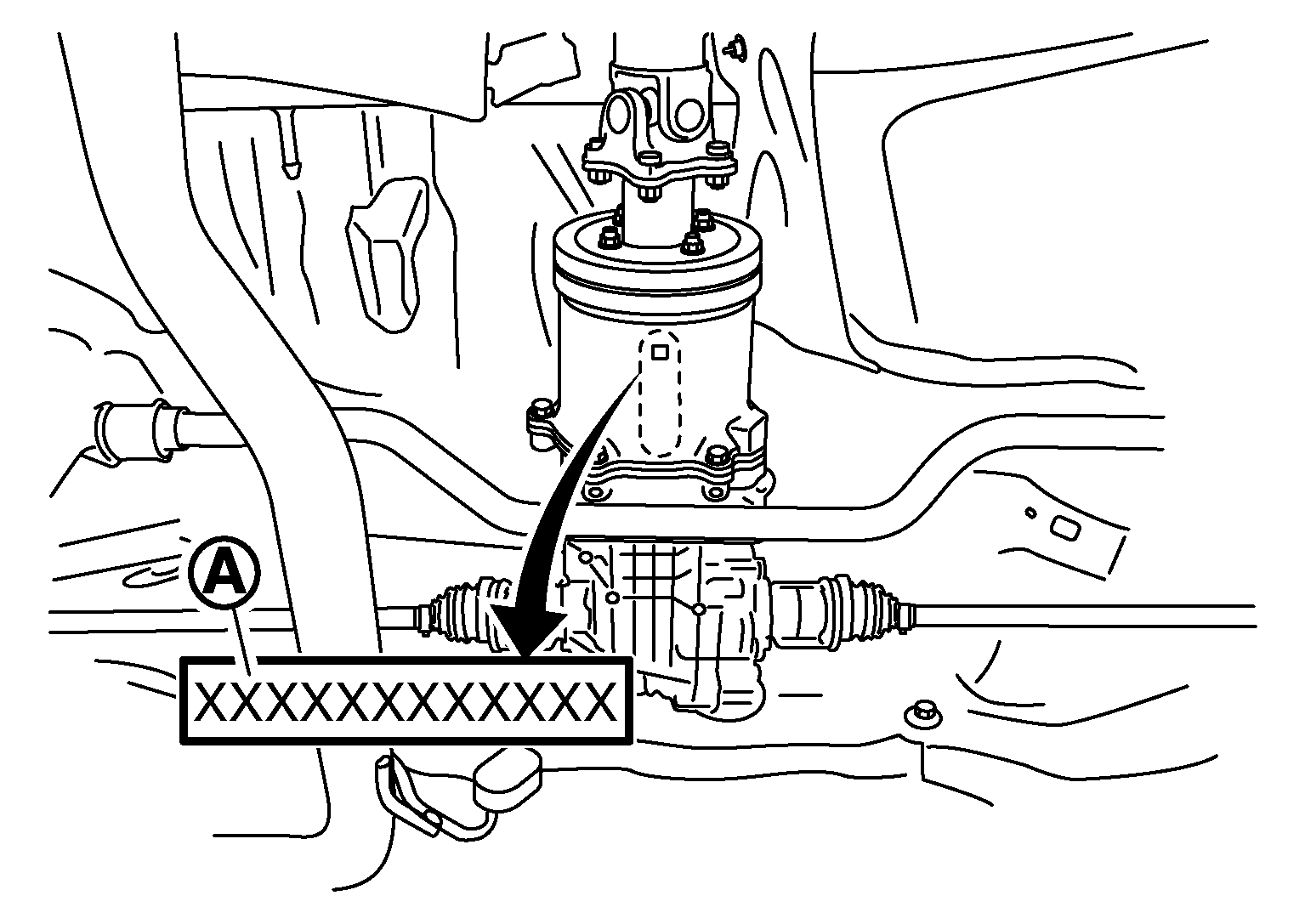

- Confirm the unit characteristics (A) of electric controlled coupling.NOTE: Unit characteristics is 12-digit alphanumeric.
- Turn the ignition switch OFF to ON.
- Select "UNIT CHARACTERISTICS WRITE" in "WORK SUPPORT" for "ALL MODE AWD/4WD".
- Input unit characteristics.
- Select "Start".
- Check that "UNIT CHARACTERISTICS WRITE COMPLETED" is displayed.
WORK END
- Confirm the unit characteristics (A) of electric controlled coupling.
