Transfer Cover: Disassembly

WARNING: This page is about a different variant/trim than selected.

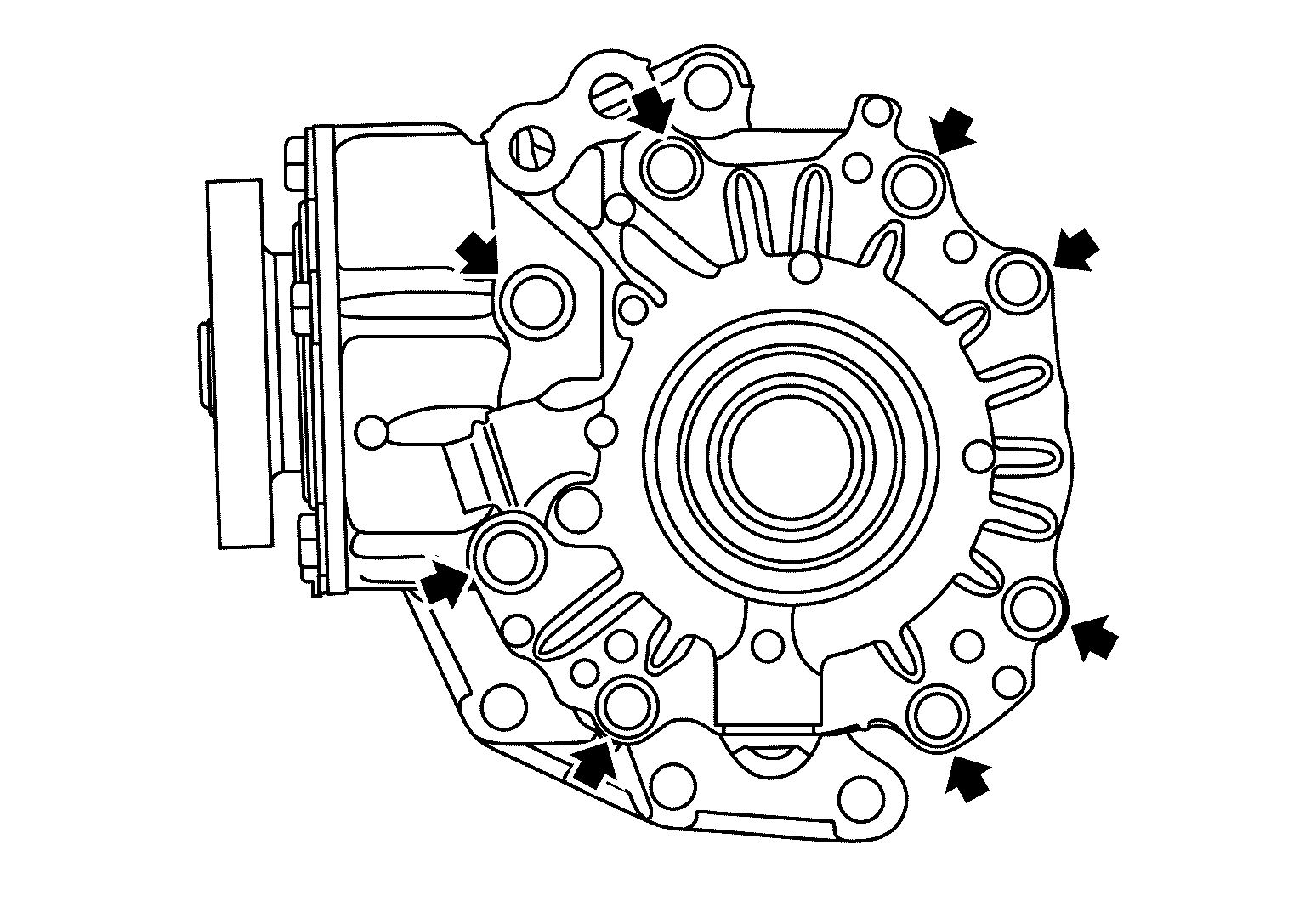

  1. Remove transfer cover mounting bolts (SYMBOL ).
    GNSJSDIA3949Z-949Courtesy of NISSAN NORTH AMERICA, INC.

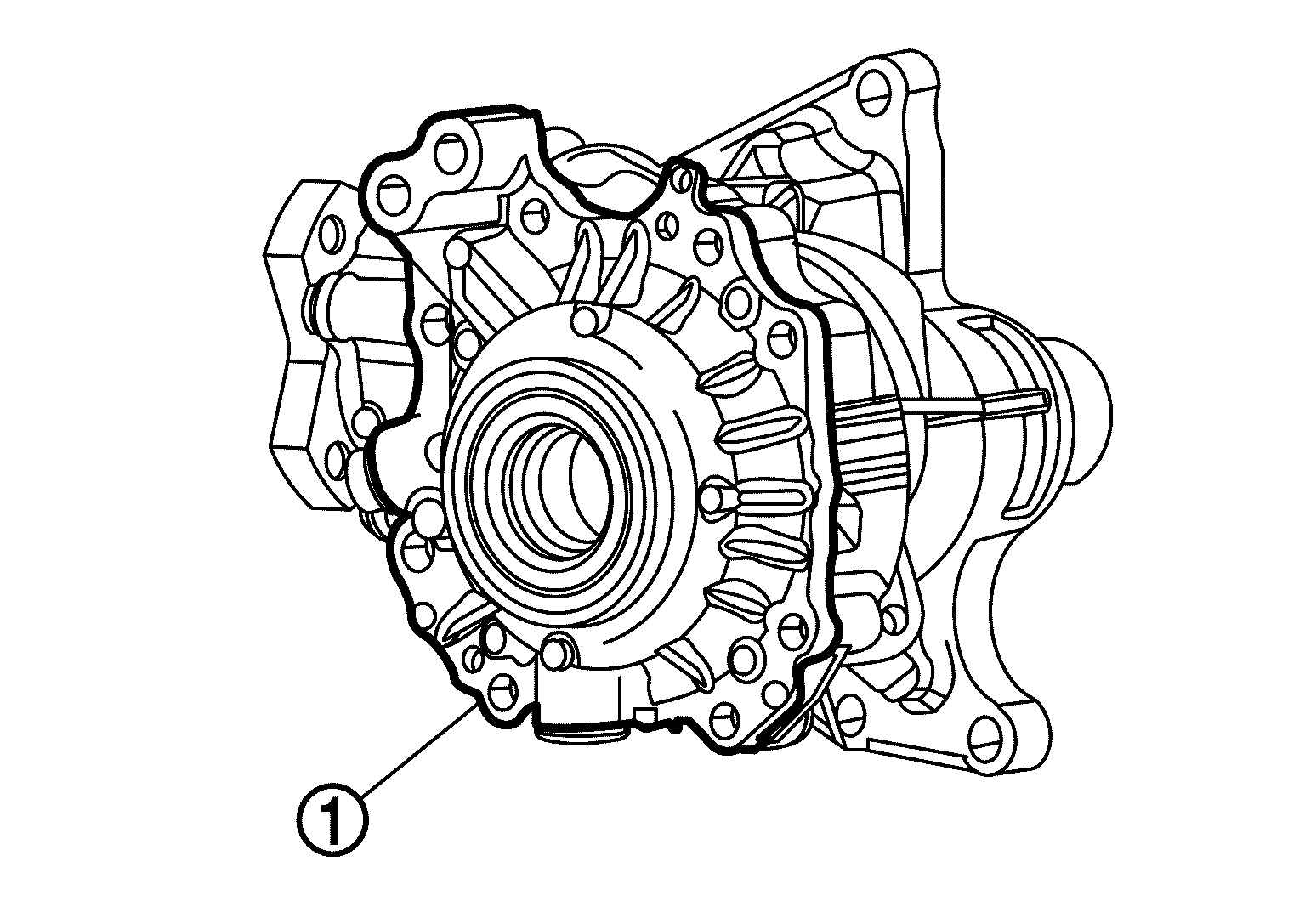

  2. Lightly tap transfer cover (1) with a plastic hammer to remove transfer cover.
    GNSJSDIA3950Z-950Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove O-ring from transfer cover.
    CAUTION:
    • Do not use a tool.
    • Do not damage transfer cover.

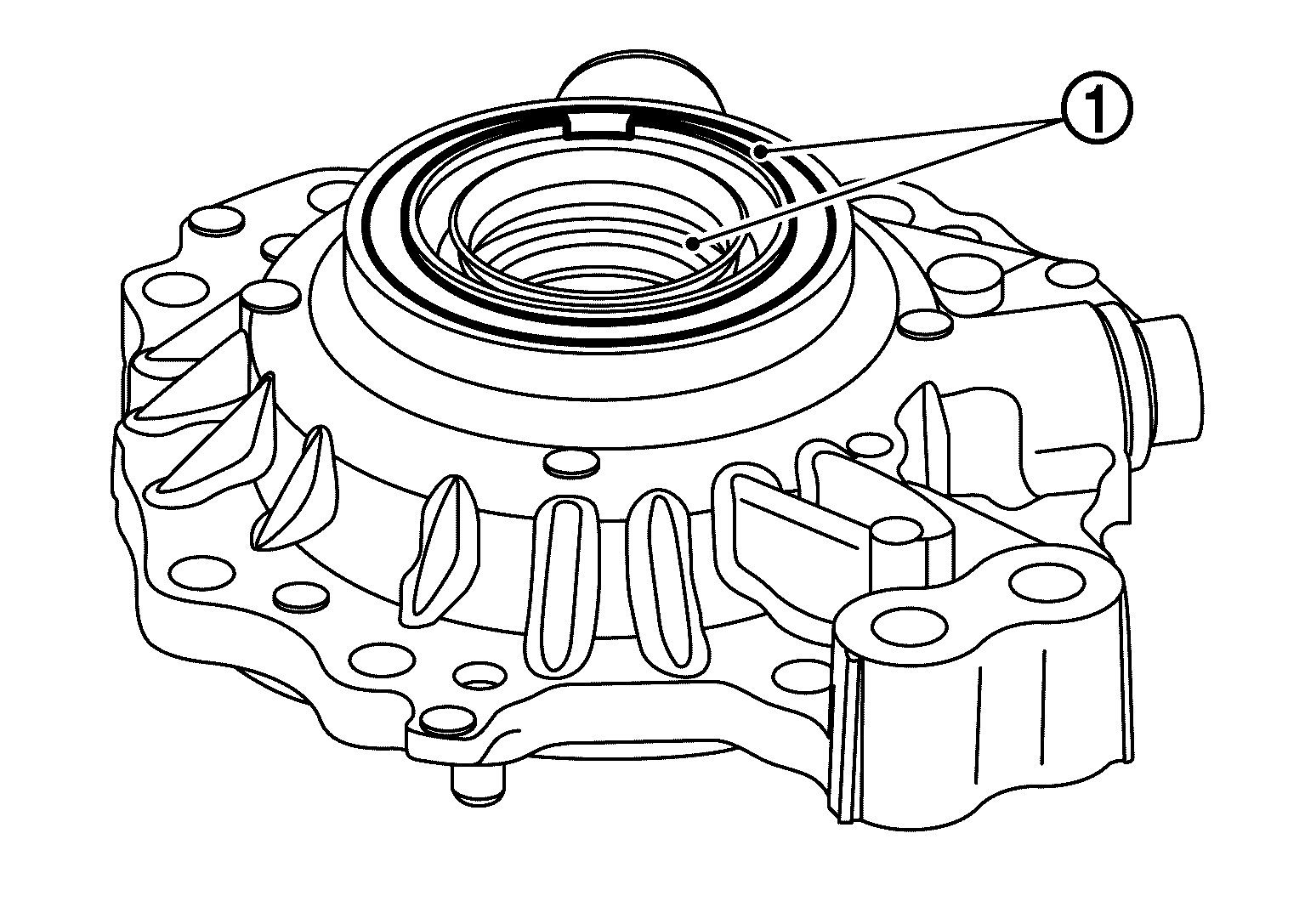

  4. Lightly tap the metal part of oil seals (1) with punch from back side of transfer cover to remove oil seals.
    GNSJSDIA3990Z-990Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: When removing, do not damage the transfer cover by scooping it out with a tool.

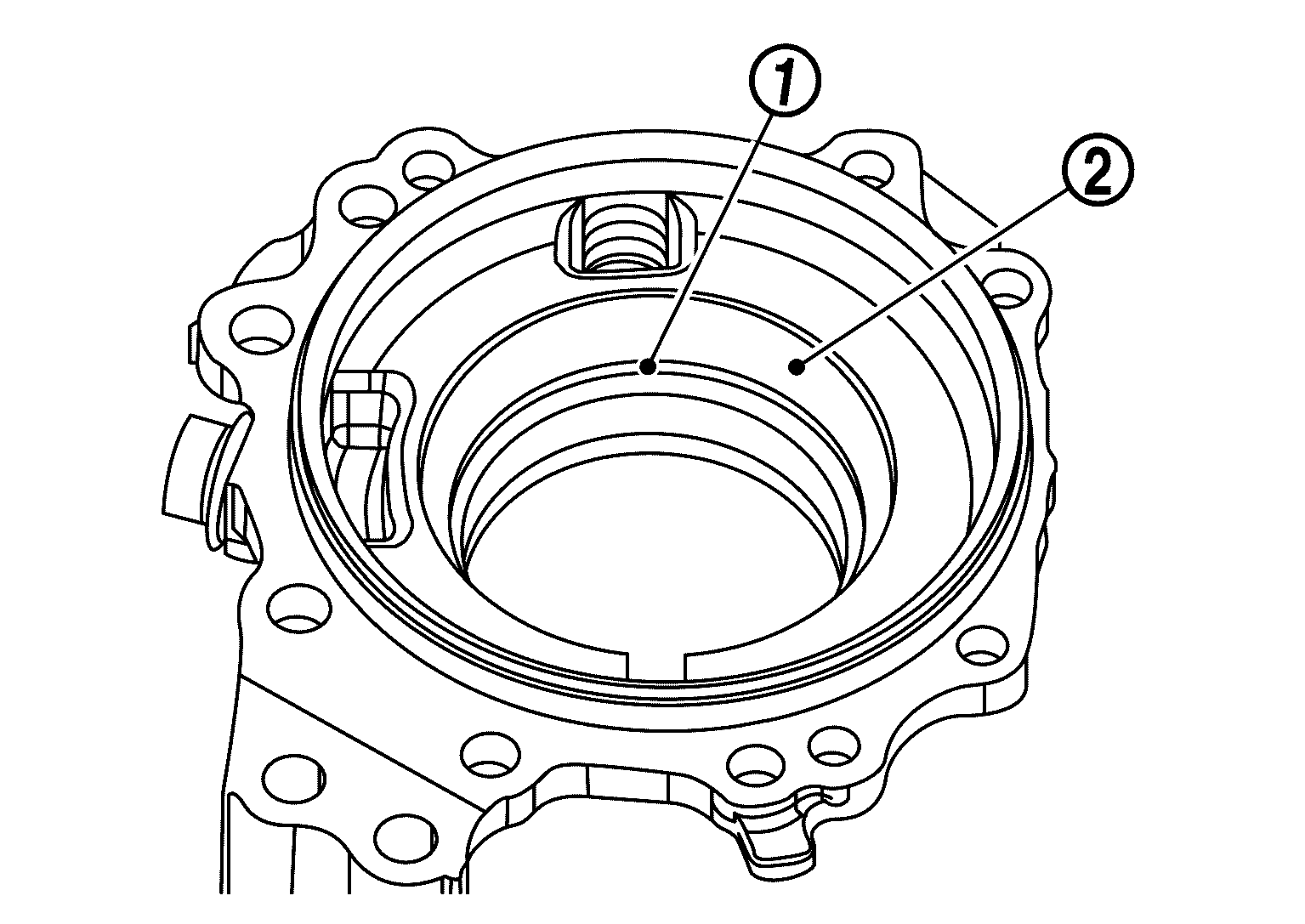

  5. Remove the ring gear bearing adjusting shim (transfer cover side) (1) and ring gear bearing outer race (transfer cover side) (2) using drift (commercial service tool).
    GNSJSDIA3992Z-992Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove drain plug and gasket.
  7. Remove filler plug and gasket.
  8. Perform inspection after disassembly. Refer to Inspection .
