Exploded View

WARNING: This page is about a different variant/trim than selected.

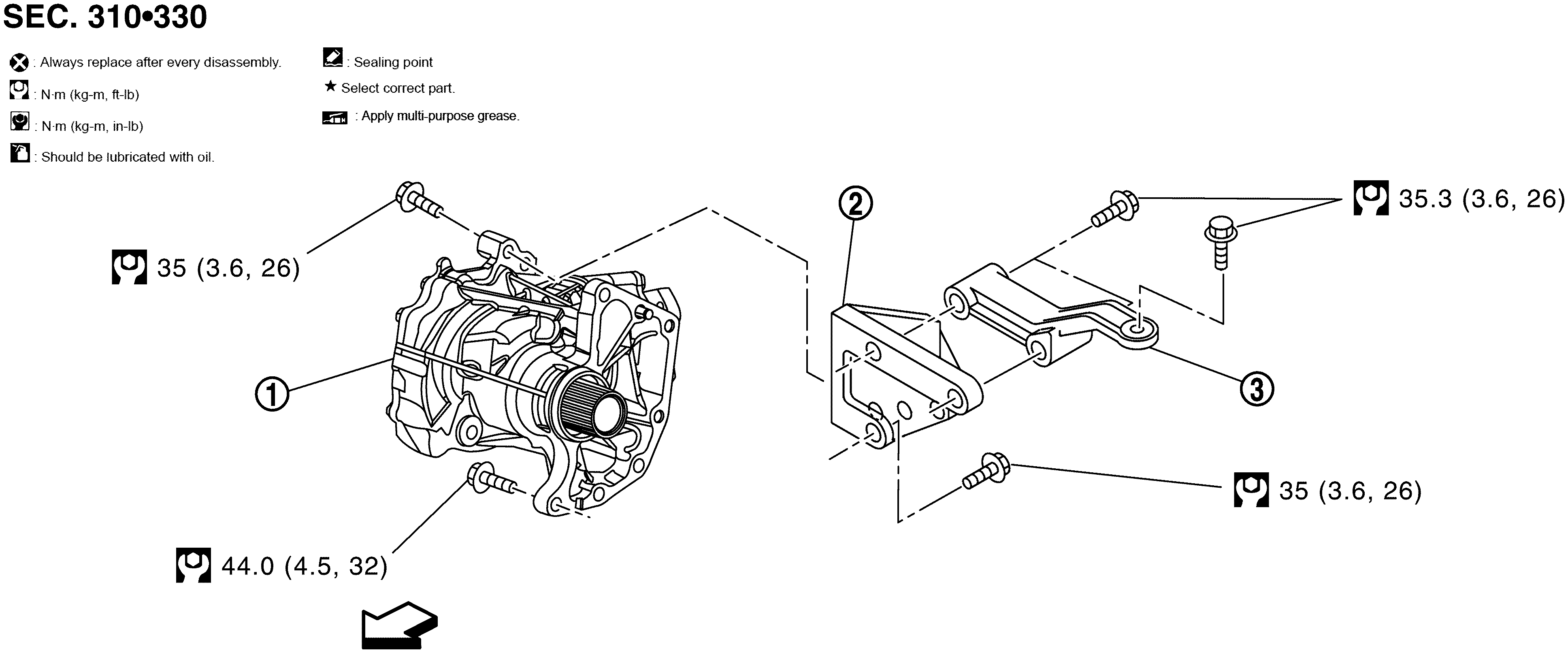

Fig 1: Transfer Assembly With Torque Specifications
GNSJSDIA4207GB-207Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transfer assembly

2.

Transfer gusset

3.

Rear gusset

SYMBOL : Vehicle front

SYMBOL : N.m (kg-m, ft-lb)
