Removal And Installation
›
Steering Column
›
Exploded View
Exploded View

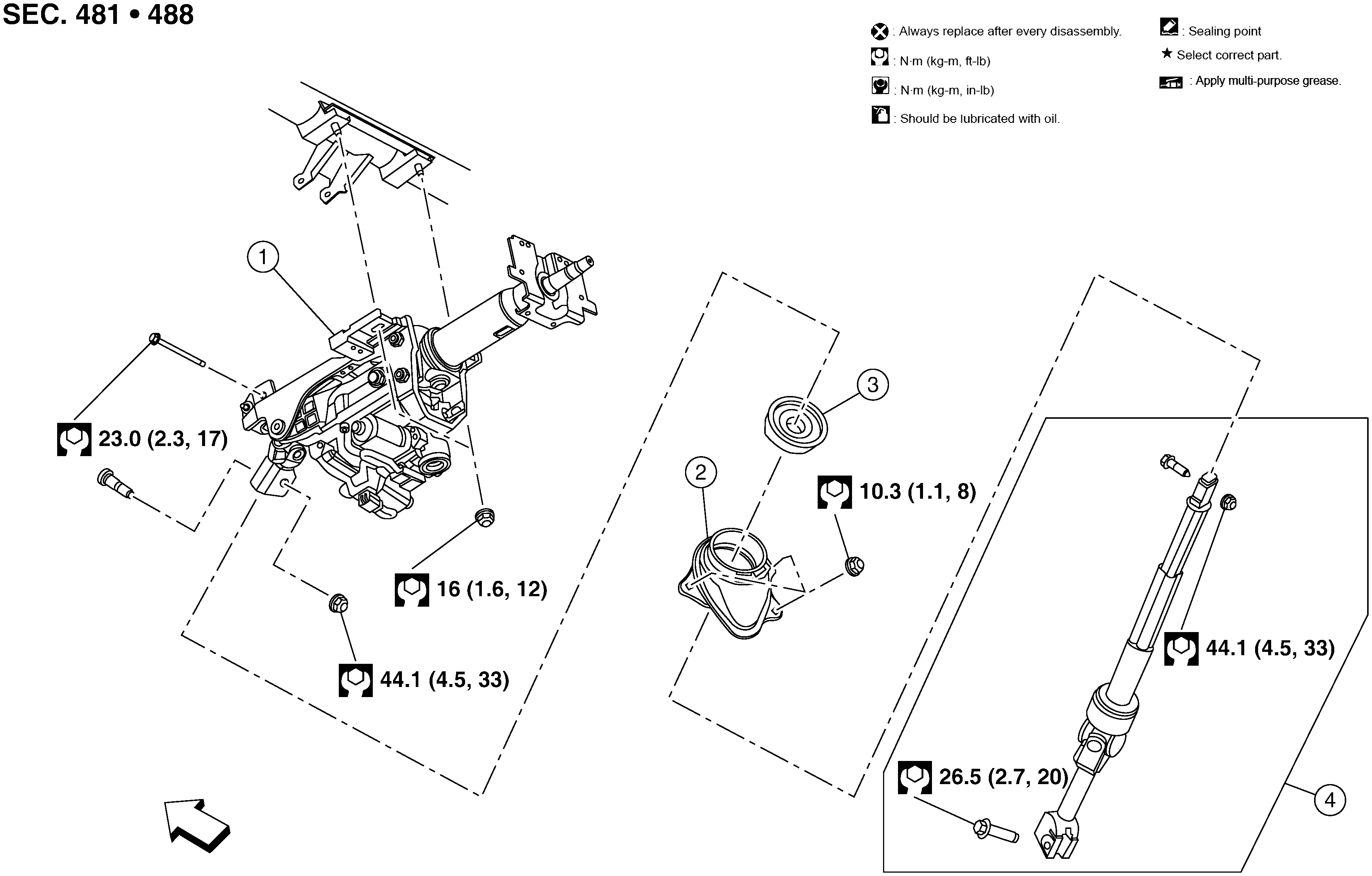

Fig 1: Steering Column With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
Hole cover
3.
Hole cover seal
4.
Intermediate shaft
Courtesy of NISSAN NORTH AMERICA, INC.
