CVT Oil Warmer
›

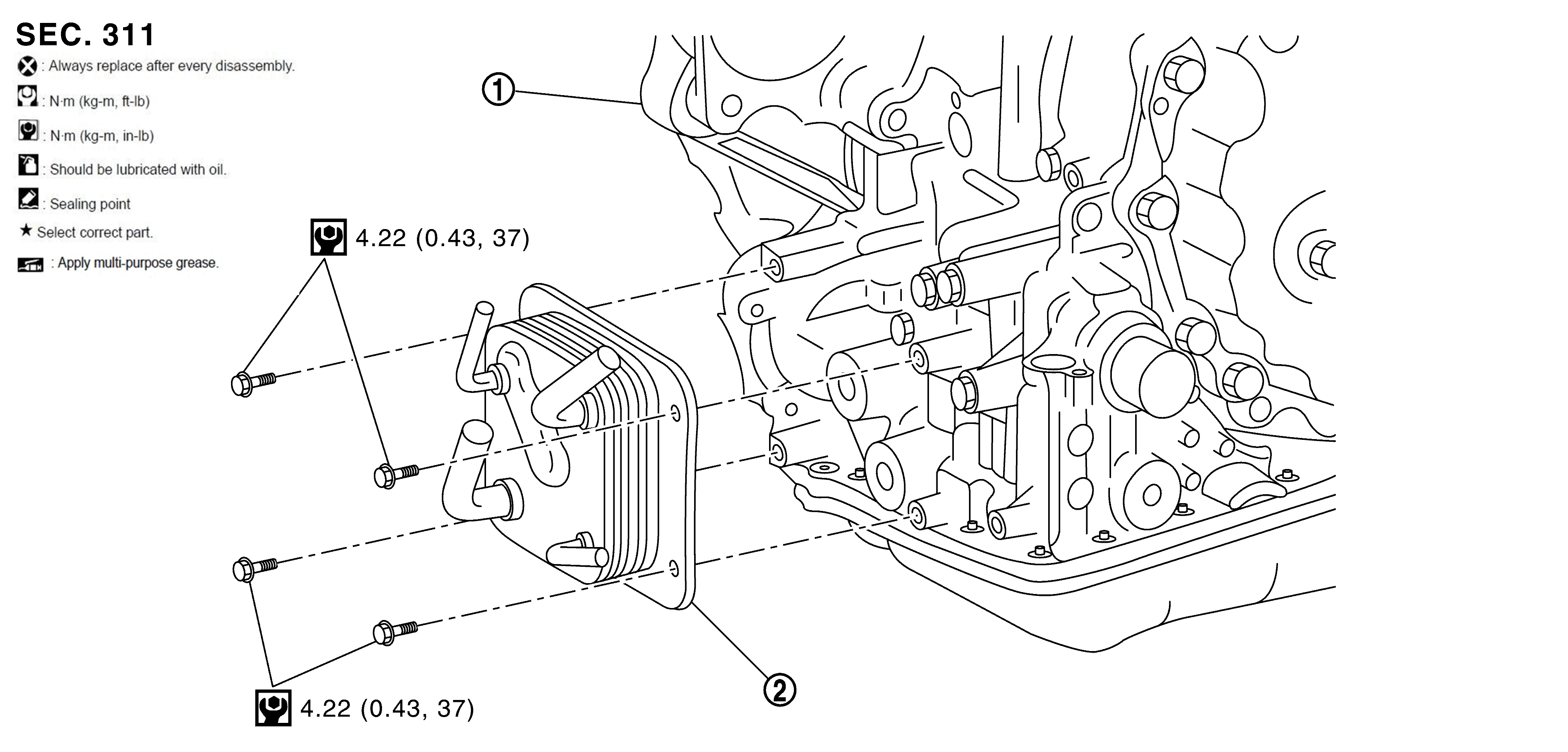

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
Transaxle assembly
CVT oil warmer
: Always replace after every disassembly.
: N.m (kg-m, in-lb)
