Removal and Installation: Removal

  1. Remove the battery tray. Refer to Removal and Installation .
  2. Remove the starter motor. Refer to Removal and Installation .

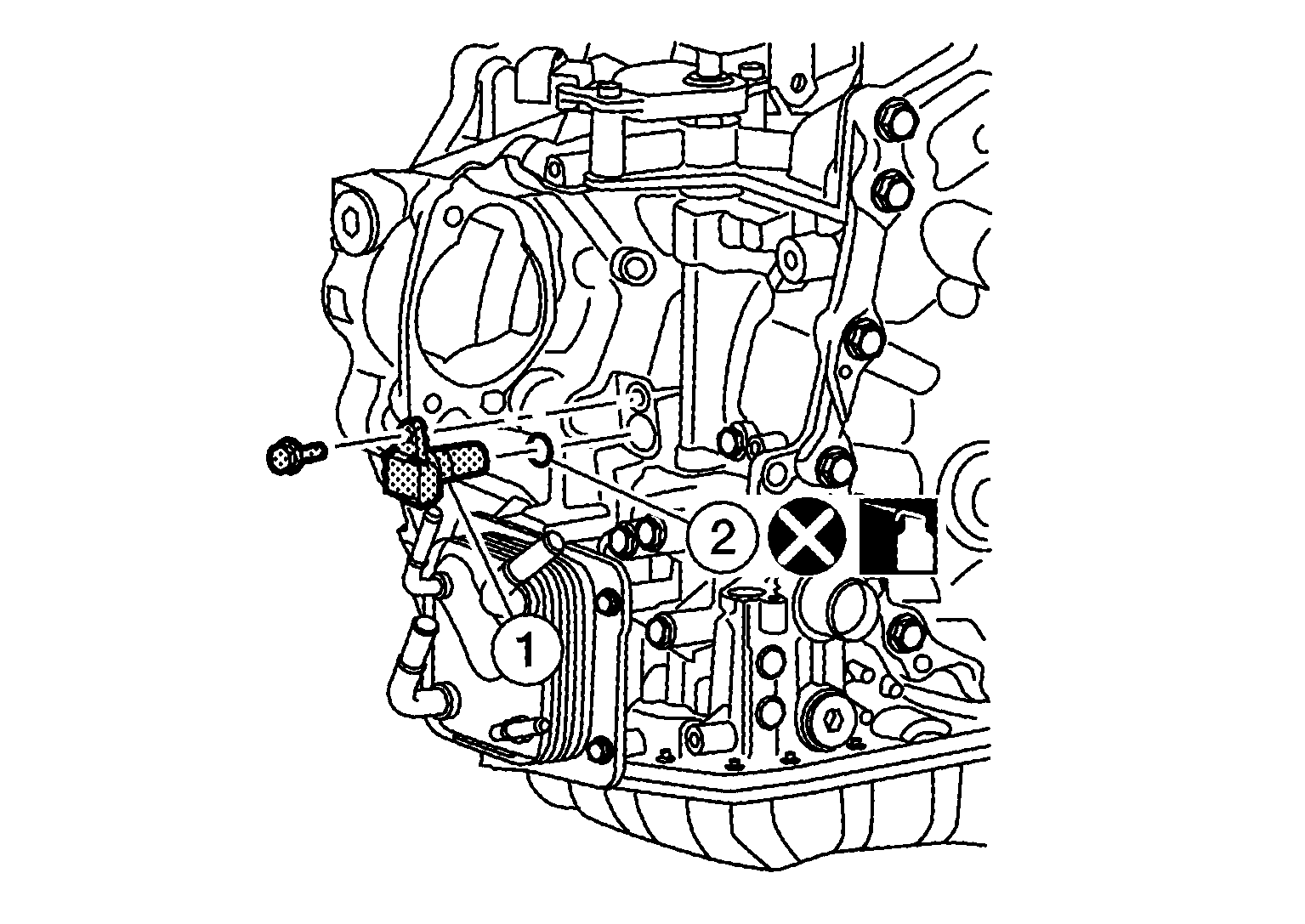

  3. Disconnect the harness connector from the input speed sensor (1).
    GNSDB114060Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the input speed sensor bolt, then the input speed sensor (1).
  5. Remove the O-ring (2) from the input speed sensor (1).
    CAUTION: Do not reuse O-ring.
