Exploded View

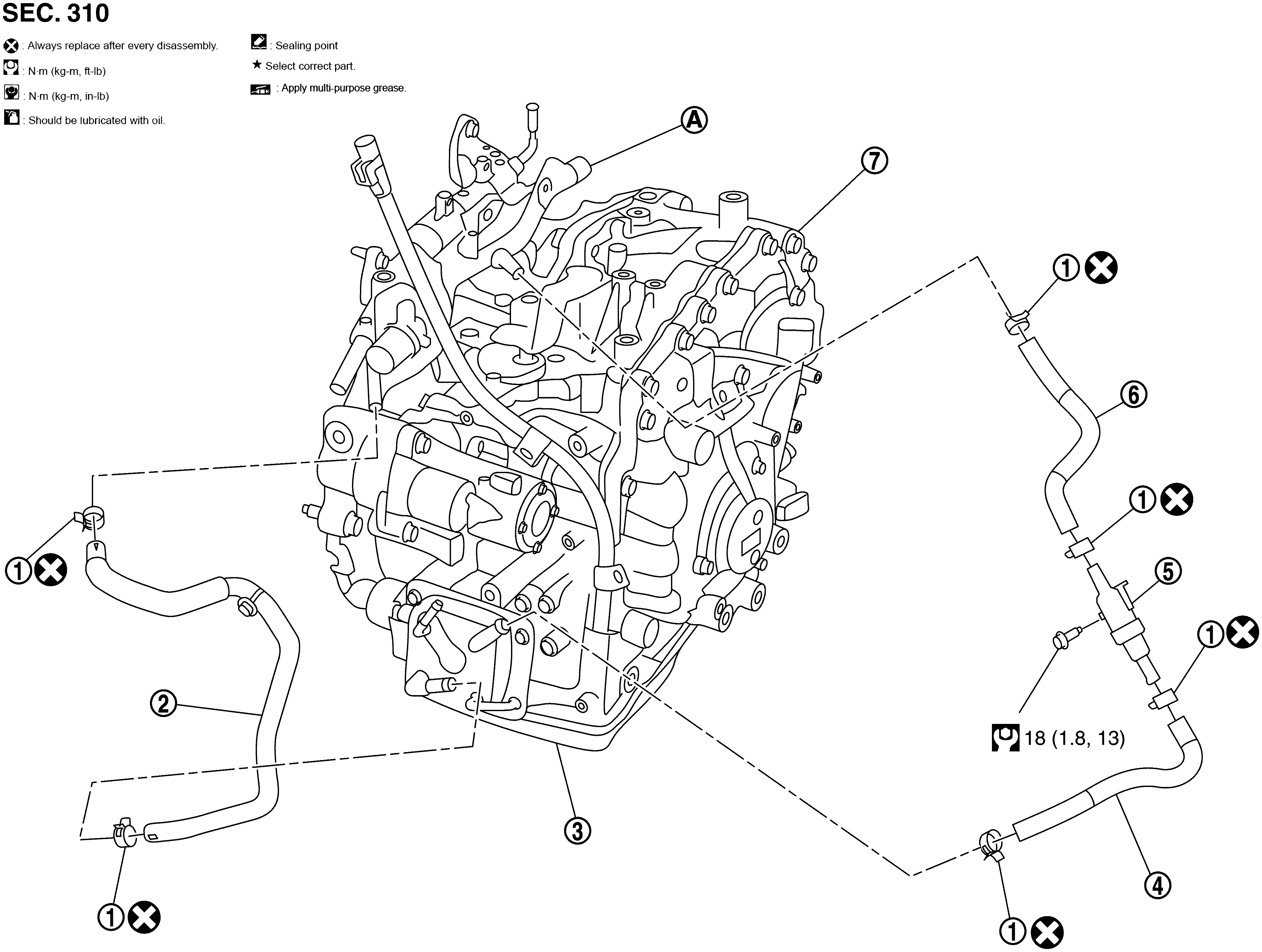

Fig 1: CVT Water Hose With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Hose clamp	CVT water hose A	Transaxle assembly
CVT water hose B	Heater thermostat	CVT water hose C
Transaxle assembly
Water outlet
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
