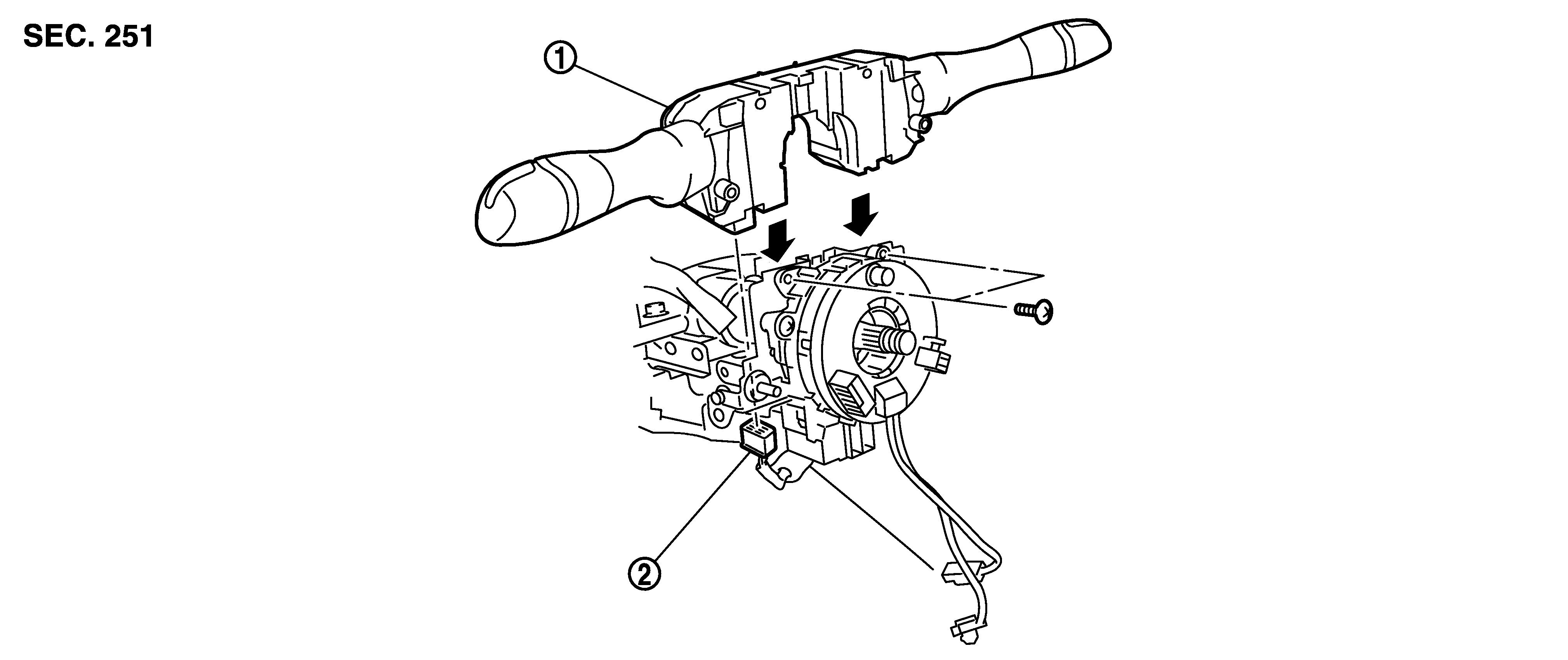

COMBINATION SWITCH : Exploded View

GNSJMMIA0328Z-328

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Combination switch

2.

Combination switch connector
