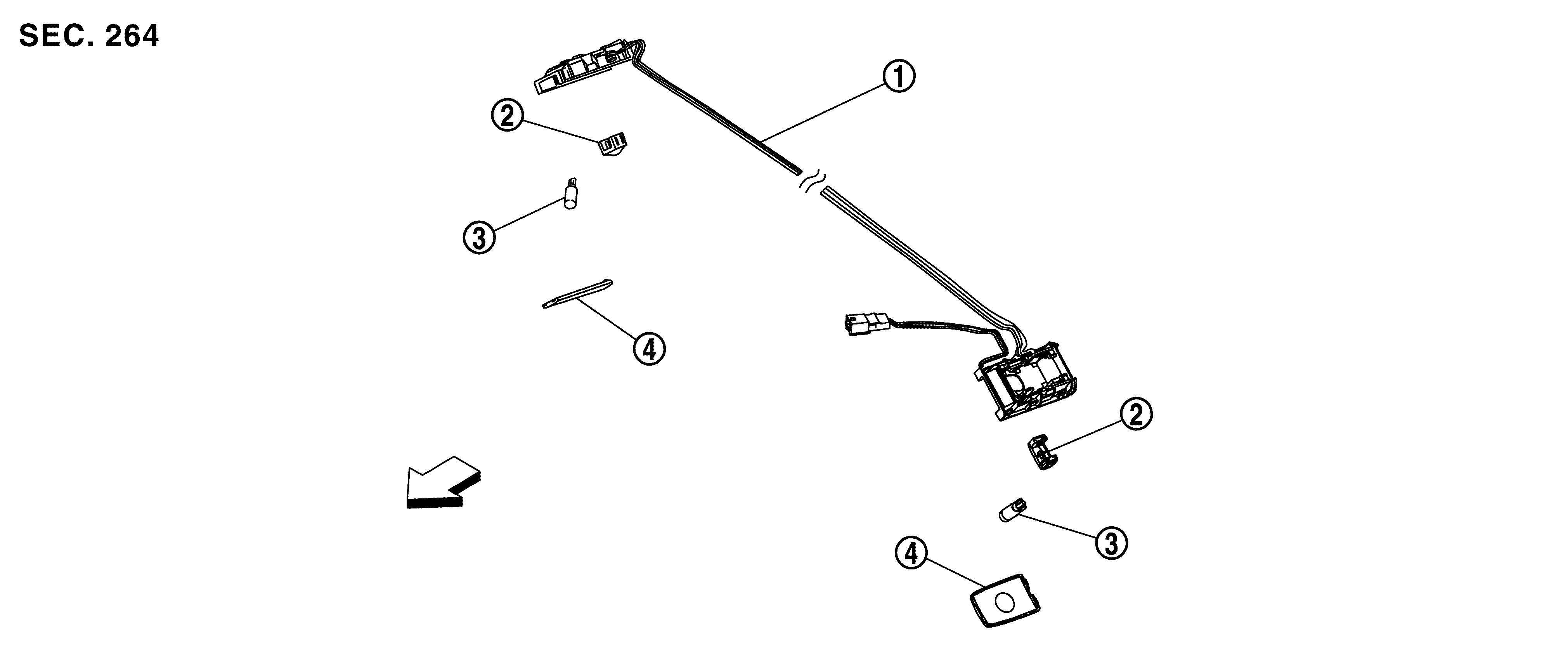

Exploded View

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Personal lamp assembly	2.	Personal lamp switch	3.	Bulb
4.	Lens
	: Vehicle front
