Exploded View

WARNING: This page is about a different car, the 2020 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

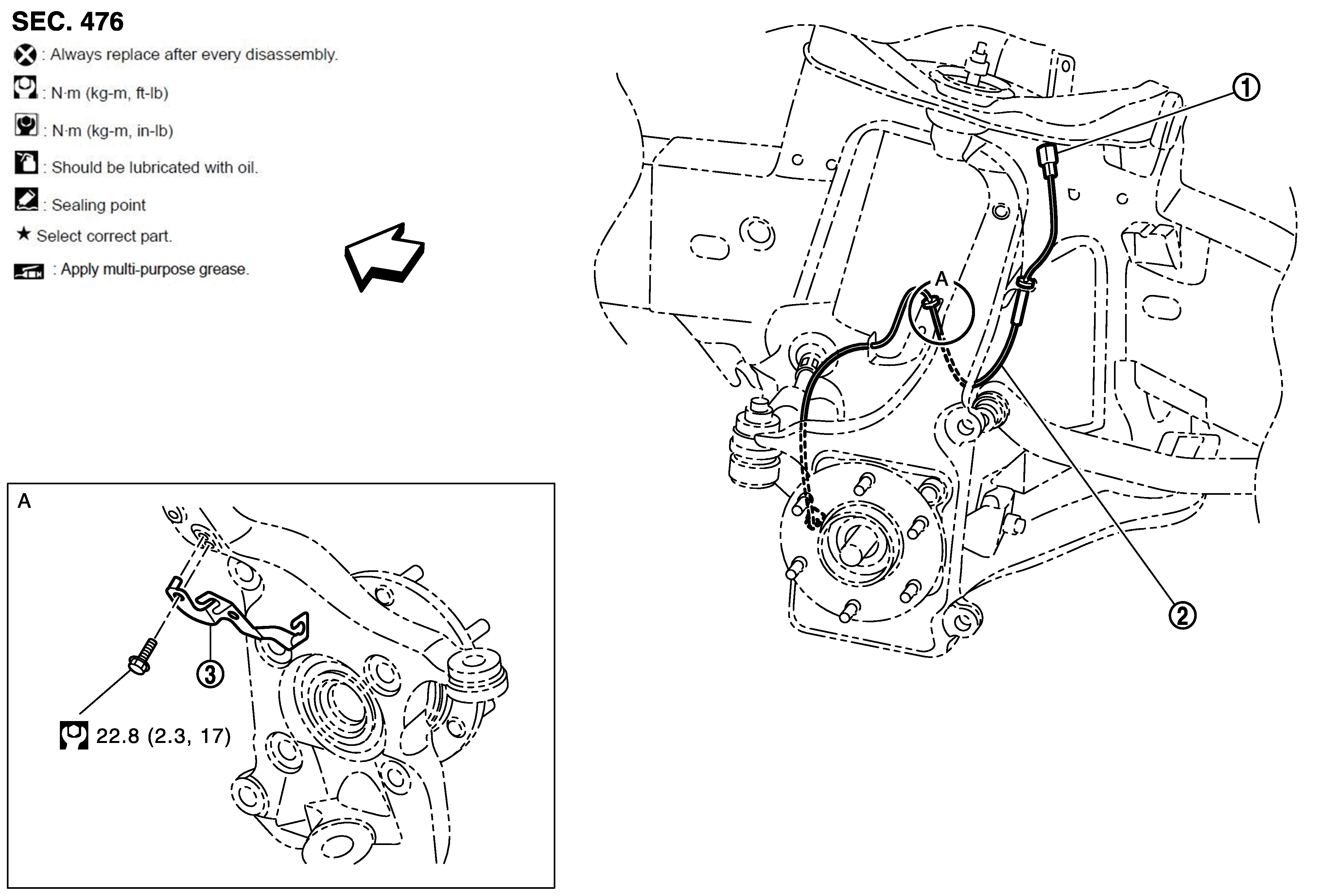

Fig 1: Front Wheel Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Front LH wheel sensor harness connector

Front LH wheel sensor

Bracket

: Vehicle front
	: N.m (kg-m, ft-lb)

NOTE: Front RH wheel sensor is symmetrically opposite of LH.
