Exploded View

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

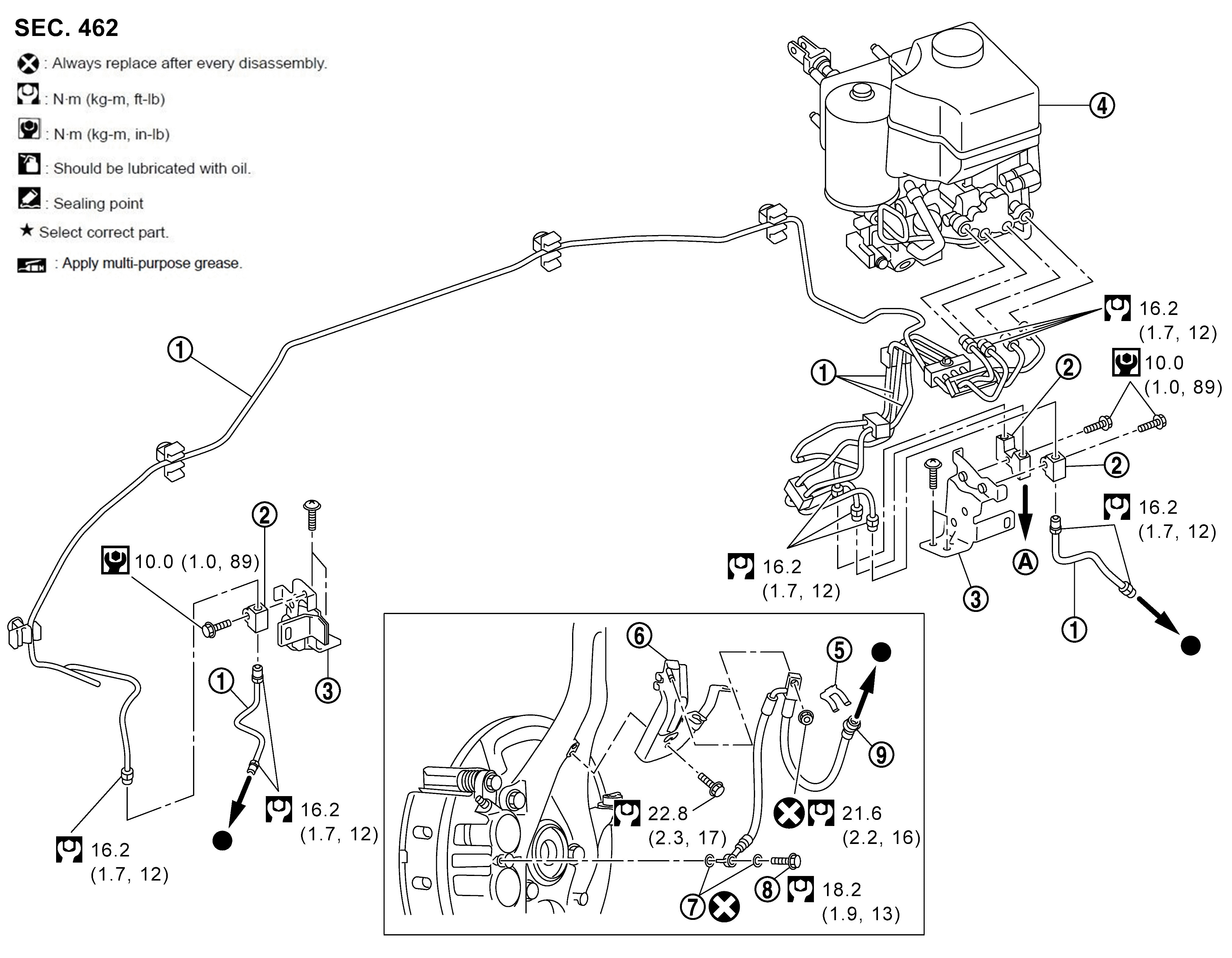

Fig 1: FRONT BRAKE PIPING With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Brake tube	Connector	Connector bracket
	Hydraulic booster assembly	Lock plate	Brake hose bracket
	Copper washer	Union bolt	Brake hose
	To rear brake tube. Refer to Exploded View .
: Indicates that the part is connected at points with same symbol in actual vehicle.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
: Always replace after every disassembly.
