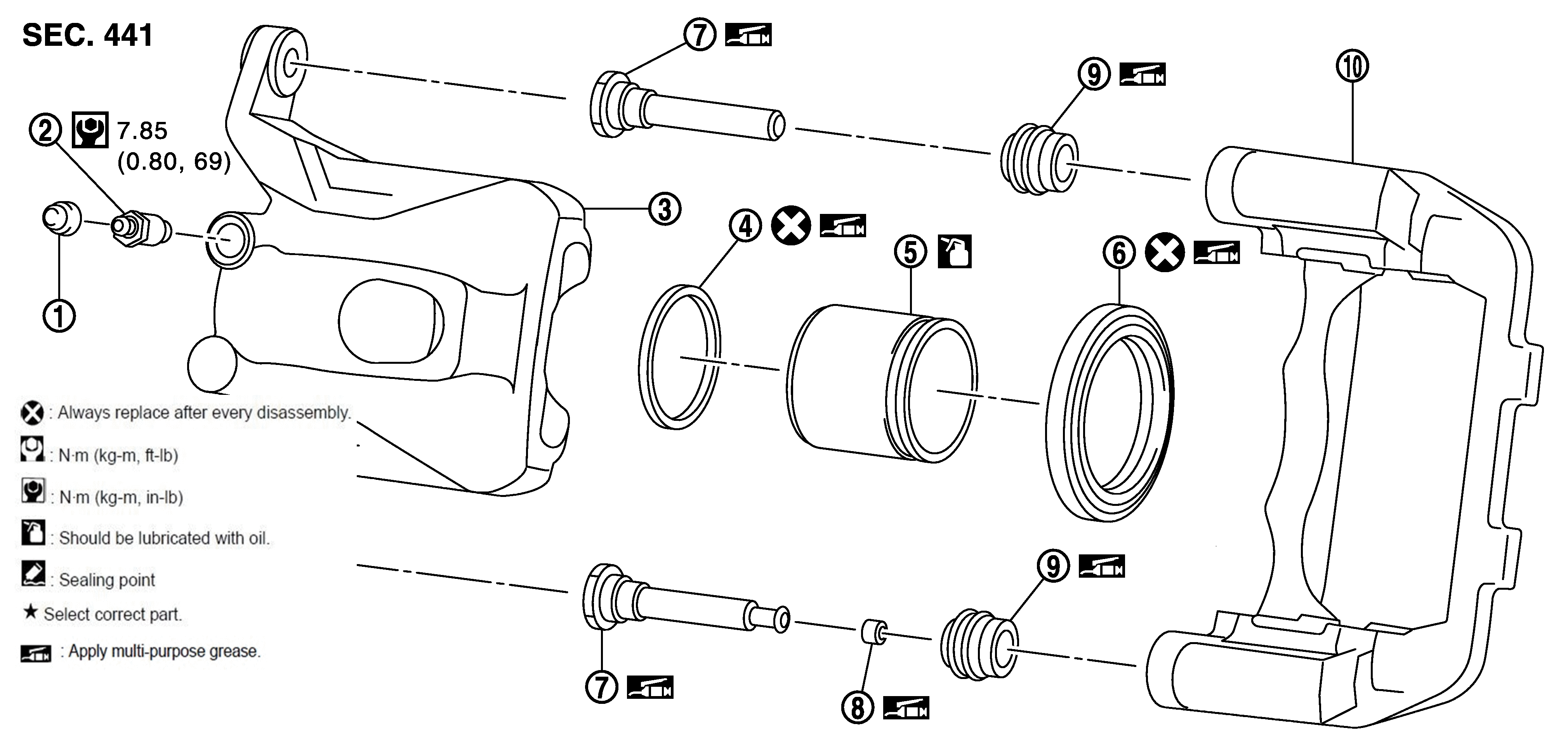

Exploded View: Disassembly
WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Cap
|
|
Bleeder valve
|
|
Cylinder body
|
|
|
Piston seal
|
|
Piston
|
|
Piston boot
|
|
|
Sliding pin
|
|
Bushing
|
|
Sliding pin boot
|
|
|
Torque member
|
|
: Apply rubber grease.
|
|
: Apply brake fluid
|
|
: N.m (kg-m, in-lb)
|
|
: Always replace after every disassembly.
|
