System Display

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

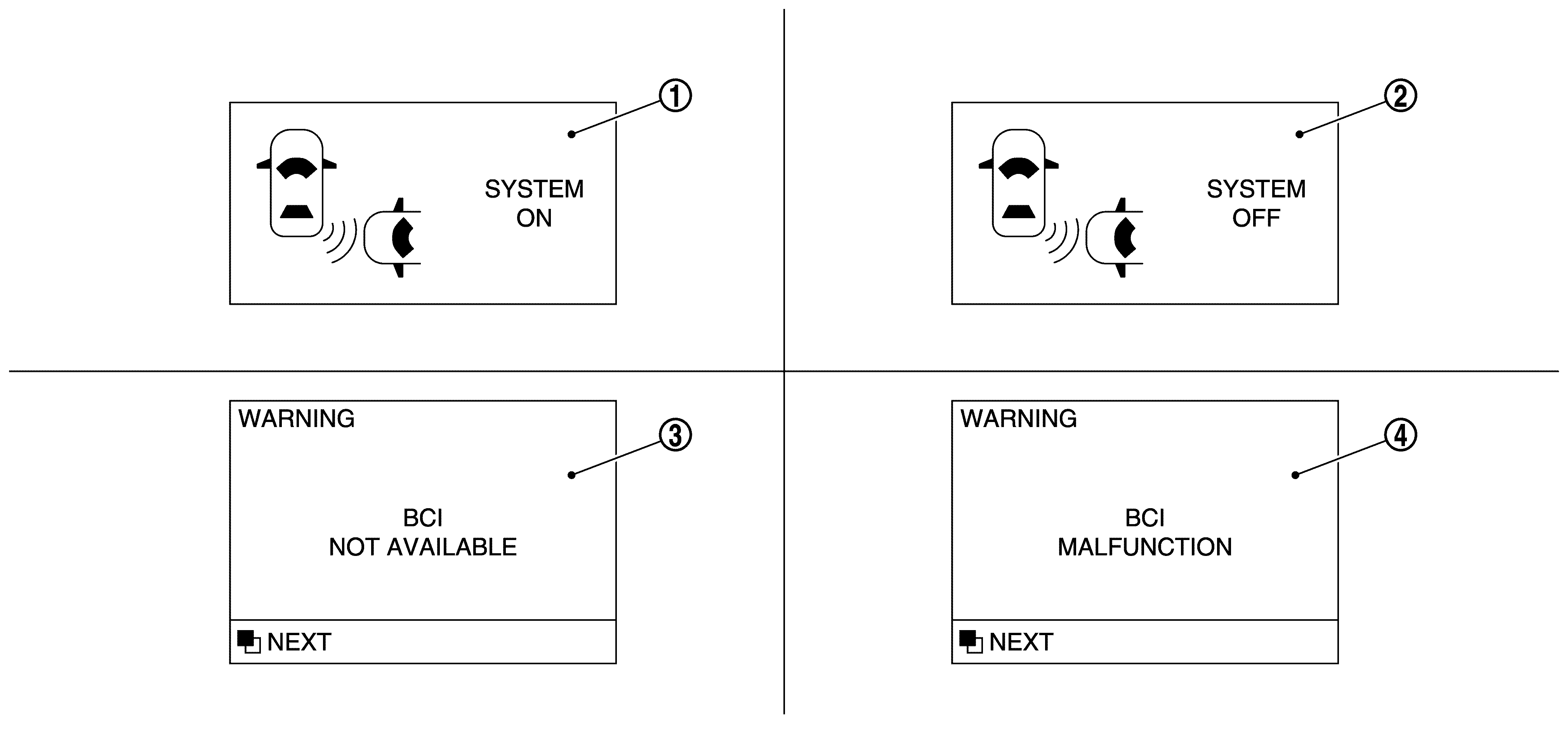

No.	Name	Description
	Intelligent Back-up Intervention ON indicator	Turns ON when the selector lever is placed in "R" position.
	Intelligent Back-up Intervention OFF indicator	Turns OFF when the selector lever is placed in "R" position.
	Intelligent Back-up Intervention not available indicator	Turns ON when the following conditions are satisfied: When the accelerator pedal actuator detects that the internal motor temperature is high [over approximately 100°C (212°F)]. When radar blockage is detected.
	Intelligent Back-up Intervention malfunction indicator	Turns ON when Intelligent Back-up Intervention system is malfunctioning.
