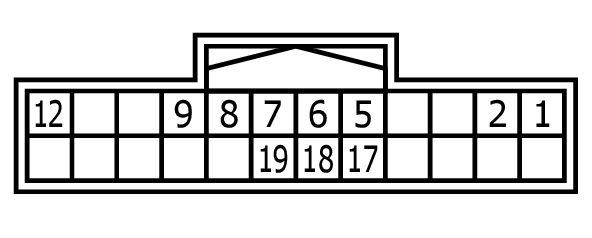

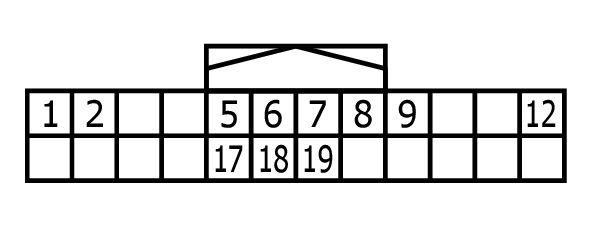

ADAS Control Unit Connector End View (B52)
Connector Types: TH24FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | L | CAN-H |
| 2 | P | CAN-L |
| 5 | B | GROUND |
| 6 | L | ITS COMMUNICATION-H |
| 7 | Y | ITS COMMUNICATION-L |
| 8 | L/B | CHASSIS COMMUNICATION-H |
| 9 | Y/B | CHASSIS COMMUNICATION-L |
| 12 | W/G | IGNITION |
