CONTROL CABLE : Exploded View

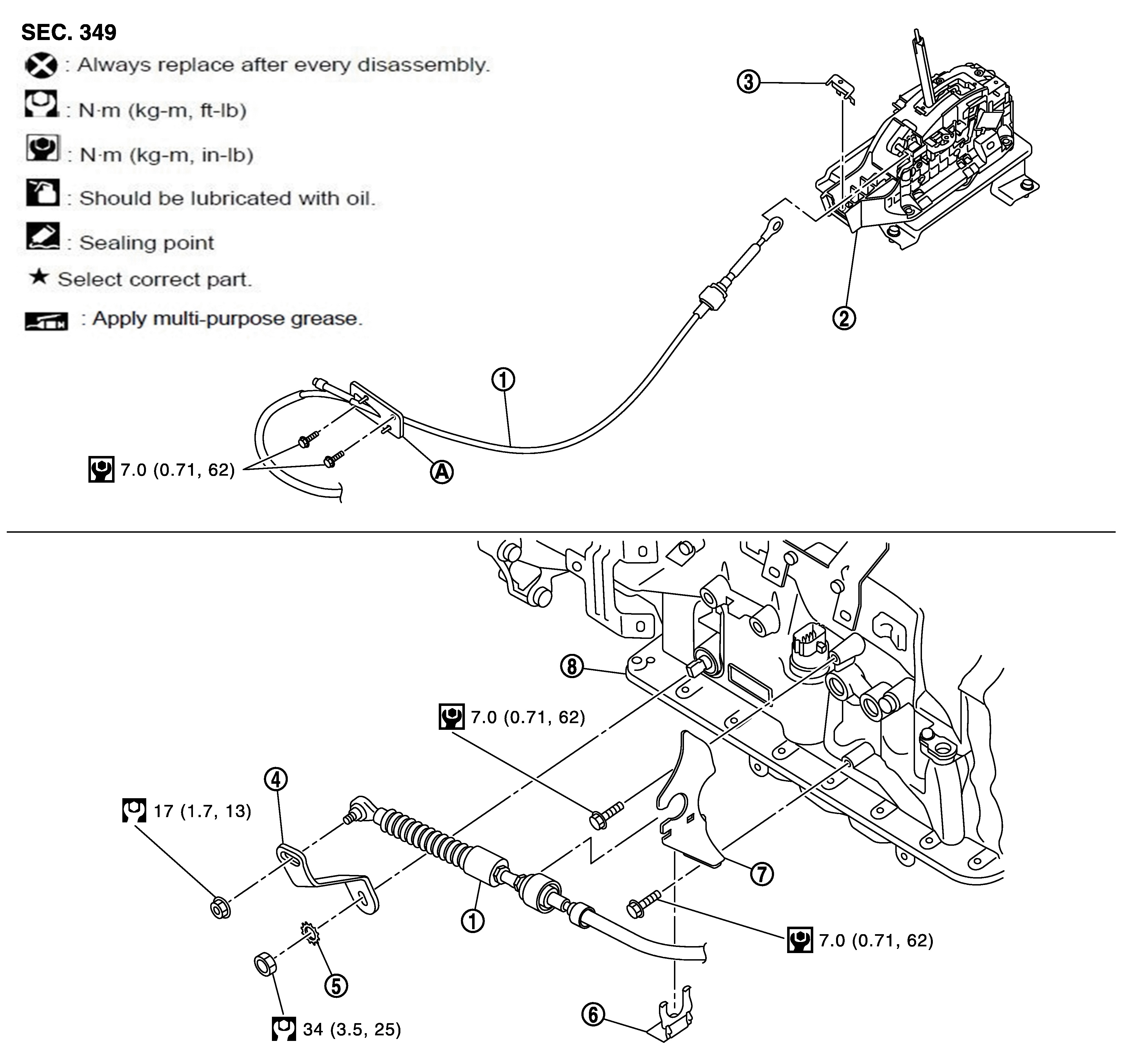

Fig 1: Transmission Control Cable Components With Torque Specifications

GNSJSDIA1589GB-589

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Control cable	2.	A/T shift selector assembly	3.	Lock plate
4.	Manual lever	5.	Washer	6.	Lock plate
7.	Bracket	8.	A/T assembly
A.	Retainer
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
