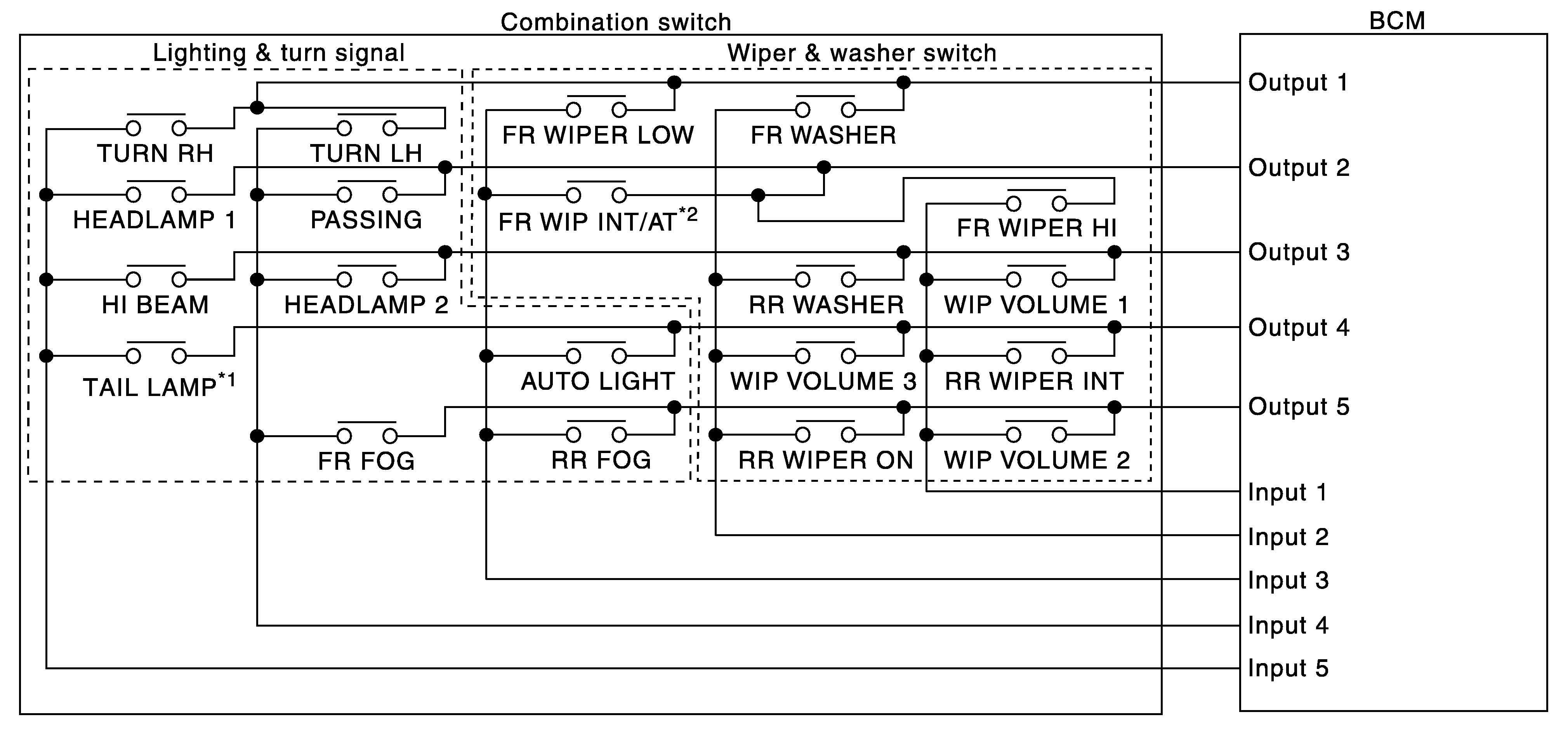

System Diagram

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

GNSJMMIA0377GB-377

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

* ¹ : TAIL LAMP switch links lighting switch 1ST and 2ND positions.
* ² : "FR WIP INT/AT" is FR WIPER INT/AUTO.
RR FOG is not applicable
