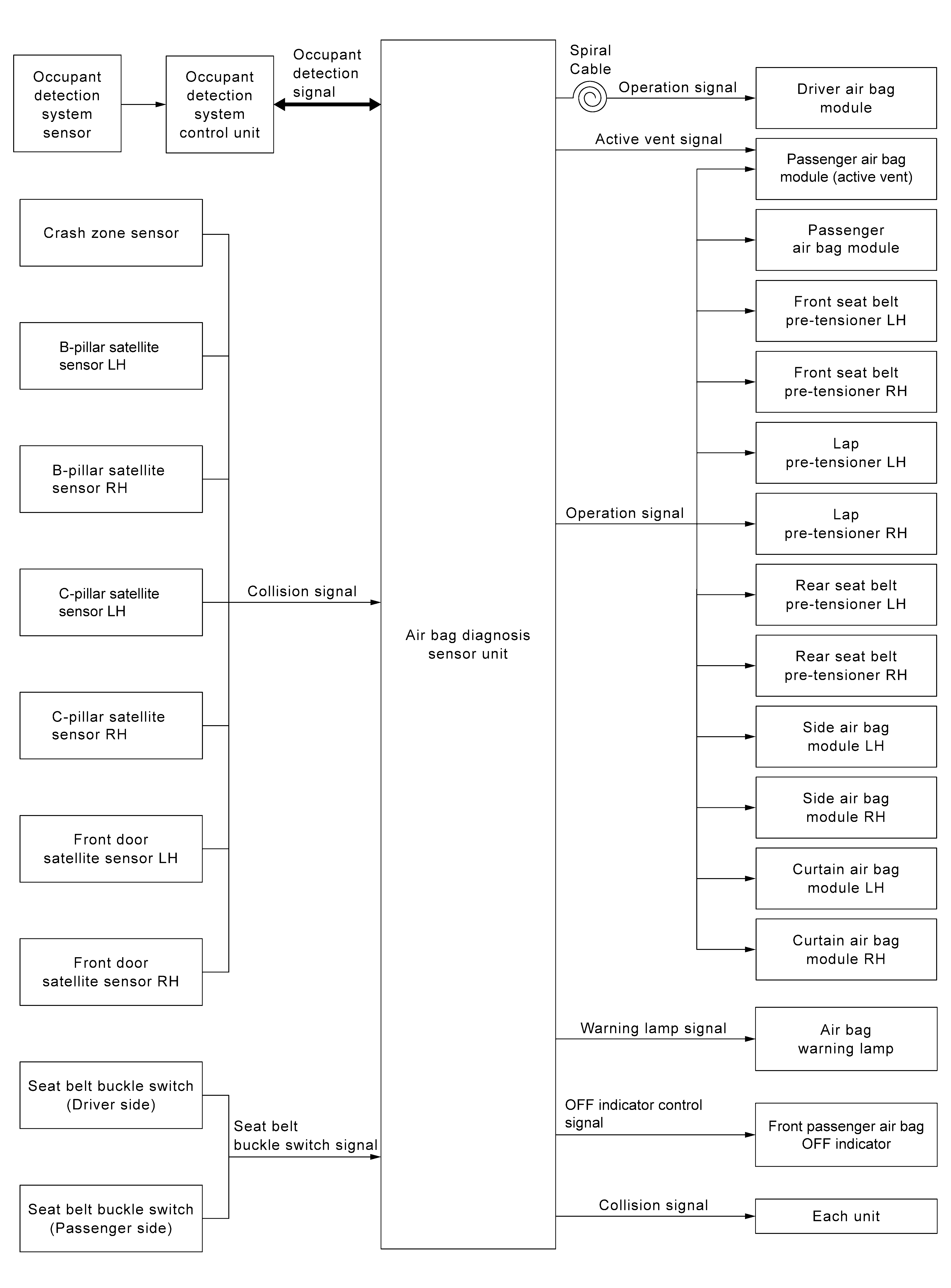

System Diagram

GNSJMHIA3832GB-832

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

For models for USA and Canada, rear seat belt pre-tensioners are not applied.
For models for Mexico, front door satellite sensors and active vent signal are not applied.
