Exploded View

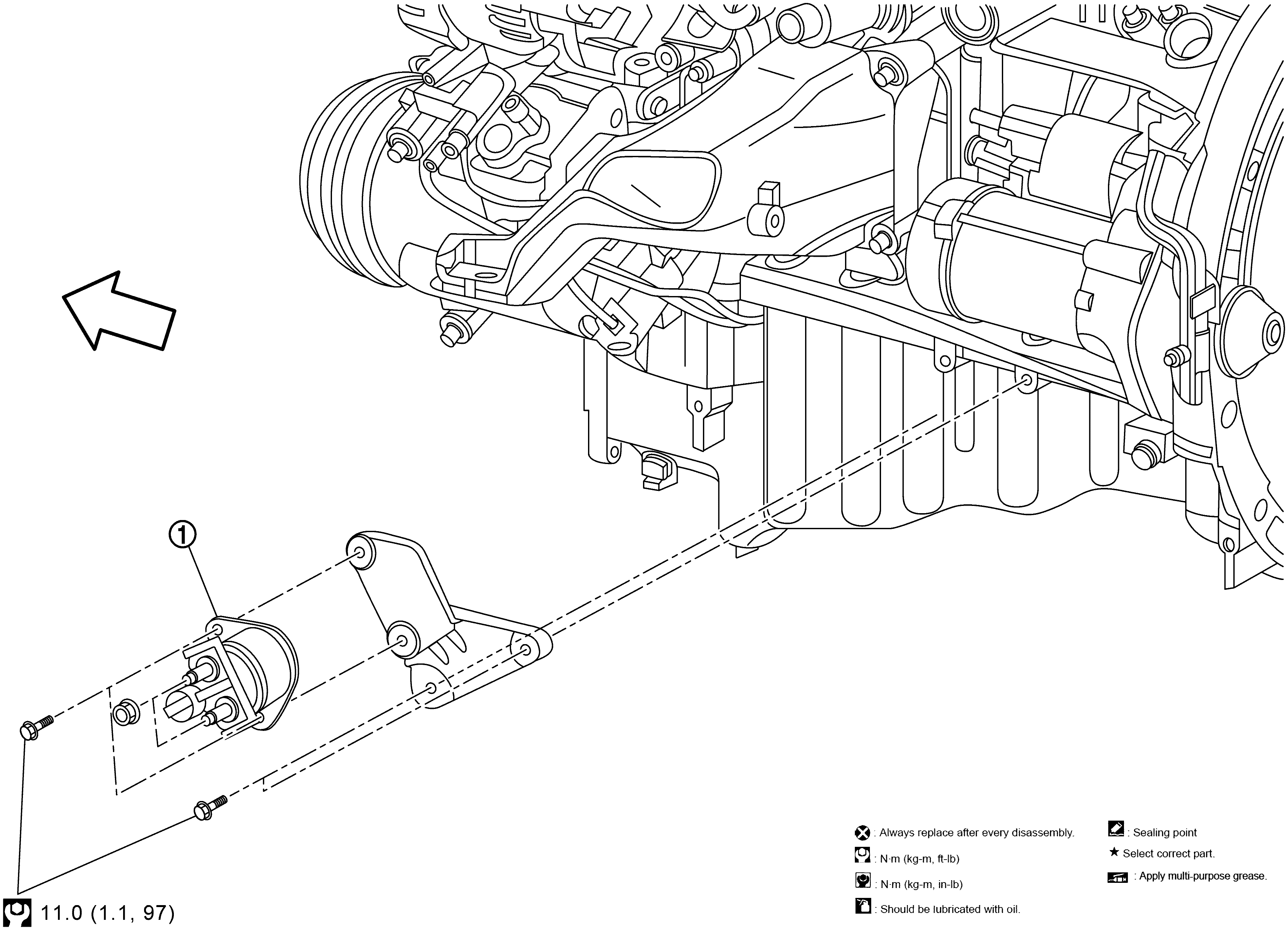

Fig 1: Engine Restart Bypass Relay Component With Torque Specification
GNSJSBIA5554GB-554Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Engine restart bypass relay



SYMBOL

: N.m (kg-m, ft-lb)



SYMBOL

: Vehicle front
