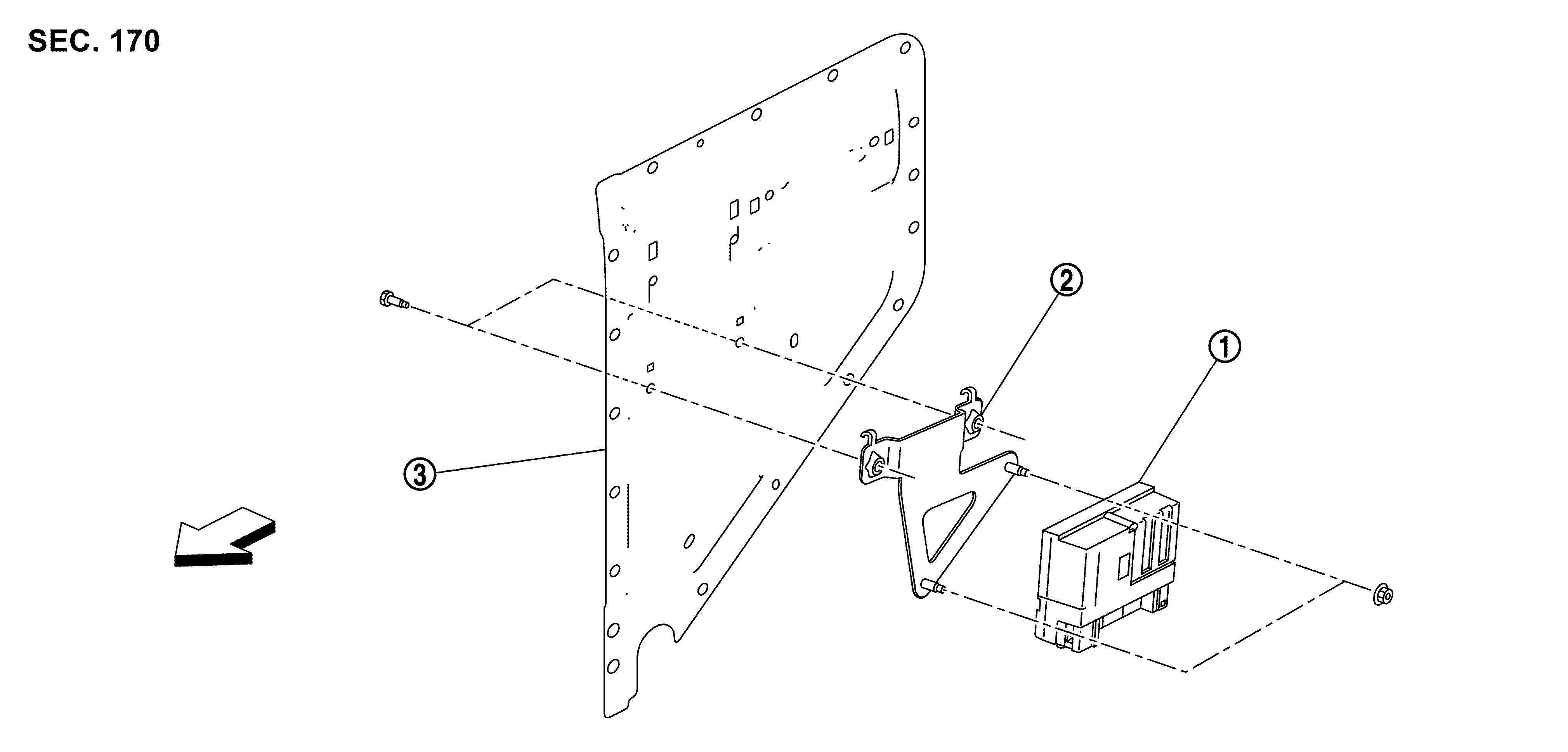

Exploded View

GNSJSBIB0619Z-619

Courtesy of NISSAN NORTH AMERICA, INC.

	Fuel pump control module		Fuel pump control module bracket		Rear pillar inner reinforcement LH
	: Vehicle front
