System Description
›
System
›
Combination Switch Reading System
›
System Description
›

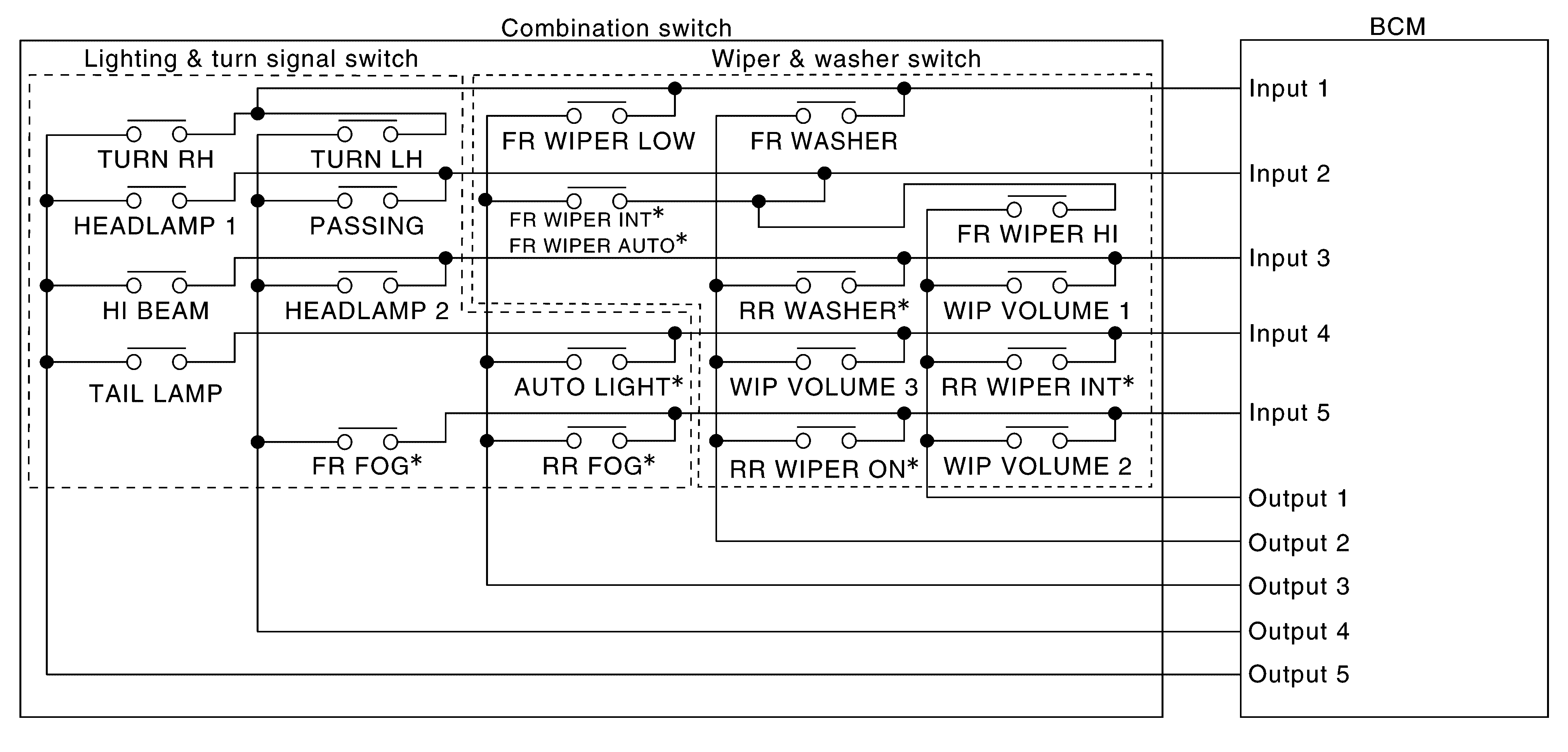

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
*: If so equipped.
TAIL LAMP switch links lighting switch 1ST and 2ND positions.
Courtesy of NISSAN NORTH AMERICA, INC.
