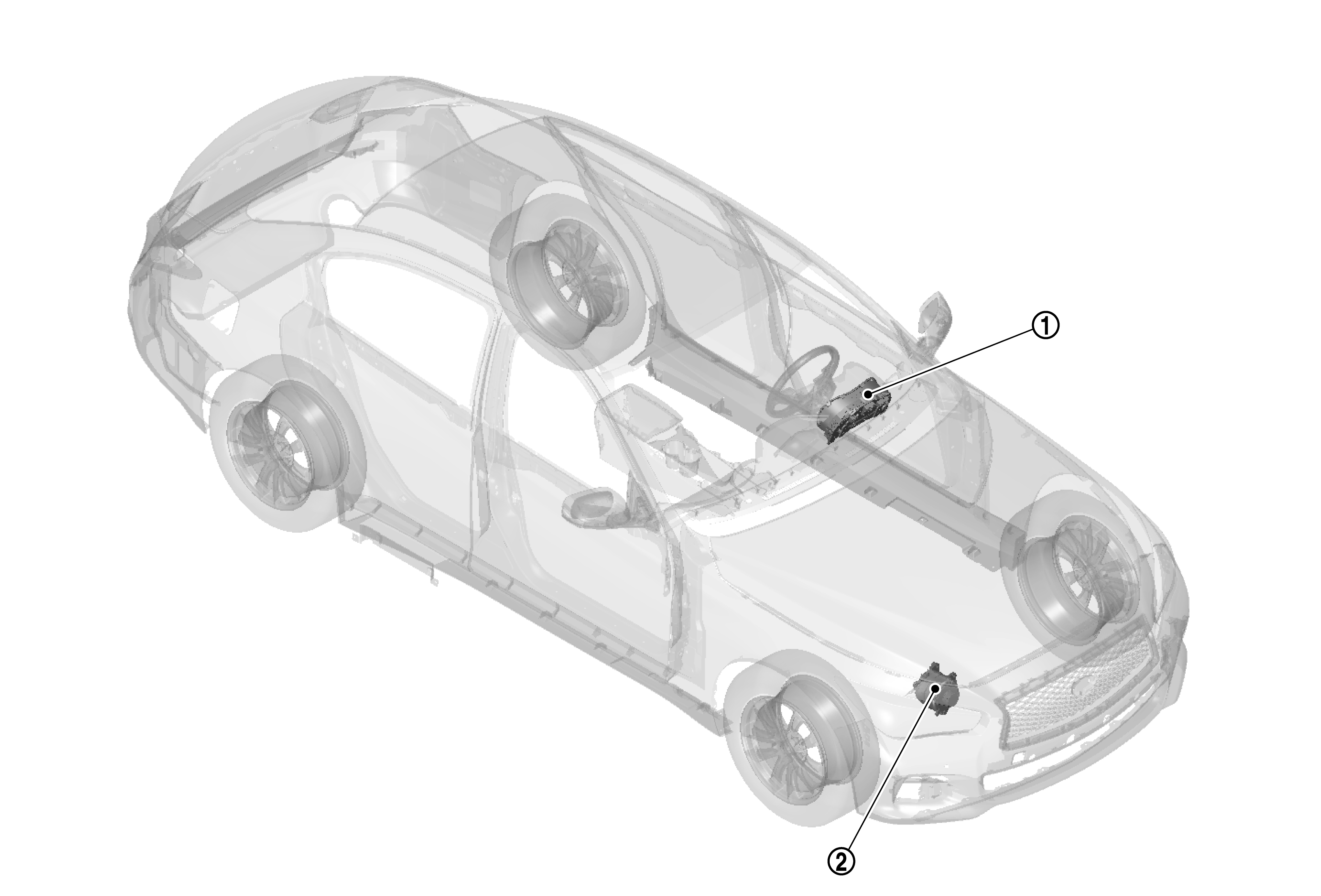

Component Location

No.

Component

Function

Combination meter

(Charge warning lamp)

The IC voltage regulator warning function activates to illuminate the charge warning lamp, if any of the following symptoms occur while alternator is operating:

• Excessive voltage is produced.
• No voltage is produced.

Alternator

Refer to Alternator .
