Removal and Installation: Removal

  1. Remove the trunk side finisher LH. Refer to Removal and Installation .
  2. Disconnect fuel pump control module (FPCM) connector.

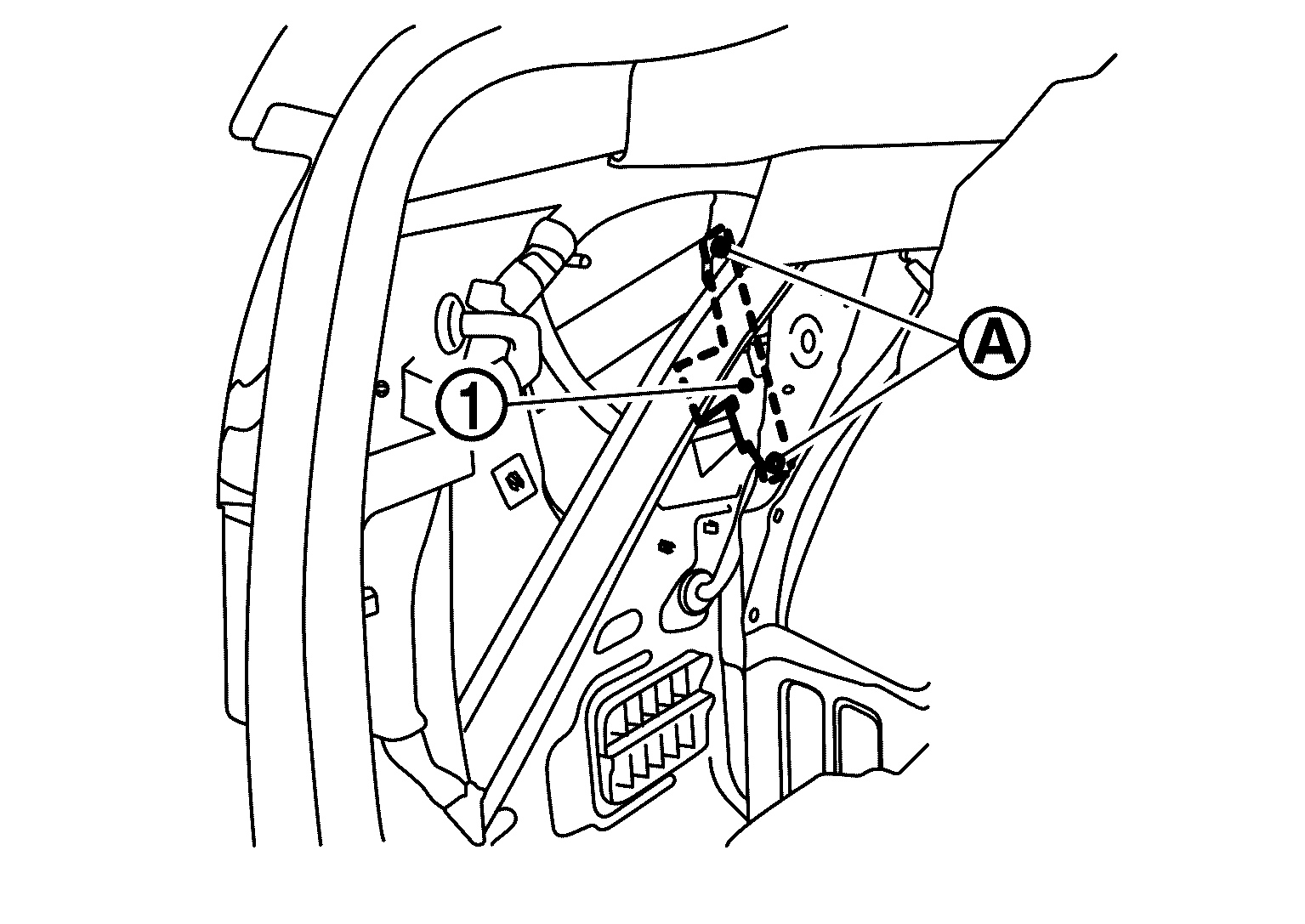

    GNSJSBIA3989Z-989Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove mounting bolts SYMBOL and then remove fuel pump control module (FPCM) SYMBOL .
