Removal And Installation
›
Exploded View
Exploded View

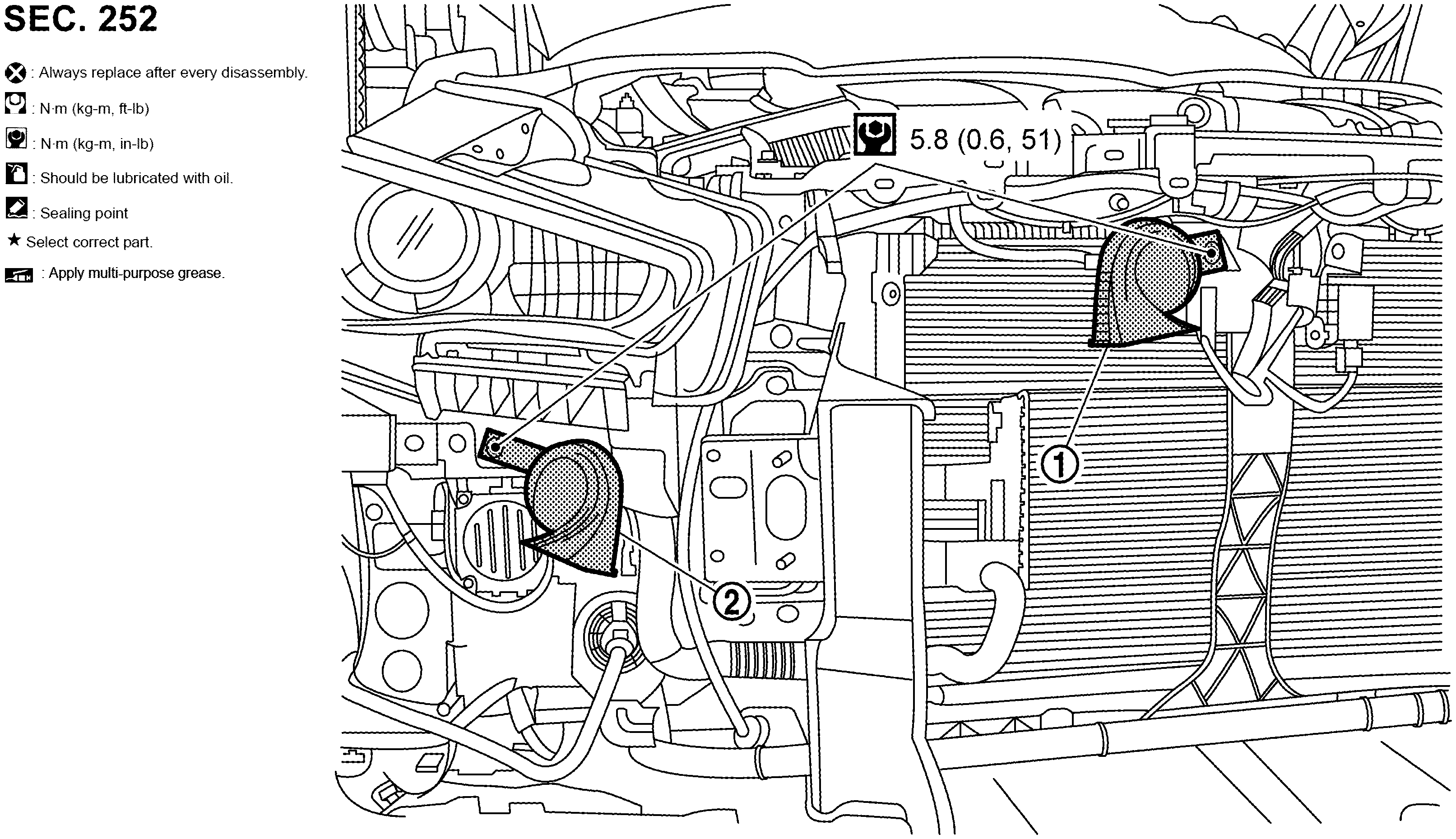

Fig 1: Horn Replacement Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Horn (high)
Horn (low)
: N.m (kg-m, in-lb)
Courtesy of NISSAN NORTH AMERICA, INC.
