Removal and Installation: Removal

1. Remove air duct (inlet). Refer to Exploded View .
2. Remove hoodledge cover (RH) and cowl top cover (RH). Refer to Exploded View .
3. Remove air cleaner body (bank 1). Refer to Exploded View .
4. Remove clip of water hose 1 installed to ECM bracket.
5. Disconnect the ECM harness connectors. Refer to HARNESS CONNECTOR (LEVER LOCKING TYPE) in Harness Connector .

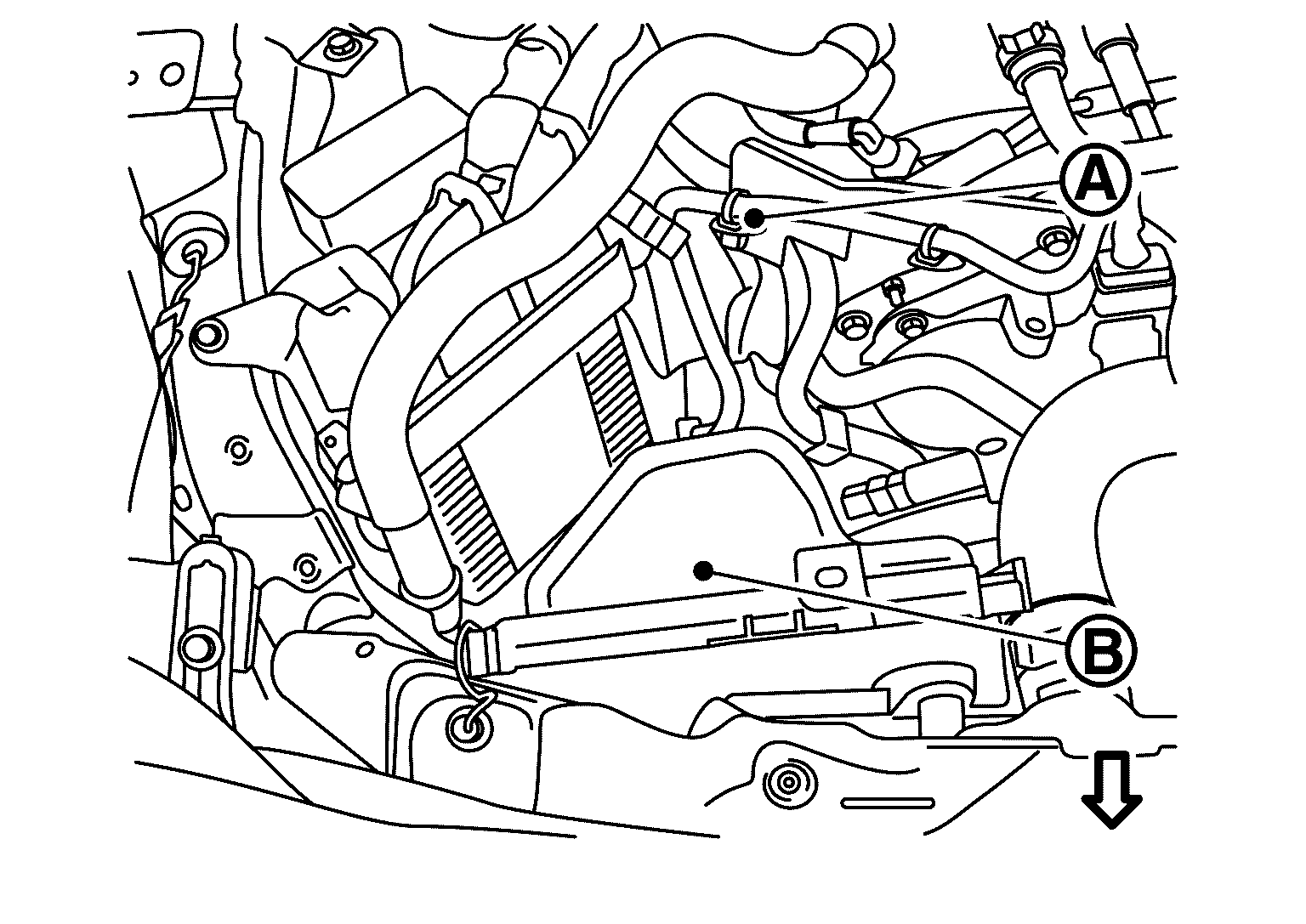

6. Disconnect harness (A) installed to air cleaner cover (bank 1) (B) and move air cleaner cover (bank 1) to secure work space.

Courtesy of NISSAN NORTH AMERICA, INC.

• Remove bracket nut of water pipe installed to ECM bracket.
• NOTE: Do not bend water hose 1 forcibly.
• Remove the bolts of the ECM bracket.
• Remove the ECM assembly from the vehicle.
• Remove the ECM from the bracket.
