Engine Lubrication System Schematic

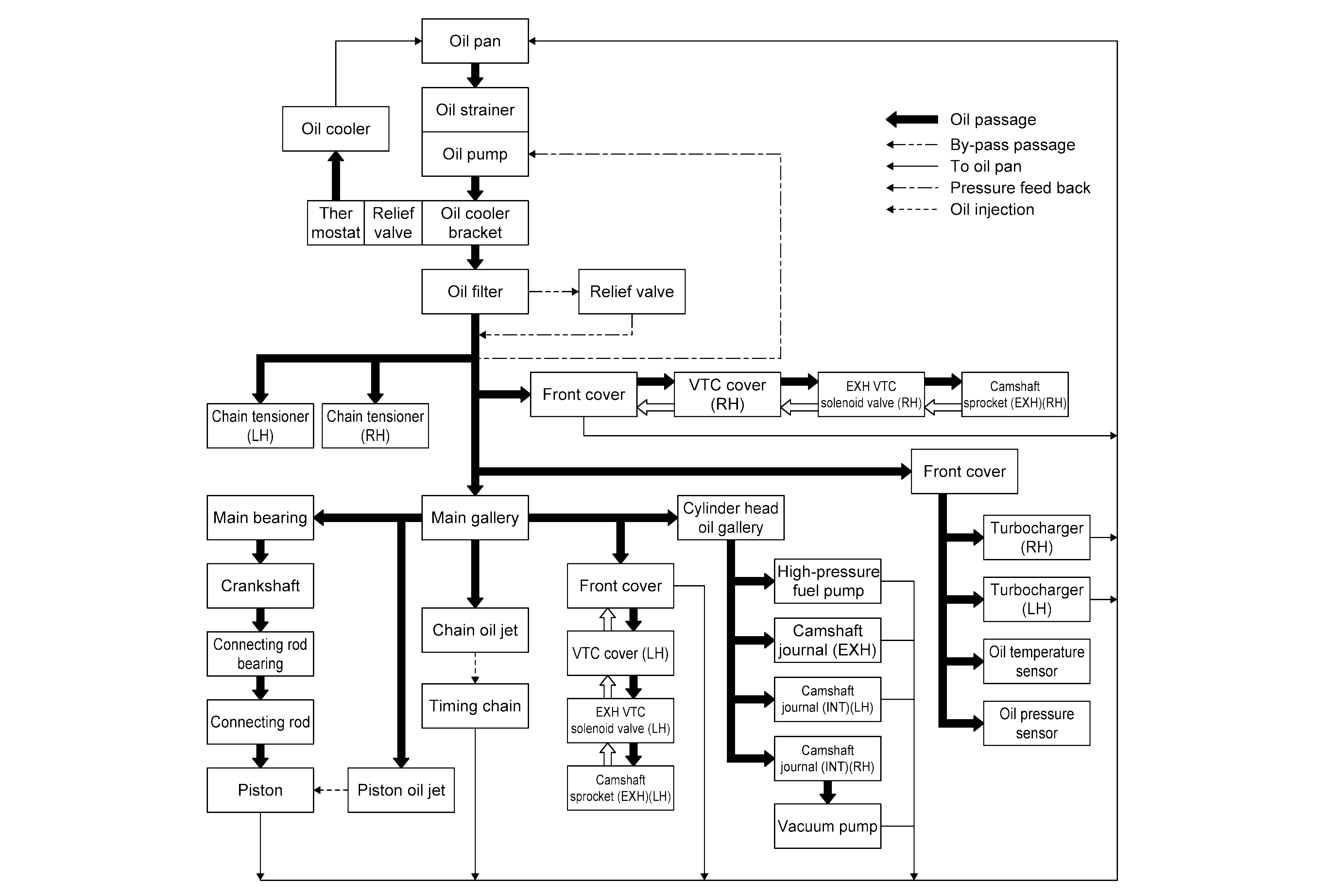

Fig 1: ENGINE OIL COOLER AIR COOLING TYPE

Courtesy of NISSAN NORTH AMERICA, INC.

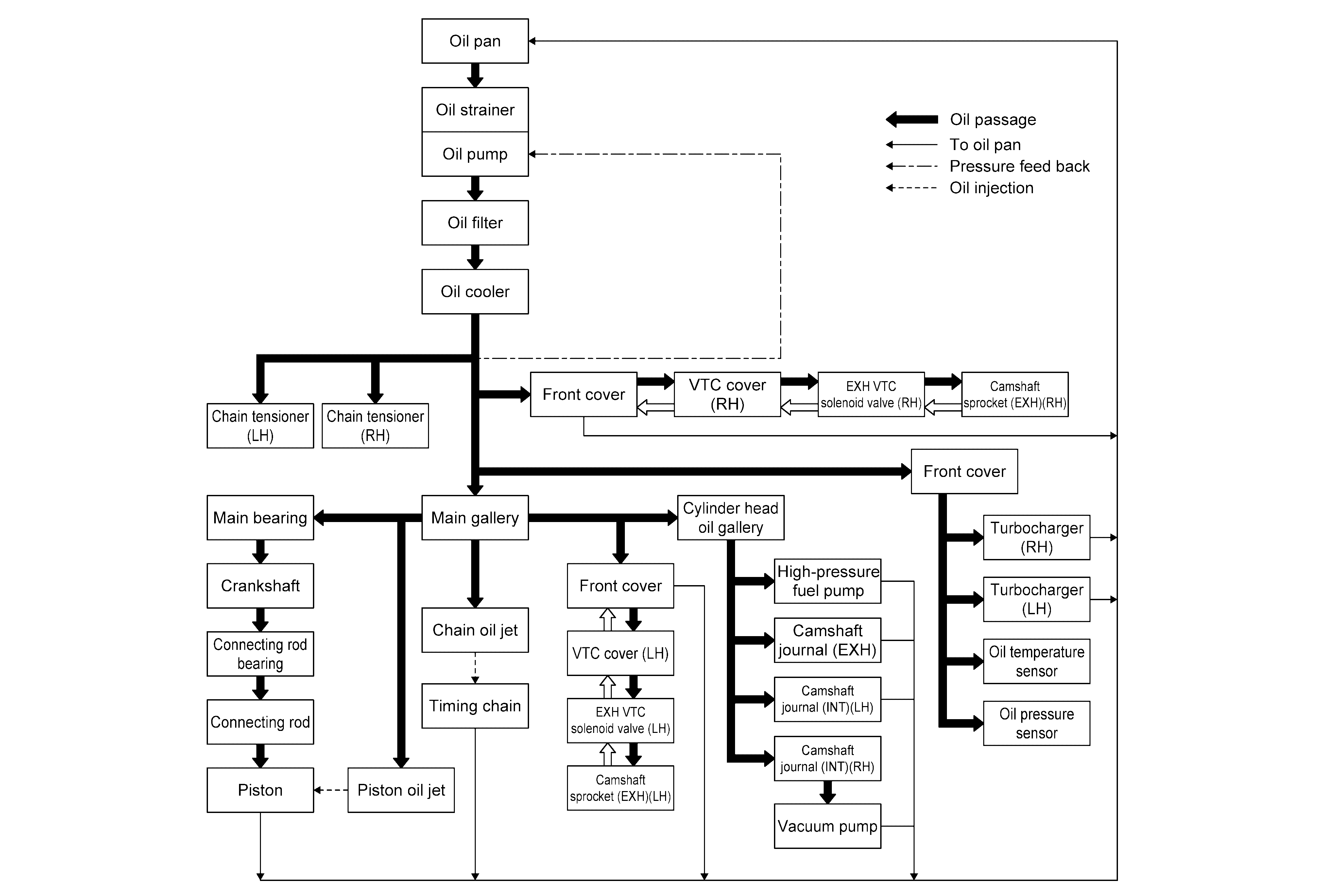

Fig 2: ENGINE OIL COOLER WATER COOLING TYPE

Courtesy of NISSAN NORTH AMERICA, INC.
