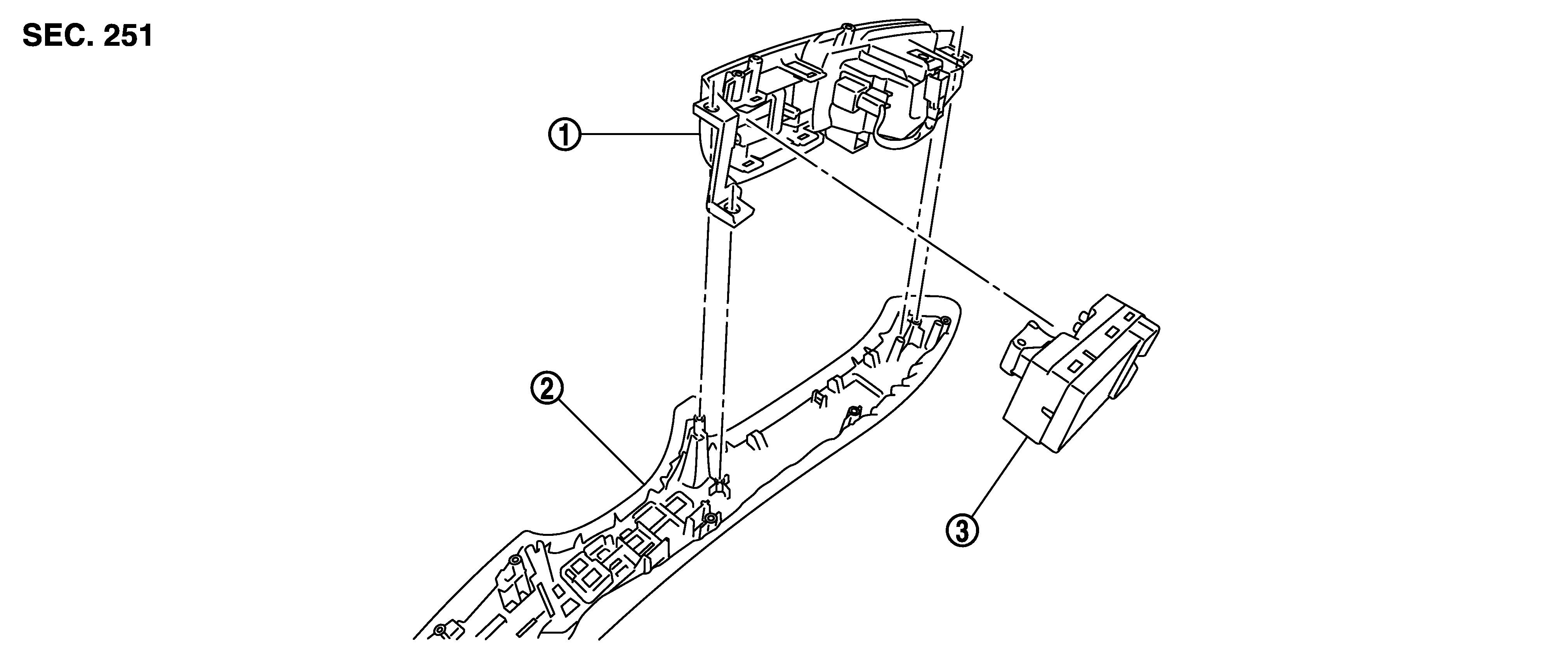

Exploded View

GNSJMKIA4951Z-951

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Power window switch finisher

2.

Rear armrest

3.

Rear power window switch
